Product Description:

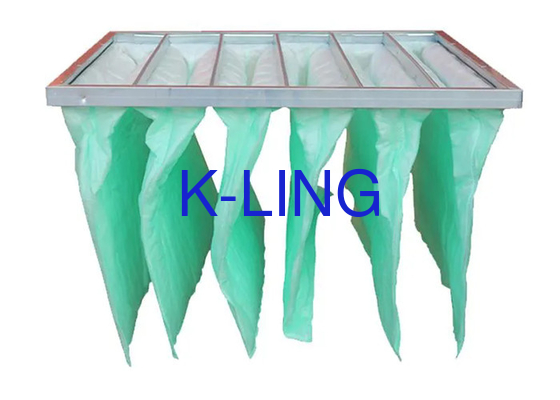

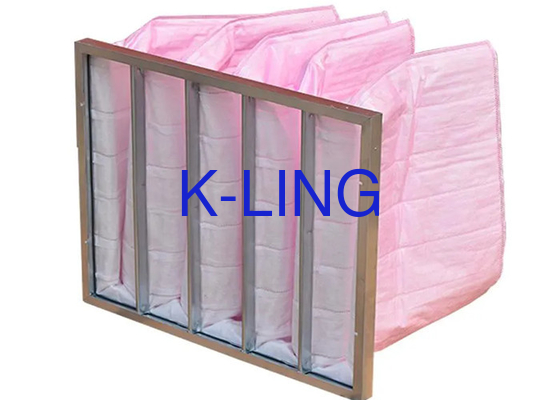

The Pocket Air Filter is a high-quality air filtration product designed to enhance the performance of air conditioning systems in various settings. This filter features a media made of synthetic fiber, renowned for its excellent filtration capabilities and durability.
The working principle of the bag air filter mainly includes the following mechanisms:
Inertial collision: Large particles directly impact the surface of the filter bag due to inertia and are trapped.
Interception: Smaller particles are intercepted by filter bag fibers.
Diffusion: Very small particles are trapped because Brownian motion increases the chance of contact with the fibers.
Electrostatic adsorption: Some filter bag materials have electrostatic characteristics, which can enhance the filtration effect.
Air enters the filter through the inlet, particulate matter is trapped by the filter bag, and clean air is discharged through the outlet
Technical Parameters:
| Final Resistance |
100-250Pa |
| Filter Rating |
Medium Filter |
| Shape |
Square |
| Filter Type |
Multi Pockets |
| Condition |
Pocket Filter |
| Bag Material |
Non Woven |
| Filter Efficiency |
Arrestance 95% |
| Efficiency |
F5,F6,F7,F8,F9 |
| Humidity |
80% |
| Efficiency |
G3,G4,F5,F6,F7 |
Characteristics and advantages
Efficient filtration: It can effectively capture larger particles, and the filtration efficiency is between 40%-95%.
Large filter area: Increase the filter area through folds and other designs to extend the service life of the filter bag.
Low resistance loss: Design optimization to reduce air flow resistance and ensure smooth air circulation.
Easy maintenance: the filter bag is simple to replace and can be cleaned or replaced regularly according to the use.
Application scenarios
Bag air filters are widely used in many fields:
Industrial field: Used in factory workshops, flue gas treatment, etc., to remove dust and smoke in the air.
Commercial buildings: Used in central air-conditioning systems and ventilation systems to provide clean indoor air.
Health care: In hospitals, clinics and other places to prevent the spread of bacteria and viruses.
Food processing: To ensure that the food production environment is clean, to prevent food contamination
