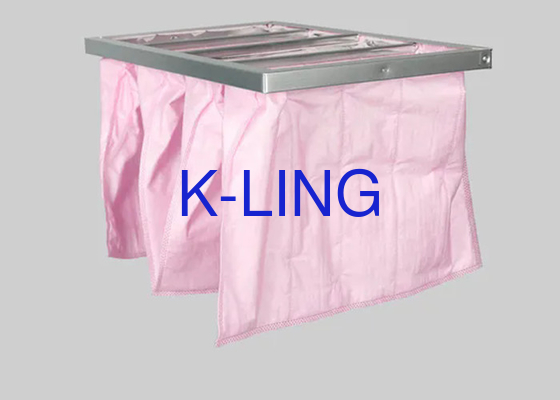

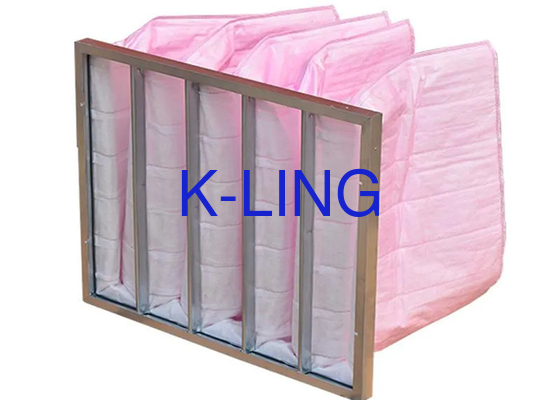

Product Description:
The bag filter is a filter equipment that uses the filter bag as the filter medium. Through the pore structure of the filter bag, the solid particles and impurities in the fluid are trapped on the surface or inside the filter bag, so as to achieve fluid purification. According to the different filter objects, bag filter can be divided into liquid bag filter and air bag filter.
Major component
The filter bag is the core component of the bag filter, usually made of non-woven fabric, polyester fiber, nylon, glass fiber and other materials. The filter bag aperture size determines the filtration accuracy, generally ranging from a few microns to several hundred microns.
The shape of the filter bag is diverse, common cylindrical, oval, etc., and its surface area is large, which can provide higher filtration efficiency and dust capacity.
The filter housing is usually made of metal or plastic and acts as a support and protection for the filter bag. The interior of the housing is designed with a fluid channel to ensure that the fluid can pass evenly through the filter bag.
The sealing device is used to prevent fluid from leaking through the gap between the filter bag and the housing during filtration. Common sealing methods include sealing rings, gaskets, etc.
The support frame is used to hold the filter bag and prevent the filter bag from deformation or damage under fluid pressure. The support frame is usually made of wire mesh or plastic skeleton.
Technical Parameters:
| Shape |
Square |
| Efficiency |
G3, G4, F5, F6, F7 |
| Bag Material |
Non Woven |
| Condition |
Pocket Filter |
| Filter Type |
Multi Pockets |
| Filter Rating |
Medium Filter |
| Shielding Performance |
80dB, 90dB, 100dB, 110dB |
| Humidity |
80% |
| Final Resistance |
100-250Pa |
| Filter Efficiency |
Arrestance 95% |
Advantage
High filtration efficiency: can effectively remove small particles in the fluid, high filtration accuracy.
Large dust capacity: the filter bag has a large surface area, which can accommodate more impurities and extend the service life.
Compact structure: compact design, small space, easy to install and maintain.
Wide range of application: suitable for a variety of fluids and different particle size filtration.
