Color: | Yellow/ White/ Pink | Feature: | Chemical Resistance |
---|---|---|---|
Type: | Bag Air Filter | Other Name: | Pocket Air Filter |
Application: | Clean Air Conditioning Unit | Original: | China |
High Light: | Synthetic Fiber Air Conditioning Bag Filter,Washable Air Conditioning Bag Filter |

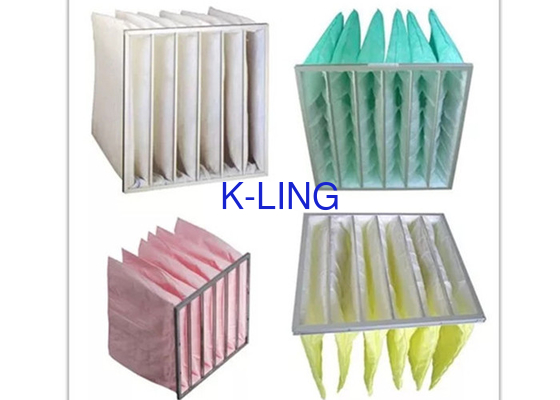

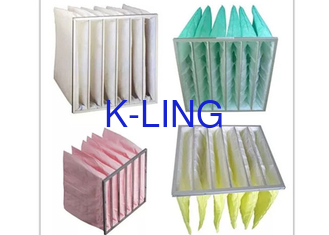

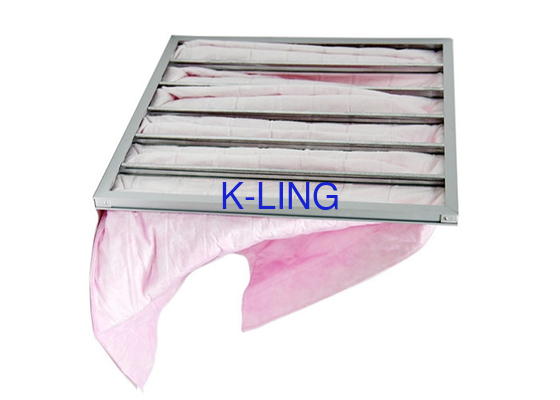

Medium Efficiency Washable Synthetic Fiber Air Conditioning Bag Filter
Features
Frame | Frame Extruded anodized Aluminium profile/G1,21 mm header frame |
Media | Melt-blown super fine Glass Fibre,V-shape pockets |
Construction | |
Filtration Grade | Medium |
Max working temperature | ≤ 90℃ |
Humidity | ≤ 95% RH |
Efficiency | F5(EN779), 40%-60%/ F6 (EN779), 60%-80%/ F7 (EN779), 80%-90%/ F8 (EN779), 90%-95% |
Dimensions
**Customized size is available
Model | (Width×Height×Depth)mm | Air flow m3/h | Efficiency( %) | Number of Bags |
KEL592-760-8D | 592*592*760 | 3200 | 80~85 | 8 |
KEL592-760-10D | 592*592*760 | 4000 | 10 | |
KEL495-295-610-8D | 495*295*610 | 1300 | 7 | |
KEL495-495-610-8D | 495*495*610 | 2200 | 7 | |
KEL592-295-610-10D | 592*292*610 | 1600 | 10 | |
KEL592-495-610-10D | 592*495*610 | 2700 | 10 | |
KEL592-592-610-8D | 592*592*610 | 2600 | 8 | |
KEL592-592-610-10D | 592*592*610 | 3200 | 10 | |
KEL592-592-380-12D | 592*592*380 | 2400 | 12 | |
KEL592-760-8D | 592*592*760 | 3200 | 90~95 | 8 |
KEL592-760-10D | 592*592*760 | 4000 | 10 | |
KEL495-295-610-8D | 495*295*610 | 1300 | 7 | |
KEL495-495-610-8D | 495*495*610 | 2200 | 7 | |
KEL592-295-610-10D | 592*292*610 | 1600 | 10 | |
KEL592-495-610-10D | 592*495*610 | 2700 | 10 | |
KEL592-592-610-8D | 592*592*610 | 2600 | 8 | |
KEL592-592-610-10D | 592*592*610 | 3200 | 10 | |
KEL592-592-380-12D | 592*592*380 | 2400 | 12 |
Application
Pocket Air Filters can be used as main filter for commercial and industrial ventilation system. It can be used on cleanroom MAU system, automotive industry, hotel and office building.
