Home ProductsAir Shower Tunnel

T Type Movable Class 1000 Air Shower Tunnel For Clean Room And Workshop

Certification
China KeLing Purification Technology Company certification
China KeLing Purification Technology Company certification
Customer Reviews
Keling had successfully supplied us following products on 25 Oct.2017 against PO NO.M170807; Their supplied Air Filters have been working satisfactorily since installation.We are satisfied with their products.

—— SIMPOR PHARMA

Since we do coopertae with them, they always offer good quality and keep the delivery on time to us, we do appreicated for their kind support !

—— Nasir

This is to certify that we bought U type air shower tunnel, Air Shower and HEPA filter, Secondary air filter ,perfilter for our project from KeLing Purification Technology Co. Ltd, 3C01 Tian Feng Commerce Square, Mid Building, No. 133, Baiyun AV, Baiyun Disctrict , Guangzhou , GuangDong, China against Contract No: 2014/4119005942 in October 22, 201

—— IATEC,Argentina

Product arrived faster than expected and they sent something special in addition to what I ordered. Nice people and fast service!

—— Mohammed Saad

I'm Online Chat Now

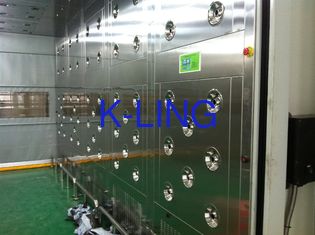

T Type Movable Class 1000 Air Shower Tunnel For Clean Room And Workshop

T Type Movable Class 1000 Air Shower Tunnel For Clean Room And Workshop
T Type Movable Class 1000 Air Shower Tunnel For Clean Room And Workshop T Type Movable Class 1000 Air Shower Tunnel For Clean Room And Workshop

Large Image :  T Type Movable Class 1000 Air Shower Tunnel For Clean Room And Workshop

Product Details:
Place of Origin: CHINA
Brand Name: K-LING
Certification: CE
Model Number: KEL-ASP1300T-7T SERISE
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 15 WORKING DAYS AFTER DEPOSIT
Payment Terms: T/T, LC AT SIGHT
Supply Ability: 50UNITS/MONTH
Detailed Product Description
Name: Class 1000 Air Shower Tunnel Door: Automatic PVC Roll Slid Door
Outside Material: Steel With Power Coated Inside Material: Stainless Steel 304 Or 201
Blowing Way: Three Directional Blowing Interlocker: Electric Inter Locker For Both Door
Purification Rank: Class1000 Other Name: Cleanroom Air Shower Tunnel
High Light:

air shower system

,

biological clean room

 T Type Movable Class 1000 Air Shower Tunnel For Clean Room And Workshop





Quicky detail



external size :1300x7500x2200mm

internal size : 790x7360x2000mm

Purification rank: Class100

HEPA filter efficiency: 99.999%@0.3um

Personal per cycle: 20-50 person

SUS nozzle: 80-100pcs

Blower way: three size blower

Air speed :>25m/s

Power: 380V/50HZ



Keling Purification Technology Co., Ltd engaged in air purification field for many years, product have clean room equipment , HVAC air filter, clean room product such as clean room air shower, Air shower room for GMP /QS Standard, stainless steel air shower room, Pass box, pass thru, Laminar flow bench, Hard wall clean room, soft wall clean room, HEPA filter unit series, clean shed, clean booth, laminar flow booth Dispensing booth, sampling booth, down flow booth, fan filter unit(EBM Fan), static pass boxes, medical clean pass boxes, pharmaceutical static pass boxes,Mini-pleats ULPA/HEPA air filter, V-cell filter, pocket air filter, panel air filter, bag air filter,  z-line filter, and so on .





Introduction :



Air  Shower tunnel is supporting equipment for clean room and workshop. It can remove the dust adhering of the operator/Intelligent  man-machine dialogue interface makes operation chain, such as real-time monitoring state oods and block the unclean air into the working area as an air lock.

Air Shower tunnel can be divided into two kinds for different purpose,AS for operator and AS for goods. It has  various modes of showering from single-side,double-side or top. It is also equipped with various kinds of doors in manual,in auto or shutter etc.



operating features :





1 :Microectronics control system with LED display for the shower time.

2:  the air shower duration time adjustable from 0-99second.

3:  Infrared ray inductor for inside personal shower automatic from three side

4:  Human being voice remind of user progress in chamber.

5:  Emergency switch help you out of trouble, Comply with CE Test

6:  Revolving door or sus304 steel frame with half glass swing door for your choose .



Parameter :



                                  KEL-AS1300T-7T  Air Shower Tunnel

MODEL

KEL-AS1300T-7T

External size (mm)

(WXDXH)

1200x7500x2180

Work zone (mm)

(WXDXH)

800x7360x1910

Persons per cycle

   10-50 person

Air shower Duration

Factory set at 12 second (adjustable)

 Air shower direction

Three side with blowing

Material

(Option)

1: Entirety Sus304.

2: Entirety sus201.

3: External is steel with power coated, Internal is SUS304.

4: External is steel with power coated. Internal is SUS201.

Control system

1: PCL control system with LED display for the shower time.

2: The shower time from 0-99second. (Adjustable).

3: Infrared ray inductor for inside personal shower automatic.

4: Human voice prompt system.

5: with CE remark

The power of Fan

380V/50HZ/750W

(6 sets)

Air flow of fan(m3/h)

  1300m3/h

Fan run (r/min)

2800r/min

Nozzle in stain less steel

   100 pcs

Wind speed(m/s)

 23-29m/s

Noise level(dB)

   <62dB

LED Fluorescent Lamp

20wx6



HEPA Filter

Size(mm)

630X630X69mm

Efficiency

99.99%@0.3um

Air velocity

1000(m3/h)

Initial resistance(pa)

 <220pa



Pre-filter

Size(mm)

 775x380x17

Efficiency

 75% @ 0.5um

Resistance(pa)

<30 Pa

Electrical

Power supply

   380v/50Hz or 380v

   Net power(kw)

     0.75X6 kw

Customer’s design is available.





Factory test:





All of equipment is individually factory tested for safety and performance

in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.

Factory test include:

-- functional test and visual inspection

-- electrical safety tests

-- air velocity testing

-- purification rank test (if need)





Warranty:



Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.





Consumable parts illustration:



1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.



2: HEPA filter: each one should be replacement in each half and one years.



Why you choose K-LING Company ?



Professional sales:

• We value every inquiry that you sent to us, ensure quick competitive offer.

• We cooperate with customer to bid tenders. Provide all necessory docuement.

• We are a sales team, with all techinical support from engineer team





Punctual delivery time:



• Production / inspection report provide before shipment

• Shipping notice or insurance for you when your goods is shipped.

After sales service:

• We respect your feed back after receive the goods.

• We provide one year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.





Payment Term:



 T/T in advance, 30% before place the order, 70% when you see copy BL

Or 30% T/T in advance before place the order, 70% LC at sight.
