Product Details:
Payment & Shipping Terms:
|
Material: | SUS201/304/316 | Auto Door: | Fast Air Shutter Door |
---|---|---|---|
Conveyor Line: | Auto Matic Roller Conveyor Line | Control System: | Siemens PLC |
Blowing Way: | 3 Side | Control Program: | Personal Tailor |
Power: | 380V/50HZ | Capacity: | 1000kgs |
Name: | Automatic Door Cargo Air Shower | ||
Highlight: | air shower system,electronics clean room |

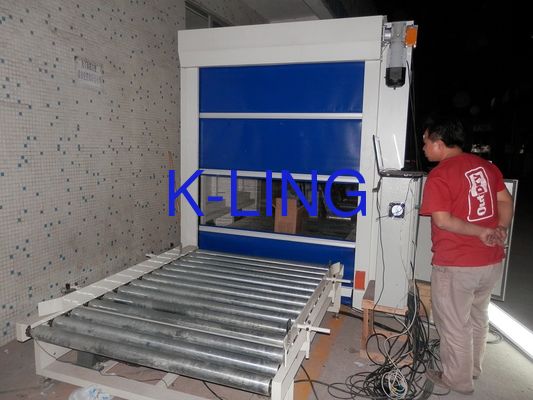

Tunnel Conveyor Air Shower Type Pass Box Auto Roll Conveyor Line Goods Air Shower
Specification:
1. Product function automation
2. Functional intelligence
3. All stainless steel
4. Mechanical or electronic interlocks on both sides
5. Stainless steel nozzle
The work area adopts 304 stainless steel plate, smooth and wear-resistant
The stainless steel nozzle rotates 360 degrees
Using microwave probe, and can be equipped with another safe eye
Fully automatic inductive moving door
High efficiency centrifugal shower fan with high air volume and low noise
It is a pass box/goods air shower that removes the surface contamination of goods by using air flow win higher wind speed from air shower.
It is designed according to the dimensions of the goods. In addition, the convey or and the shutters on both sides are interlocked and do not open at the same time.
Our designers are very willing to service for you.
Our air shower's advantages and functions are as follows:
1) Material: Stainless Steel SUS304/201/cold rolled steel coated;
2) Electronic Interlock. When A door opens, B door is locking. A, B doors can not open when blowing;
3) Emergency off button is installed according to customers' needs in case of emergency happens. Once press, two doors open;
4) Color LCD screen, touch-point switch to control blowing time and lamp time. It shows reminder of HEPA filter replacement when needed;
5) Infrared sensor automatic blowing, automatic stop;
6) Two-side blowing, left and right, stainless steel nozzles. Three-side blowing can be provided according to customers' needs;
7) Germany Dorma door closer, stable. Many stories also choose this type as their door closer;
8) 360-degree rotatable nozzles are installed according to customers' needs to keep high efficiency for blowing off particles from personnel;
9) UV lamp is optional.
Specifications
Product name | A single blow | A double blow | Double double blow | Air shower |
Outside Dimension | 1290*1000*2050 | 1290*1000*2050 | 1290*2000*2050 | 1590*5000*2050 |
Air Shower Aera(mm) | 790*860*1910 | 790*860*1910 | 790*1860*1910 | 790*4860*1910 |
Capacity: | 1-2People | 1-2People | 2-4People | The passage |
Number Of Nozzle | 6PCS | 12PCS | 24PCS | 72PCS |
The wind speed | ≥25m/s | ≥25m/s | ≥25m/s | ≥20m/s |
Noise | <62 | <62 | <62 | <62 |
HEPA Filter | 610*610*120*1pcs | 610*610*120*2pcs | 610*610*120*4pcs | 610*610*120*8pcs |
Efficiency | 99.99%@0.3 | 99.99%@0.3 | 99.99%@0.3 | 99.99%@0.3 |
The power of fan | 750*1pcs | 750*2pcs | 750*4pcs | 750*8pcs |
Fluorescent lamp power | 20*1pcs | 20*1pcs | 20*2pcs | 40*4pcs |
Power Supply | 380V/50HZ | 380V/50HZ | 380V/50HZ |
380V/50HZ
|
