Payment & Shipping Terms:
|Material:||Inside Is Stainless Steel 304 ,outside Is Steel With Power Coated||Auto Door:||PVC Roller Door|
|Conveyor Line:||Steel With Power Coated Fram And Zin Roller||Control System:||DELTA PLC|
|Blowing Way:||3 Side||Control Program:||Personal Tailor|
|Power:||380V/50HZ||Conveyor Line:||Auto Matic Roller Conveyor Line|
|Capacity:||1000kgs||Name:||PLC Control Air Shower Tunnel|
air shower system,
electronics clean room

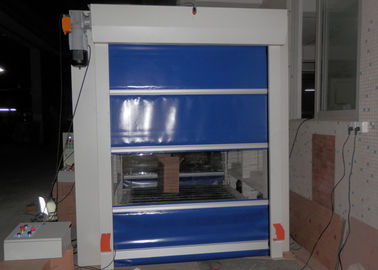

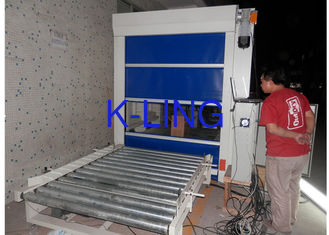

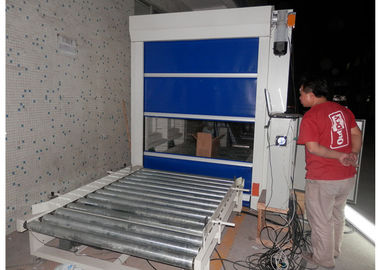

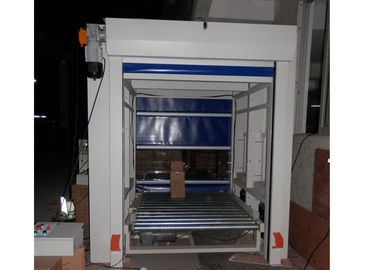

PLC Control Air Shower Tunnel With Conveyor Roller Line / Auto Slide Door
External size : 2110x2380x2400mm
Internal size : 1460x1650x1900mm
Material: External is steel with power coated internal is stainless steel 304
Both side with Auto Roller Door
air speed: more than 24m/s
Control system : PLC control system
Compact product : Auto Conveyor Line
The follow draw illustration :
1: Roll door mechanism
2: Air shower nozzle
3: HEPA air filter
6: control box for the roll door
7: purification light
Control program: The pallet pass box line can be working in both direction whenever it is. .
It can put out full pallet and then put only one empty pallet
From clean room to dirty room:
A working press the button1, the D1 will be open,
He left the pallet with finished goods on the conveyor and push the button 1 again for the D1 closed. (the D1 can’t close if the sensor 1 not detected any thing).
After D1 closed completely, the D2 open, meanwhile the conveyor1 and conveyor2 move the pallet goods out of the pass box until the sensor 2 detected the pallet the conveyor stop working. The door2 closed.
Note: worker take off the pallets from conveyor 2, then the sensor 2 can’t detect anything, during this time, if someone press the button1 or 2, there is no any respond.
From dirty room to clean room:
A worker left the empty pallet on the conveyor, he press the button2, the D2 will be open and the conveyor will be take the empty pallet to the inside of pass box, when the sensor 3 detects the pallet, the conveyor stop move, the D2 closed and the self-clean system blowing 15s with ionized air .15s later the D1 open automatic.
Note: worker take off the pallets from convyor1, then the sensor1 or3 can’t detect anything, during this time, if someone press the button1 or 2, there is no any respond,
until the door 1 closed , the new cycle will be start again.
Note: 1: The PLC control system not including the touchable screen.
2: the button1 or button 2 can fix at any place that you wanted
1: Document :
A: Document for custom clear: 1 sets
B: Assemble draw : 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Extra Free Spare Part so that you can replacement in future by yourself :
HEPA air filter +Pre-filter : 1 sets for air shower pass box
Note: HEPA air filter should be replacement in half and one year.
Pre-filter should be replacement in each 6 months, but it can refresh no more than 3 times
3: Delivery time: 25 working days after we get the deposit.
4: Payment term: 30 T/T in advance, 70% before shipment.
5: The guarantee time is one year excluding consumable parts and Accessories.
6: The price validity time is 30days.
PLC Control system for air shower pass box and roller conveyor line :
