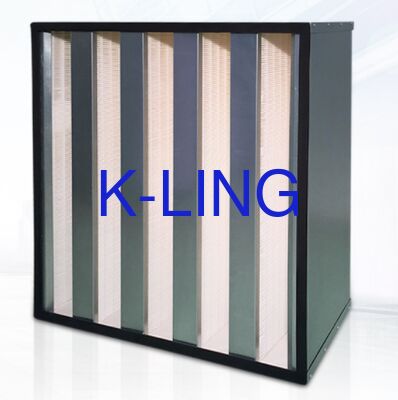

Mini-Pleated HEPA Filter with H13 - U15 Efficiency for ≥ 0.3um Particles in 1175 x 575 x 69 mm Size

Mini-Pleated HEPA Filter with H13 - U15 Efficiency for ≥ 0.3um Particles in 1175 x 575 x 69 mm Size
Mini-Pleated HEPA Filter with H13 - U15 Efficiency for ≥ 0.3um Particles in 1175 x 575 x 69 mm Size
Mini-Pleated HEPA Filter with H13 - U15 Efficiency for ≥ 0.3um Particles in 1175 x 575 x 69 mm Size Mini-Pleated HEPA Filter with H13 - U15 Efficiency for ≥ 0.3um Particles in 1175 x 575 x 69 mm Size Mini-Pleated HEPA Filter with H13 - U15 Efficiency for ≥ 0.3um Particles in 1175 x 575 x 69 mm Size

Large Image :  Mini-Pleated HEPA Filter with H13 - U15 Efficiency for ≥ 0.3um Particles in 1175 x 575 x 69 mm Size

Product Details:
Brand Name: KELING
Certification: CE
Model Number: KEL-HF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Plywood Packing
Delivery Time: 10 Working Day
Payment Terms: T/T
Supply Ability: 3000
Contact Now

Mini-Pleated HEPA Filter with H13 - U15 Efficiency for ≥ 0.3um Particles in 1175 x 575 x 69 mm Size

Description
Fiher Particles: ≥ 0.3um Initial Resistance: Less Than 200 Pa
Thickness: 69/78/150/220 Other Name: Cleanoom Terminal Filtration Unit
Faceguard: Diamond Shaped Metal Protective Net Gasket: PU /EVA Material/ Gel Sealant
Partition: Hot Metl Adhesive Product Name: Mini-Pleated HEPA Filter
Highlight:

H13 - U15 Efficiency HEPA Air Filter

,

≥ 0.3um Particles Cleanroom Terminal Filtration Unit

,

1175 x 575 x 69 mm Size Mini-Pleated HEPA Filter

Mini-plated V Shape HEPA Filter with Lower Initial Resistance
Suitable for clean room air management and filtration, this innovative filter design maximizes efficiency while reducing energy consumption.
Key Advantages
The mini-pleats V-shape HEPA filter increases the filtration surface area by 40-60% within the same frame size. This lowers initial air resistance to 90-200 Pa at 0.45 m/s face velocity, reducing energy consumption by up to 40%.
Thermal and Chemical Resilience
Withstands continuous operation at ≤ 80°C (up to 250°C for specialized models) and resists humidity (≤100% RH). Materials like borosilicate glass fiber minimize outgassing, ideal for semiconductor/pharma applications.
High Dust-Holding Capacity
Deep pleats (40-75 mm) trap particulates efficiently, extending service life to 12-18 months—ideal for high-particulate settings like manufacturing.
Corrosion-Resistant Framing
Anodized aluminum or galvanized steel frames with powder-coated guard nets protect against chemical exposure and mechanical stress.
Product Features
  • Mini-pleated V-shaped HEPA filters excel through structural efficiency (self-supporting pleats), energy economy (low resistance), and adaptive durability (custom frames/temperature tolerance).
  • Their design balances high particulate capture with lifecycle cost savings, making them pivotal in critical environments like semiconductor fabs.
  • For technical validations, refer to ISO 14644-3 leak testing protocols.
Mini-Pleated HEPA Filter with H13 - U15 Efficiency for ≥ 0.3um Particles in 1175 x 575 x 69 mm Size 0
Technical Specifications
Product Name Mini-Pleated V Shape HEPA Filter
Other Name Cleanroom Terminal Filtration Unit
Faceguard Diamond Shaped Metal Protective Net
Thickness 69 / 78 / 150 / 220 mm
Gasket PU / EVA Material / Gel Sealant
Efficiency H13 - U15
Filtering Media Glassfibre Media
Filter Particles ≥ 0.3 μm
Partition Hot Melt Adhesive
Size 1175 x 575 x 69 mm
Mini-Pleated HEPA Filter with H13 - U15 Efficiency for ≥ 0.3um Particles in 1175 x 575 x 69 mm Size 1
Customization Options
  • The anodized aluminum frame resists corrosion from cleaning agents like isopropyl alcohol and peracetic acid used during maintenance cycles.
  • Hydrophobic borosilicate glass fiber media prevent moisture absorption, ensuring stable performance under high-humidity conditions (up to 60% RH) common in EUV lithography areas.
  • Each filter undergoes rigorous DOP/PAO scanning per IEST-RP-CC034.1 to verify integrity before installation.
  • In high-throughput fabs producing 3D NAND or DRAM, the extended dust-holding capacity of V-pleat filters allows service intervals of 12-18 months, reducing downtime and contamination risks during changeouts.
  • Their modular compatibility with standard FFU grids enables rapid deployment and scalability during facility expansions.
  • Low outgassing materials ensure no volatile organic compounds (VOCs) interfere with sensitive photoresist chemistry.
  • As node sizes shrink below 3 nm, particle control becomes exponentially more critical, making V-shaped HEPA filters a foundational element in yield.
