Mini-Pleated HEPA Air Filter with 1175x575x69mm Size, Less Than 200 Pa Initial Resistance and ULPA U15/U17 Standards for Cleanroom Terminal Filtration

Mini-Pleated HEPA Air Filter with 1175x575x69mm Size, Less Than 200 Pa Initial Resistance and ULPA U15/U17 Standards for Cleanroom Terminal Filtration
Mini-Pleated HEPA Air Filter with 1175x575x69mm Size, Less Than 200 Pa Initial Resistance and ULPA U15/U17 Standards for Cleanroom Terminal Filtration
Mini-Pleated HEPA Air Filter with 1175x575x69mm Size, Less Than 200 Pa Initial Resistance and ULPA U15/U17 Standards for Cleanroom Terminal Filtration Mini-Pleated HEPA Air Filter with 1175x575x69mm Size, Less Than 200 Pa Initial Resistance and ULPA U15/U17 Standards for Cleanroom Terminal Filtration Mini-Pleated HEPA Air Filter with 1175x575x69mm Size, Less Than 200 Pa Initial Resistance and ULPA U15/U17 Standards for Cleanroom Terminal Filtration

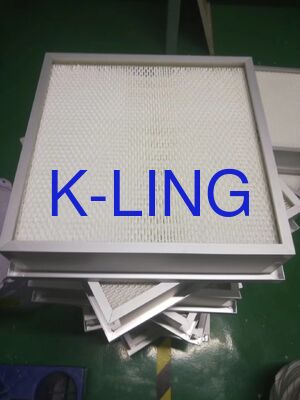

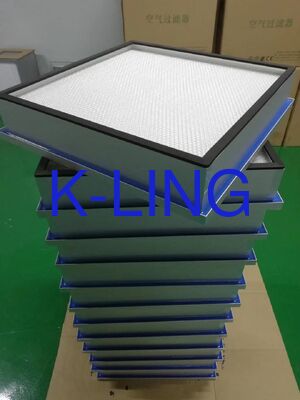

Large Image :  Mini-Pleated HEPA Air Filter with 1175x575x69mm Size, Less Than 200 Pa Initial Resistance and ULPA U15/U17 Standards for Cleanroom Terminal Filtration

Product Details:
Brand Name: KELING
Certification: CE
Model Number: KEL-HF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Plywood Packing
Delivery Time: 10 Working Day
Payment Terms: T/T
Supply Ability: 3000
Contact Now

Mini-Pleated HEPA Air Filter with 1175x575x69mm Size, Less Than 200 Pa Initial Resistance and ULPA U15/U17 Standards for Cleanroom Terminal Filtration

Description
Thickness: 69/78/150/220 Size: 1175x575x69mm
Frame: Galvanized/aluminum Fiher Particles: ≥ 0.3um
Product Name: Mini-Pleated HEPA Filter Filtering Media: Glassfibre Media
Gasket: PU /EVA Material/ Gel Sealant Initial Resistance: Less Than 200 Pa
Highlight:

1175x575x69mm Size HEPA Air Filter

,

Less Than 200 Pa Initial Resistance Mini-Pleated HEPA Filter

,

ULPA U15/U17 Cleanroom Terminal Filtration Unit

HEPA Air Filter Designed to Capture Fine Particles 0.3um and Above Ideal for HVAC Systems
Product Description
The Mini-Pleated HEPA Filter is a high-performance air filtration solution designed to meet the stringent requirements of cleanroom environments and advanced air handling systems. With a size of 1175x575x69mm, this filter is engineered to fit seamlessly into a variety of applications, including Air Handling Units (AHU), HEPA Filter Boxes, Fan Filter Units, and cleanroom terminal filtration setups.
Ultra-High Filtration Efficiency
Captures ≥99.97% of particles ≥0.3 μm (HEPA H13/H14) and up to 99.999995% for ULPA U15/U17 standards, validated via MPPS (Most Penetrating Particle Size) testing.
Low Air Resistance
Optimized V-shaped filter pleats and absence of partitions reduce initial resistance to 90-200 Pa at 0.45 m/s face velocity, lowering energy consumption.
One of the standout features of this Mini-Pleated HEPA Filter is its versatile frame construction, available in galvanized steel or aluminum. Both materials offer exceptional durability and resistance to corrosion, ensuring a long service life even in demanding conditions.
Mini-Pleated HEPA Air Filter with 1175x575x69mm Size, Less Than 200 Pa Initial Resistance and ULPA U15/U17 Standards for Cleanroom Terminal Filtration 0
Features
  • Product Name: mini-pleats HEPA Air Filter
  • Thickness Options: 69mm, 78mm
  • Gasket Material: PU, EVA Material, Gel Sealant
  • Faceguard: Diamond Shaped Metal Protective Net
  • Other Name: Cleanoom Terminal Filtration Unit
  • Partition: Hot Melt Adhesive
  • Mini-plated HEPA filter design for enhanced filtration
  • High efficiency air filter suitable for various applications
  • H14 air filter rating ensuring superior particle capture
Technical Parameters
Product Name Mini-Pleated HEPA Filter
Filter Particles ≥ 0.3µm
Size 1175 x 575 x 69 mm
Initial Resistance Less Than 200 Pa
Other Name Cleanoom Terminal Filtration Unit
Application AHU, HEPA Filter Box, Fan Filter Unit, Cleanoom Terminal Filtration
Faceguard Diamond Shaped Metal Protective Net
Partition Hot Metal Adhesive
Filtering Media Glassfibre Media
Frame Galvanized / Aluminum
Applications
Semiconductor Manufacturing (ISO Class 1-3) Critical for fab environments where sub-0.1µm particles can ruin nanoscale circuits. ULPA U15/U17 filters (≥99.999995% @ 0.12µm MPPS) are standard, preventing yield loss in lithography and etching processes. Materials exhibit ultra-low outgassing to avoid chemical contamination.
Biopharmaceutical Production (GMP A/B) Ensures sterility in aseptic filling lines and bioreactor suites. H13/H14 filters (≥99.97-99.995% @ 0.3µm) with hydrophobic media prevent microbial ingress and biofilm growth. Validated via DOP/PAO testing per regulatory mandates.
