Product Details:
|
Control System: | PLC Control System | Filtration Step: | H14+F8+G4 |
---|---|---|---|
Door: | PVC Strip Curtian | Pressure Way: | Negative Pressure |
Other Name: | Dowflow Booth | HIM: | Touch Screen |
HEPA Filter: | Mini-pleat Type H14 | Air Speed: | 0.45m/s +_20% Adjustable |
Highlight: | anti-static dispensing booth,cross-contamination prevention booth,static-free dispensing workstation |

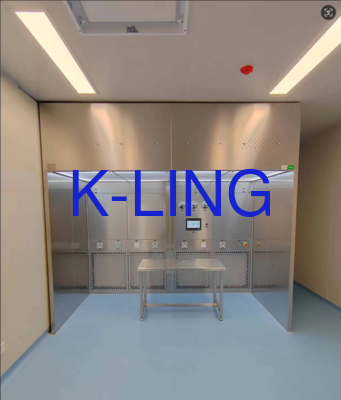

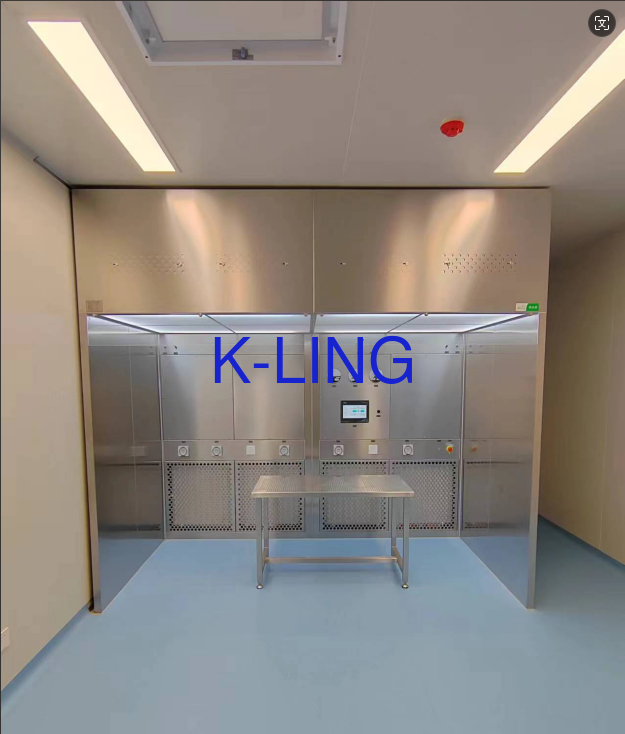

The Dispensing Booth, also known as a sampling booth, is a crucial piece of equipment commonly used in pharmaceutical factories for powder weighting applications. This booth provides a controlled environment for accurate and efficient dispensing of powders.
Equipped with advanced features, the Dispensing Booth is designed for both automatic and semi-automatic operations, catering to the varying needs of pharmaceutical production processes.
One notable attribute of the Dispensing Booth is its ceiling design, which can be configured with either a damping film or a diffuser plate. This design choice ensures proper containment and distribution of powders within the booth, minimizing the risk of cross-contamination and ensuring product quality.
For optimal performance, the Dispensing Booth is equipped with a powerful fan rated at 0.75KW, compatible with 380V/480V power supply and operating at 50/60HZ frequency in a 3-phase configuration. This fan provides efficient air circulation within the booth, maintaining a clean and sterile environment for powder handling.
Parameter | Specification |
---|---|
Air speed | 0.45m/s +/- 20% Adjustable |
Operation | Automatic Or Semi-automatic |
Ceiling | Damping Film Or Diffuser Plate |
Door | PVC Strip Curtain |
Control System | PLC Control System |
Purification Rank | ISO5 / Class 100 |
Name | Dispensing Booth / Sampling Booth |
HMI | Touch Screen |
Other Name | Downflow Booth |
Noise Level | ≤65dB |
Cosmetic production has high requirements for the purity of raw materials and the cleanliness of the production environment, and the weighing room in a cleanroom plays an important role in this process. Many cosmetic raw materials, such as active ingredients, fragrances, and pigments, are susceptible to contamination or may cause irritation to operators during weighing.
The negative pressure design of the weighing room prevents these raw material powders from spreading to other areas of the production workshop, protecting the health of operators. High-efficiency air filtration systems remove airborne contaminants, ensuring that raw materials remain uncontaminated during weighing and guaranteeing the quality of cosmetics.
At the same time, high-precision weighing equipment ensures accurate formulation ratios, resulting in stable cosmetic performance and quality. For example, when producing high-end skincare products, rare plant extracts require precise weighing. The cleanroom weighing room provides a clean and safe environment for this process, helping to enhance product quality and competitiveness.
