Sleant Polyurethane Adhesive V Cell Filter with High Dust Holding Capacity

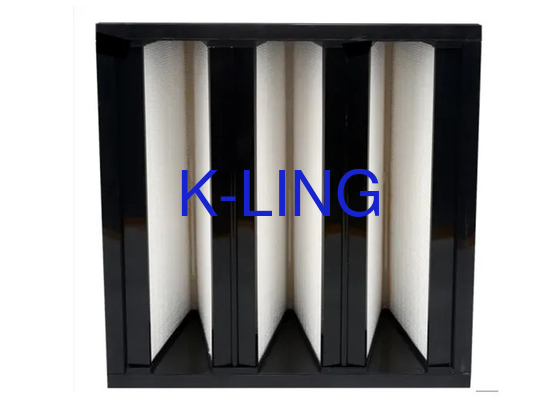

Large Image : Sleant Polyurethane Adhesive V Cell Filter with High Dust Holding Capacity

Product Details:

Brand Name:	KELING
Certification:	CE
Model Number:	KEL-VF

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Plywood Packing
Delivery Time:	10 Working Day
Payment Terms:	T/T
Supply Ability:	30000

Contact Now

Sleant Polyurethane Adhesive V Cell Filter with High Dust Holding Capacity

Description

Structure:	Pleated Panel Filter	Filtration Efficiency:	99.9%
Core Components:	Media	Dust Holding Capacity:	200-2400 G/㎡
Filtration Grade:	Hepa Filter	Sleant:	Polyurethane Adhesive
Final Pressure:	400pa	Operating Temperature:	Up To 200°F
Highlight:	Sleant V Cell Filter , Polyurethane Adhesive V Cell Filter

Product Description:

Use a diameter of 0.1um~5um super fine Glass fiber for media , that ensure the filters has lower pressure drop , more dust holding and longer service life. The fine fiberglass media pleated to some media packs, then several media packs and frame form a "V shape filter. The number of the "V" shape deter-mines the filter's media area so that it influence on filter service life and pressure drop.

Low pressure drop and high efficiency
Extended surface design ensures low resistance to airflow and reduce energy cost.
High velocities, variable air volumes high moisture
Light weight

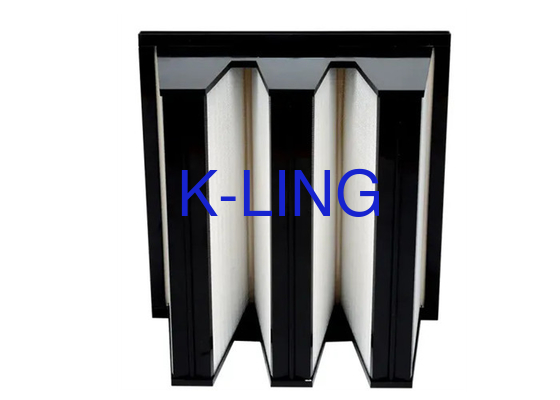

Sleant Polyurethane Adhesive V Cell Filter with High Dust Holding Capacity 0

Features:

Product Name: V Bank Filter
Material: Plastic Frame
Filtration Efficiency: 99.9%
Feature: Particle And Smell Remove
Operating Temperature: Up To 200°F
Warranty: 1 Year

Parameter

Nominal size W×H×D ( in.)	Actual size W×H×D ( mm)	Filter Rating (EN779:2012)	Air flow (m³/h)	InitialP.D. (Pa)	Recommended Final P.D.(Pa)
12×24×12	305×610×292×3V	H11	1700	180	≤600
24×24×12	610×610×292×6V		3400	180
24×24×12	610×610×292×4V		3400	200
12×24×12	305×610×292×3V	H13	1700	280
24×24×12	610×610×292×6V		3400	280
24×24×12	610×610×292×4V		3400	300
12×24×12	305×610×292×3V	H14	1700	280
24×24×12	610×610×292×6V		3400	280
24×24×12	610×610×292×4V		3400	300
★ Other sizes and air flow are available on request.

Packing and Shipping:

Product Packaging:

The V Bank Filter is carefully packaged in a sturdy cardboard box to ensure its protection during transportation. The filter is wrapped in a plastic cover to prevent any scratches or damage.

Shipping:

Orders for the V Bank Filter are processed within 24 hours of purchase. We use reliable shipping services to ensure that your product reaches you in a timely manner. Each filter is securely packed and labeled for easy identification upon delivery.
