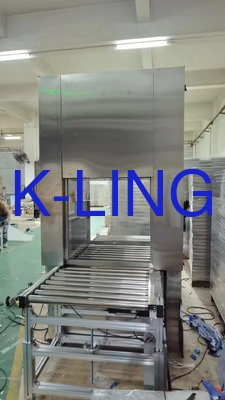

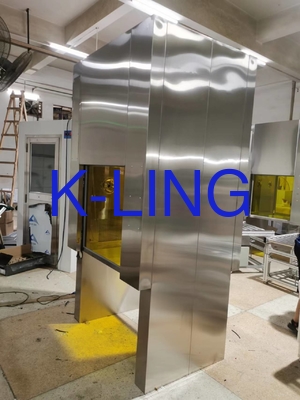

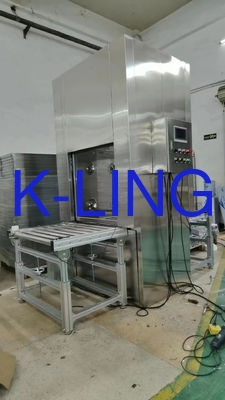

PLC Clean Room Decontamination Pass Chamber With Conveyor Line For Material Transfer

PLC Clean Room Decontamination Pass Chamber With Conveyor Line For Material Transfer

Quickly detail:

 PLC Control system  with touchable screen
 Conveyor line  integration with air shower system
 HEPA filter efficiency: 99.999%@0.3um
  Decontaimation process by HEPA filter and perfilter
 Sealed desgin in the vertial door



Introduction:
PLC Control System:
Centralized automation via programmable logic controllers (PLC) for precise coordination of conveyor speed, door operation, and air shower cycles (0-99s adjustable)
Conveyor Integration:
Stainless steel (SUS304/SUS201) or PU-coated rollers support continuous material flow, with load capacities tailored to cargo weight (e.g., up to 50kg/m²)

Decontamination Process:
High-velocity (25m/s) HEPA-filtered airflow (99.999% efficiency @0.3μm) removes particulates from items during transit. UV sterilization modules are optionally integrated for microbial control

Sealed Design:
Interlocking rapid-roll doors (manual/automatic) minimize air leakage, while IP65-rated construction ensures compliance with ISO Class 100-10,000 cleanroom standards
User Interface:

Touchscreen HMI displays real-time parameters (wind speed, cycle count) and supports remote monitoring via IoT connectivity


Technical Parameter:


Customer’s design is available.


Control  Programe :

 1: Exit is automatic slid door(up/down), entrance door is normally manual door
 2: after the goods entrance the cabinet closed the entrance door,
      the air clean system will be working 15s.meanwhile the two door interlock.
 3:15s later, the exit door will be open automatic, and the conveyor system will be move on. When the goods
     pass the photo-electrics sensor that will be give single to the back door for close. (the part1 and part 2
     should be together start and stop)
 4: Three side with blow. 1 Sets ion anti-static device.
 5: Emergency button help you out of suddenly trouble

   Part1:   Technology Illustration:
   1: Major Structure and frame: Aluminum profile (50x50mm)
   2: Belt: Anti-static PVC belt green color
   3: Height: 700-1000mm adjustable
   4: Motor: 0.4kw 380V/ 50HZ.
   5: Speed: 1-15m/min (adjustable)

   Part2:   Technology Illustration:
   1: Major Structure:  steel with power coated plated
   2: Frame: steel with power coated square cube. 40mmx40mmx1.5T
   3: Belt: Anti-static PVC belt green color
   4: Motor: 380V/50HZ.
   5: Speed: 1-15m/min adjustable


Warranty:

Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
