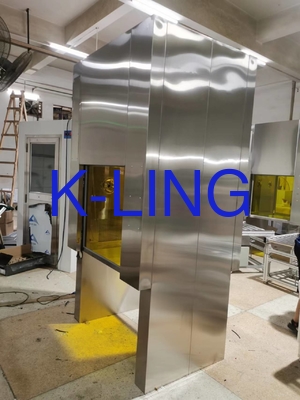

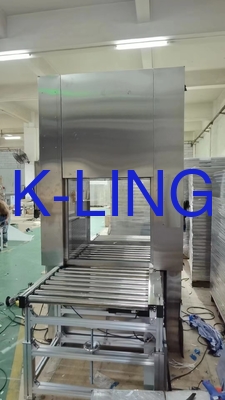

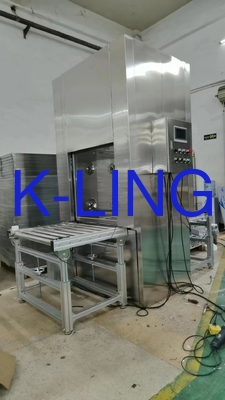

PLC Clean Room Air Shower Pass-Thru With Auto Conveyor Line For High-tech Manufacturing
Quickly detail:
Extenal size : 980x800x2250mm
Internal Size: 600x600x600mm
Filtration step : 2 step
HEPA filter efficiency: 99.999%@0.3um
Control system: PLC Control system
Blower way: three size blowing
Air speed :>25m/s
Power: 380V/50HZ
Introduction:
The PLC cleanroom Air Shower Pass -thru with Conveyor Line is an integrated contamination-control solution designed for automated material transfer between clean and non-clean zones in industries
Applications:
It is widely used in the clean environment,.such as pharmaceuticals, food processing, and electronics manufacturing. Combining HEPA filtration and PLC automation, it ensures efficient decontamination and seamless logistic
Technical Parameter:
|
MODEL
|
Air shower pass box with auto roll conveyor line
|
|
External size(mm)
(WXDXH)
|
980X970X2250 mm
|
|
Internal size (mm)
(WXDXH)
|
600X970X600mm
|
|
Interlocker
|
electronic interocker
|
|
Air way
|
three side air blowking
|
|
Pre-filter (mm)
|
560x275x17
|
|
HEPA Filter(mm)
|
630x630x69
|
|
Air flow (m/s)
|
1200m3/h
|
|
Fan power
|
380V/50HZ 600w (1set)
|
|
Noise
|
<75
|
|
HEPA Filter
|
99.995% @0.3um
|
|
UV lamp
|
1 pcs
|
|
Material
|
1:Entirety Sus201/304 (T=1.0/1.2mm)
2:External is steel with power coated, Internal is SUS304(T=1.0/1.2mm)
3: External is steel with power coated. Internal is SUS201 (T=1.0/1.2mm)
|
Customer’s design is available.
Control Programe :
1: Exit is automatic slid door(up/down), entrance door is normally manual door
2: after the goods entrance the cabinet closed the entrance door,
the air clean system will be working 15s.meanwhile the two door interlock.
3:15s later, the exit door will be open automatic, and the conveyor system will be move on. When the goods
pass the photo-electrics sensor that will be give single to the back door for close. (the part1 and part 2
should be together start and stop)
4: Three side with blow. 1 Sets ion anti-static device.
5: Emergency button help you out of suddenly trouble
Part1: Technology Illustration:
1: Major Structure and frame: Aluminum profile (50x50mm)
2: Belt: Anti-static PVC belt green color
3: Height: 700-1000mm adjustable
4: Motor: 0.4kw 380V/ 50HZ.
5: Speed: 1-15m/min (adjustable)
Part2: Technology Illustration:
1: Major Structure: steel with power coated plated
2: Frame: steel with power coated square cube. 40mmx40mmx1.5T
3: Belt: Anti-static PVC belt green color
4: Motor: 380V/50HZ.
5: Speed: 1-15m/min adjustable
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA filter: each one should be replacement in each half and one years.
Punctual delivery time:
• Production / inspection report provide before shipment
• Shipping notice or insurance for you when your goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide one year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
