Product Description:

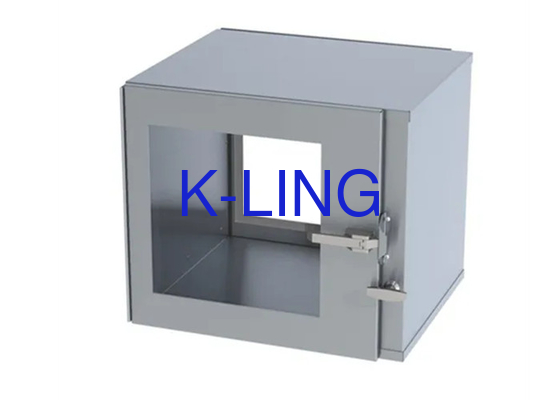

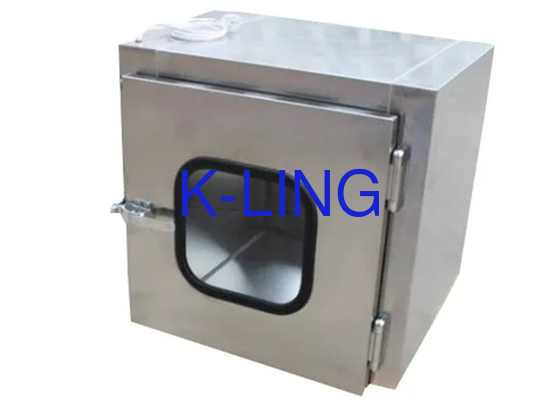

A pass box is an essential component in maintaining a controlled and clean environment within various industries such as pharmaceutical, biotechnology, electronics, and more. The Cleanroom Pass Box product offers a reliable solution for transferring materials between different cleanroom areas while minimizing the risk of contamination.
The internal work zone of the Cleanroom Pass Box measures 600*600*600mm, providing ample space for efficient transfer of materials. This spacious work zone allows for the seamless transfer of items without compromising the cleanliness of the controlled environment.
How to choose the right pass box?
Type of pass box
pass box can be divided into the following types according to functions and usage scenarios:
Ordinary transfer window: only equipped with UV lamp, suitable for areas with low cleanliness requirements.
Air shower transfer window: through the high-speed air flow to purge the surface of the item, suitable for areas with high cleanliness requirements.
Laminar flow transfer window: Laminar flow design provides a higher level of clean protection, suitable for high clean areas.
Self-cleaning transfer window: the interior is equipped with an air purification system, which can purify the air in the transfer window.
Selection basis
The selection of transfer Windows should be evaluated according to the level of clean areas and the risk of contamination:
Between unclean and clean areas: air shower transfer window is recommended.
Between class D and Class C: A common transfer window with UV lamp can be used.
Between Class C and Class B: Air shower transfer window is recommended.
Between Class B and Class A: Laminar flow transfer window is recommended
Technical Parameters:
| Uv Light |
Yes |
| Power Supply |
220V/50Hz |
| Internal Size |
500*500*500mm |
| Accessories |
Locks, Keys, Hinges |
| Landing And Lifting |
Supported Options Custom |
| Weight |
80kg |
| Products Name |
Pass Box |
| Lock |
Electronical Lock |
| Feature |
Critical Cleaning / Residue Free |
| Nozzles |
4-6 Pieces |
Support and Services:
Our Cleanroom Pass Box product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. Our team of experts is available to provide assistance with installation, maintenance, troubleshooting, and any other technical queries you may have. We are committed to delivering top-notch support to help you maximize the efficiency and reliability of your Cleanroom Pass Box.
Packing and Shipping:
Product Packaging and Shipping:
The Cleanroom Pass Box is carefully packaged to ensure safe delivery. It is wrapped in protective materials and placed in a sturdy cardboard box to prevent any damage during transit.
Shipping Information:
- Shipping Method: Standard delivery via reputable courier services
- Shipping Time: Estimated delivery time is 3-5 business days within the US
