Keys Included 600*600*600mm Internal Work Zone Static Pass Box For Clean Room

Product Description:

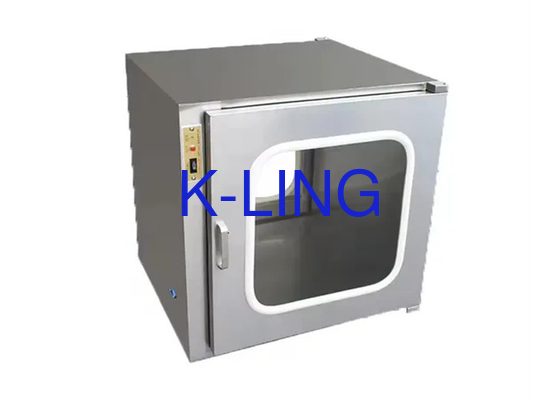

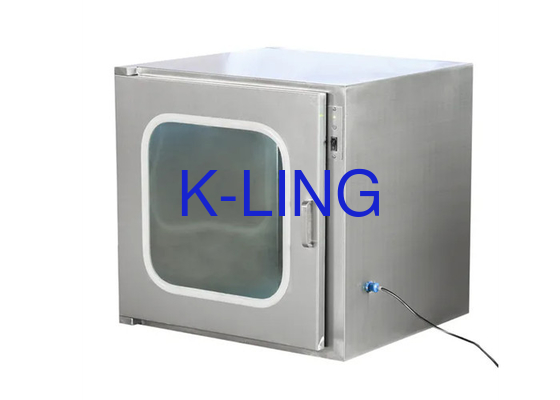

A customized pass box is a crucial piece of equipment in cleanroom environments, designed to facilitate the transfer of materials between two controlled environments while minimizing the risk of contamination. One such product is the Cleanroom Pass Box, which offers a reliable solution for maintaining the cleanliness and integrity of sensitive materials.

The Cleanroom Pass Box features an internal work zone measuring 600*600*600mm, providing ample space for the transfer of items within a controlled environment. This generous work zone allows for the efficient and secure transfer of materials, ensuring that cleanliness and safety standards are met at all times.

One of the key features of the Cleanroom Pass Box is its critical cleaning and residue-free design. This feature is essential in cleanroom environments where even the slightest contamination can have detrimental effects. By ensuring critical cleaning and residue-free operation, the pass box helps maintain the purity and integrity of materials being transferred.



Features:

• Product Name: Cleanroom Pass Box
• UV Light: Yes
• Process: Laser, punching, bending, paint, etc
• Filter: HEPA Filter H13 / H14
• Internal Work Zone: 600*600*600mm
• Lock: Electronical Lock



Technical Parameters:

UV Light	Yes
Weight	80kg
Accessories	Locks, Keys, Hinges
Port	Shanghai, Shenzhen, Ningbo
Process	Laser, punching, bending, paint Etc
Landing And Lifting	Supported Options Custom
Power Supply	220V/50Hz
Products Name	Pass Box
Internal Work Zone	600*600*600mm
Surface Treatment	Polished



The interlocking function of the transfer window is one of its core designs, designed to ensure that both sides of the door do not open at the same time when transferring items, thereby preventing air cross-contamination between clean and unclean areas. Interlock functions are mainly divided into two types: mechanical interlock and electronic interlock.
1. Mechanical interlock
Mechanical interlock transfer window realizes interlock function through physical mechanical structure. Its design usually includes mechanical connecting rod, lock hook, spring and other components. When one door is opened, the mechanism automatically locks the other door so that it cannot be opened, and the other door can only be opened when the already opened door is closed. This interlocking method does not rely on electricity, has high reliability, and can work normally even in the case of power failure.
2. Electronic interlock
The electronic interlock transfer window realizes the interlock function through the electronic control system. Its working principle is based on electromagnetic lock and integrated circuit control. When one door is opened, the magnetic lock will automatically lock the other door, and the indicator light will indicate that the other door cannot be opened. The magnetic lock will unlock the other door only when the already opened door is closed. Electronic interlock transfer Windows can also be integrated with more advanced functions, such as sensing devices, automatic disinfection, etc
