| Name: | Cargo Air Shower Tunnel | Color: | White/ Blue/ Yellow/ Red |
|---|---|---|---|
| Door: | PVC Fast Rolling Door | Application: | Clean Room Entrance |
| Certification:: | CE | Original: | GuangZhou China |

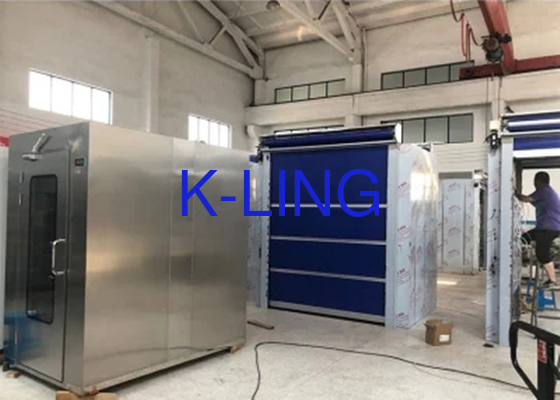

PVC Fast Rolling Door Cargo Air Shower Tunnel With White/ Red Blue Color
Description:
Cargo Air Shower adopts air blow method to remove the dust off the staff and objectives, limits the invasion of dust. Meanwhile the air shower room works as the gas tight room preventing from the invasion of the dirt air, secures purification level for cleanroom. The centrifugal fan integrated in Cargo Air Shower Room blows air flow through primary, HEPA filter through nozzles, which could be spun 360º. After particles are removed, the air flow will recycle back to air shower room. In order to ensure the performance, air shower room / cargo air shower room guarantees minimum 23m/s wind speed, default air shower time is 10 seconds

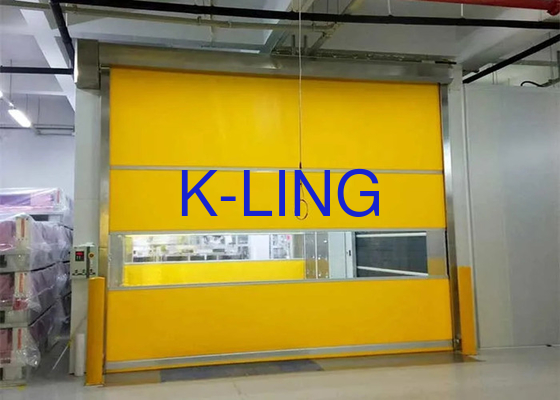

The PVC fast rolling door is easy to install, light in weight and diverse in color. Especially suitable for cargo air showers. It is cheaper and easier to use than other materials
Details:
How to Use Cargoairshower
Using Cargoairshower is easy. The cargo is placed inside the chamber, and the system is activated. The airjets blow the contaminants from the product's surface, and the HEPA filter removes the dust and other particles. Once the cleaning process is complete, the cargo is ready for transportation.
The Applicable Field
Cargoairshower is suitable for use in different industries, including pharmaceutical, food, and manufacturing sectors that require a high level of cleanliness during transportation. The materials used in the construction of the system are of high quality and meet the required standards for durability and performance.
Parameter
| Model | KEL-AS1300T-7.2 | KEL-AS1300T-7.3 | |
| External size(mm) (WXDXH) | 1150x1030x2180mm | 1150×2030×2180mm | |
| Work zone | 790x960x1910mm | 790×1960×1919mm | |
| (mm)(WXDXH) | |||
| Persons per cycle | 1-2 person | 2-4 person | |
| Air shower Duration | Factory set at 12 second (adjustable) | ||
| Material | 1: Entirety Sus304.(T=1.0/1.2mm) | ||
| 2:External is steel with power coated, | |||
| Internal is SUS304.(T=1.0/1.2mm) | |||
| 3: External is steel with power coated. | |||
| Internal is SUS201. (T=1.0/1.2mm) | |||
| Fan consumption | 0.75KWX1 set | 0.75KW×2 set | |
| Air flow of fan(m3/h) | 1300m3/h | ||
| Fan run (r/min) | 2800r/min | ||
| Nozzle in stain less steel | 12pcs | 24pcs | |
| Wind speed(m/s) | > 22-27m/s | ||
| Noise level(dB) | <62dB | ||
| LED Fluorescent Lamp | 20wx1 | 20w×2 | |
| Efficiency | 99.99%@0.3um | ||
| HEPA Filter | Air velocity | 1000(m3/h) | |
| Resistance | <220pa | ||
| Efficiency | 75% @ 5um | ||
| Pre-filter | Resistance | <30 Pa | |
| Electrical | Power supply | 380v/50Hz OR 380v/60Hz | |
| Customer’s design is available | |||
Factory
Keling Purification Technology Co., Ltd engaged in air purification field for many years, that is
Professional manufactory with research and development, produce, sales of air purification equipment and HVAC air filter.
