Product Details:
Payment & Shipping Terms:
|
| Lock: | Electronical Lock Or Machine Lock | Material: | Stainless Steel 304 |
|---|---|---|---|
| UV Light: | Yes | Power: | 230V/50HZ |
| Warranty: | 1 Year | Original: | China |

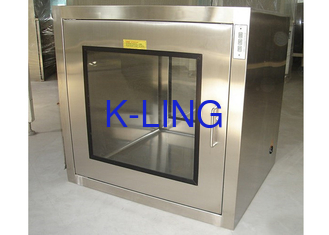

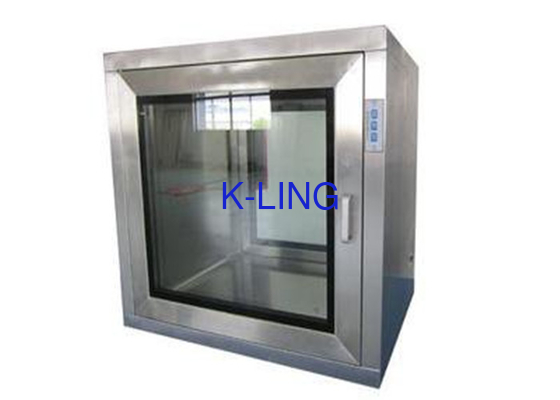

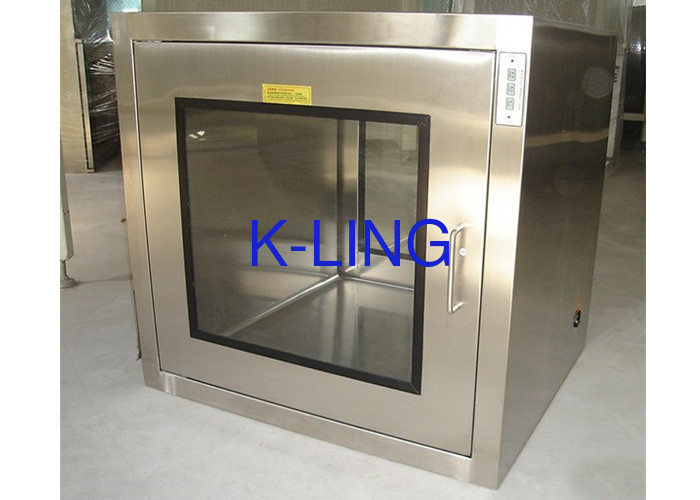

Clean Room Auxiliary Device Pass Box With UV Light Stainless Steel 304 Cabinet
Instructions:
The pass boxis an auxiliary device for the clean room. It is mainly used for the transfer of small items between the clean area and the clean area, between the clean area and the non-clean area, to reduce the number of times the clean room is opened, and to pollute the clean room. Reduce to a minimum. The pass boxis made of stainless steel and is smooth and smooth. The double doors are interlocked to each other to effectively prevent cross-contamination. They are equipped with electronic or mechanical interlocking devices and equipped with ultraviolet germicidal lamps.
Features:
1. Cabinet surface can be made of full stainless steel or cold plate,beautiful shape.
2. Work area is used sanding stainless steel plate,flat and smooth wear-resistant.
3. Both sides of the doors,mechanical interlocking or electronic interlocking device,so that both sides of the door can not be opened at the same in the shape can be.
4. Pass box is equipped with special seal to ensure air tightness.
Technical Parameters:
| Profile Size(W*D*H)(mm) | 685*500*590 | 785*600*690 | 935*750*840 |
| Within Size(W*D*H)(mm) | 500*500*500 | 600*600*600 | 750*750*750 |
| Material of Cabinet | Cold Plate Spray/Stainless Steel | Cold Plate Spray/Stainless Steel | Cold Plate Spray/Stainless Steel |
| Material of Wall | Stainless | Stainless | Stainless |
| Thickness(mm) of Plate | 1.0/1.2 | 1.0/1.2 | 1.0/1.2 |
| Transparent Laminated Glass Size(mm) | 350*350*8 | 395*395*8 | 480*480*8 |
| Power Supply | 220V/50Hz | 220V/50Hz | 220V/50Hz |
