Product Details:
Payment & Shipping Terms:
|
| Name: | Filter Fan Unit/ FFU | Application: | Laboratory Clean Room |
|---|---|---|---|
| HEPA Filter: | 99.99%@0.3um | Size: | 575*575mm/ 1175*575mm |
| Material: | Stailess Steel SUS304/201/316 /galvanized Sheet | Warranty: | 1 Year |
| High Light: | Clean Room Fan Filter Unit,HEPA Fan Filter Unit |
||

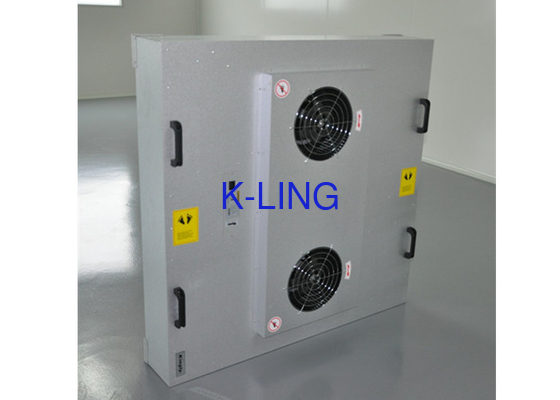

220VAC 50Hz Standard Size Fan Filter Unit With HEPA Filter For Clean Room
Basic Information
Name:Fan Filter Unit
Model: FFU-1175*575
Air Vol: 1080CMH
Noise: 54dB
Power: 220VAC 50Hz
Consump: 190W
Transport Package: Cartoon/Tray
Specification: 1175*575
Trademark: KEL
Origin: China Mainland
HS Code: 8421399090
Production Capacity: 3000
FFU Information
Fan filter unit is a kind of ceiling unit with internal fan, used for turbulence and laminar flow clean room, the unit design is flexible, according to the design specifications, it can easily match with any ceiling skeleton, in order to achieve the clean grade 1000 to 1 level requirements.The fan filter unit is one of the quietest and best priced units in the clean market.With this unit, high quality air can be delivered to clean rooms.And air manifold is good, it is suitable for semiconductor, electronics,flat panel display and disk drives and optical, biological industry and other industries used in the clean room, clean bench, clean production, packaged clean room and local best level, etc and the other is required to strictly control the air pollution of local low energy, reduce the operation cost.
Specification
| Model | FFU-4*2 | FFU-4*3 | FFU-4*4 | |
| Size of the Case(mm) | 1175*575*215 | 1175*875*215 | 1175*1175*290 | |
| Size of HEPA(mm) | 1170*570*69 | 1170*870*69 | 1170*1170*80 | |
| Air Velocity(m/s) | 0.35~0.45 | |||
| Rated Power(w) | 85~100 | 100~115 | 160~175 | |
| Noise(dB(A)) | 48~50 | 52~54 | 52~54 | |
| Loss of Pressure of Filter(Pa) | 88~120 | |||
| Excess Pressure Outside the Product(Pa) | 75~120 | |||
| Power Source | ~220V,50Hz | |||
| Filter Efficiency | ≥99.995%(@0.3 μm ) | |||
| Optional UPLA Efficiency | 99.9995%(@0.1~0.2 μm ) | |||
| Standard Control Mode | Two Speed Controller | |||
| Optional Control Mode |
Three/Five Speed Controller Variable Speed Controller Master-slave Control System Computer Monitoring System |
|||
| Material of Case | Al-Zn Coated Steel Sheet | |||
| Optional Material | SUS304/SUS430 | |||
| Complete Weight(kg) | 29 | 43 | 50 | |
| Optional Configuration | Power Cord,Fault Alarm,Pre-filter | |||
