Pharmaceutical Cargo Air Shower Automatic Induction PVC Door Air Shower
Introduction
Cargo air showers are frequently put to use in a variety of manufacturing environments. Cargo air showers offer a convenient and automated solution to cleaning the surfaces of work in progress or finished goods, as well as provide a buffer area between two areas of different cleanliness. Modern cargo air showers can be categorized into four main types:
(1) Manual Door Cargo Air Showers- Less common; mostly used for smaller items
(2) Automatic SWING Door Cargo Air Showers - Suitable for small trailers and/or channels that are double use for cargo and personnel
(3) Automatic SLIDING Door Cargo Air Showers - Suitable for forklifts and other large vehicles, as well as channels with high amounts of traffic
(4) Assembly Line Cargo Air Showers - Suitable for cleaning products moving along an assembly line
| KEL-GS Series Cargo Air Shower Spec Sheet | ||||
| Model | KEL-GS-1700/1 | KEL-GS-1700/3 | KEL-GS-2000/1 | KEL-GS-2000/3 |
|
Exterior Size LxWxH (mm) |
1700x1500x2100 | 1700x3000x2100 | 2000x1500x2100 | 2000x3000x2100 |
|
Interior Size LxWxH (mm) |
1200x1430x1960 | 1200x2930x1960 | 1500x1430x1960 | 1500x2930x1960 |
| Material | Available in 100% SUS304 Stainless Steel and/or High-Quality 1.2 mm Cold-Rolled Steel Plate | |||
| Air Shower Time | 0-99 seconds | |||
| Jet Nozzles | 18 | 36 | 18 | 36 |
| Nozzle Diameter | 30 mm | |||
| Air Velocity | > 25 m/s | |||
| Door Closer | Dorma (German) Door Closer | |||
| Electronic Lock | LCJ Electronic Lock | |||
| Filter Efficacy | ≥99.995% of Particles ≥0.3μm | |||
|
Filter Size LxWxH (mm) |
595 ×595×80 | 595 ×595×80 | 595 ×595×80 | 595 ×595×80 |
| No. of Filters | 2 | 4 | 2 | 4 |
| Power Source | 380V/50Hz (Also Available in 220V and 110V) | |||
| Lighting | 1 Recessed LED | 2 Recessed LED | 1 Recessed LED | 2 Recessed LED |
|
Fan Power (# x Kw) |
2 x 0.75 | 4 x 0.75 | 2 x 0.75 | 4x 0.75 |
| CUSTOMIZED DESIGN WELCOME. | ||||

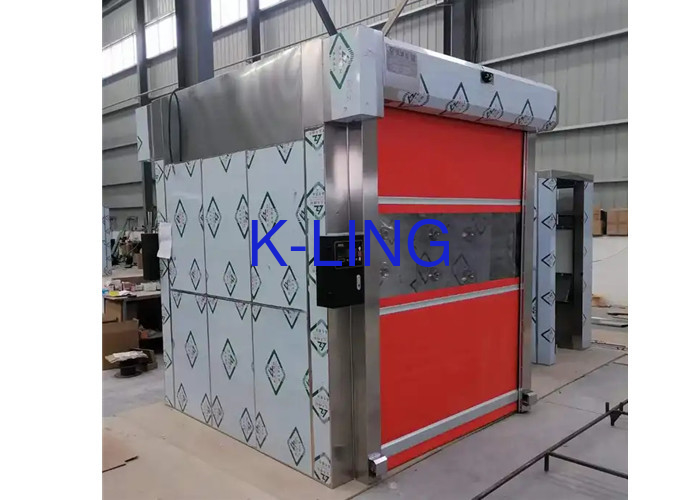

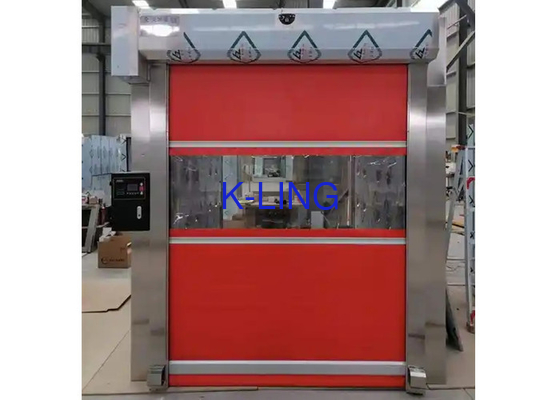

Air Shower Tunnel details photos
