| Door: | Automatic Doors | Speed: | 25-27m/s |
|---|---|---|---|
| Application: | Deliver Goods | Name: | Air Shower Tunnel |
| Original: | China | Warranty: | 1 Year |
| High Light: | Class 1000 Cleanroom Air Shower,Pharmaceutical Cleanroom Air Shower |
||
Pharmaceutical Class 1000 Cleanroom PVC Door Air Shower With Rapid Rolling Door
Introduction
Pharmaceutical Class 1000 Cleanroom Air Shower with Rapid Rolling Door is made of full stainless steel. It is equipped with centrifugal fan and the primary and high efficiency air filters. The product has the features of elegant appearance, compact structure, easy maintenance and simple operation. Meanwhile, we can produce the people and cargo air shower room with the electronic interlocking and infrared sensing device according to customers' needs.
Operation instructions
1. Starting screen: the required operation can be carried out according to the prompt button on the screen. The air shower time is the air shower time displayed; If air shower is forced on the goods, after both front and back doors are closed, press the CLR key on the text to start air shower, and the air shower will automatically end at the set time, and the inner door will automatically open.
2, air shower time, both inside and outside the door shut time delay can be SET in the text, press on our (1), enter setting screen press the SET key on the operation panel, door of the delay time close to 0 and flashing, using the number keys on the panel type you want to SET the time, press the ENT key, time setting, close colleague who delay time to 0 and flashing, also through the numeric keys to SET the shutdown delay time, you need press ENT key SET is complete, the wind leaching time is SET in such a manner.
3, when the fast volume door fault, can be in the text on the fault query on the text to choose the fault of the door, if it is the outer door to press the key (1), the inner door press the key (2) to query, if the communication between the PLC fault, communication error indicator anti color.
4, external door fault inquiry screen: when photoelectric fault (generally not aligned, photoelectric green light is normal, otherwise abnormal), photoelectric indicator light anti-color. Other faults when the corresponding indicator inverted color.
5. Internal door fault inquiry screen: the fault display is the same as the external door.

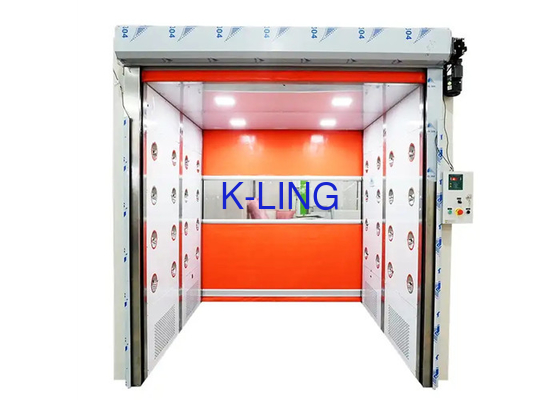

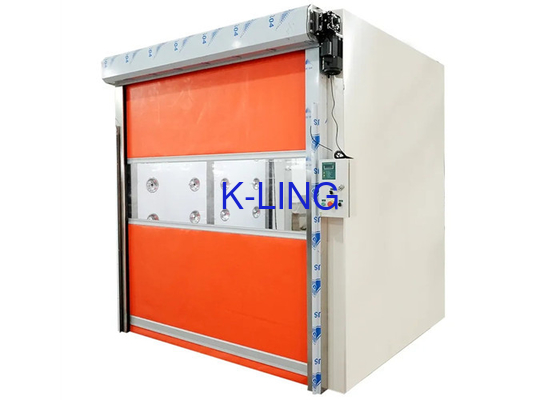

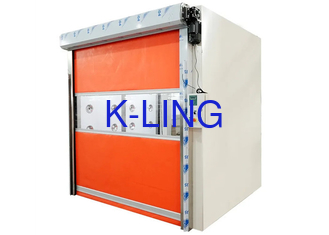

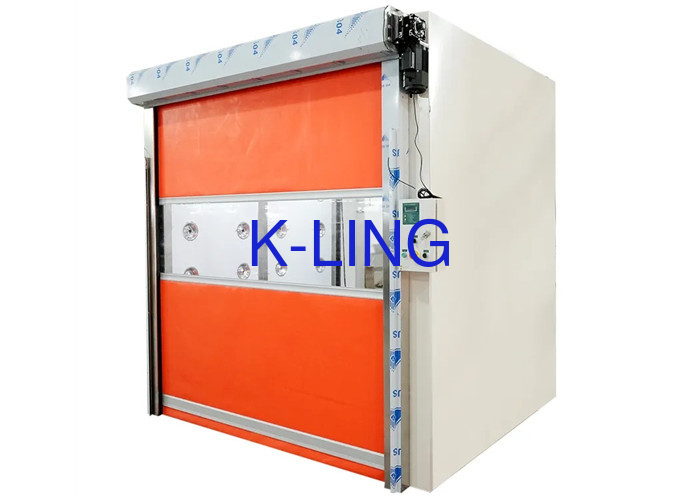

Air Shower Tunnel details photos
