Home ProductsAir Shower Tunnel

Automatic Roll Up Air Shower Tunnel PVC Shutter Doors Cargo Air Shower For Clean Room Entrance

Certification
China KeLing Purification Technology Company certification
China KeLing Purification Technology Company certification
Customer Reviews
Keling had successfully supplied us following products on 25 Oct.2017 against PO NO.M170807; Their supplied Air Filters have been working satisfactorily since installation.We are satisfied with their products.

—— SIMPOR PHARMA

Since we do coopertae with them, they always offer good quality and keep the delivery on time to us, we do appreicated for their kind support !

—— Nasir

This is to certify that we bought U type air shower tunnel, Air Shower and HEPA filter, Secondary air filter ,perfilter for our project from KeLing Purification Technology Co. Ltd, 3C01 Tian Feng Commerce Square, Mid Building, No. 133, Baiyun AV, Baiyun Disctrict , Guangzhou , GuangDong, China against Contract No: 2014/4119005942 in October 22, 201

—— IATEC,Argentina

Product arrived faster than expected and they sent something special in addition to what I ordered. Nice people and fast service!

—— Mohammed Saad

I'm Online Chat Now

Automatic Roll Up Air Shower Tunnel PVC Shutter Doors Cargo Air Shower For Clean Room Entrance

Automatic Roll Up Air Shower Tunnel PVC Shutter Doors Cargo Air Shower For Clean Room Entrance
Automatic Roll Up Air Shower Tunnel PVC Shutter Doors Cargo Air Shower For Clean Room Entrance Automatic Roll Up Air Shower Tunnel PVC Shutter Doors Cargo Air Shower For Clean Room Entrance

Large Image :  Automatic Roll Up Air Shower Tunnel PVC Shutter Doors Cargo Air Shower For Clean Room Entrance

Product Details:
Place of Origin: CHINA
Brand Name: KEL
Certification: CE
Model Number: KEL-CAS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: plywood packing
Delivery Time: 8-15 working day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 set/ month
Detailed Product Description
Door: Automatic Doors Speed: 25-27m/s
Application: Deliver Goods Name: Air Shower Tunnel
Original: China Warranty: 1 Year
High Light:

Automatic Roll Up Air Shower Tunnel

,

Clean Room Entrance Air Shower Tunnel

Tomatic Roll Up Air Shower PVC Shutter Doors Cargo Air Shower For Clean Room Entrance





Introduction

Air shower is a necessary passage for entering the clean room, which can reduce the pollution problems brought by entering and leaving the clean room.

As the door to the clean room and the iconic equipment is very important, a high-end air shower equipment that can add value to the clean room has been our constant pursuit for many years.



Advantages

1. Addopting the fan, high efficiency filtration equipment, nozzle, return air system of air shower.
2. 36pcs of 25m/s high-speed airflow nozzle and form a vertical air circumfluence system.
3. Three-way air distribution mode make airflow velocity maintain consistency.
4. The air takes off the dust from the body with gravity together. It will not produce the whirlpool and ensure the purifying effect.


Optional accessory:


1. Manual swing door / automatic sliding door/High speed scroll shutter door
2. HEPA filter or ULPA filter
3. Material for cabinet: cold-rolled steel plate with powder coated / SUS#201 / SUS#304
4. Common fluorescent lamp / UV Sterilizer lamp
5. With voice announce



Specification
W*D*H
1300x1000x2200
1300x1250x2200
1300x1500x2200

1300x2000x2200

1300x2500x2200
Applicable number
1
2
3
4
5
The main material
Cold rolled steel sheet electrostatic spraying or stainless steel
5mm double-layer tempered glass with automatic door closer
Filtering system
2set
2set
2set
4set
4set
Primary filter:G4 specification:595*295*25mm
HEPA:99.99%(0.3um) specification:610*610*70mm
Fan/speed
2pcs
2pcs
2pcs
4pcs
4pcs
Speed 25~30m/s
Nozzle
12pcs
16pcs
18pcs
24pcs
32pcs
Stainless steel embedded type or 360 degree rotating type
Control system
Der-1series intelligent control system
10-inch capacitive touch LCD screen, ARM main control, multi-core CPU, high-speed main frequency;
Voice prompt, adjustable blowing time 0-99S, double door electronic interlock, PDF/JPG picture, video and multiple file playback
functions;
A variety of scene function programs, you can choose according to your needs, and with password permission settings;
Intelligently judge the connection status, running status and fault self-check function of each component, and can be connected to
the central plant monitoring system;
Various sensors such as wind speed, pressure difference and falling dust are optional, and each module interface is reserved.
Illumination
LED recessed lighting
Power
1.52KW
1.52KW
1.52KW
3.04KW
3.04KW

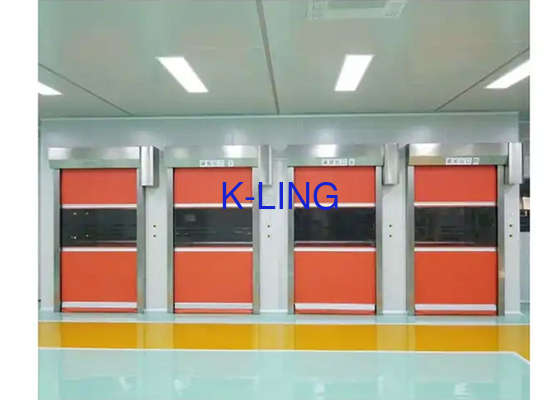

Automatic Roll Up Air Shower Tunnel PVC Shutter Doors Cargo Air Shower For Clean Room Entrance 0

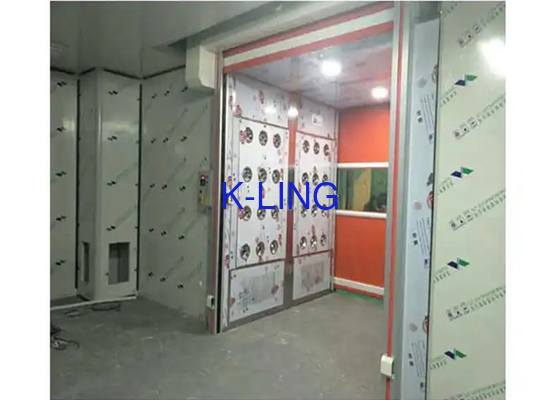

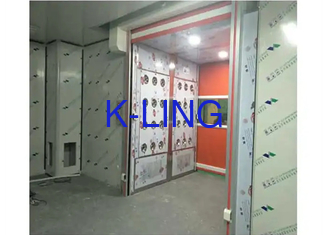

Air Shower Tunnel details photos

Automatic Roll Up Air Shower Tunnel PVC Shutter Doors Cargo Air Shower For Clean Room Entrance 1
