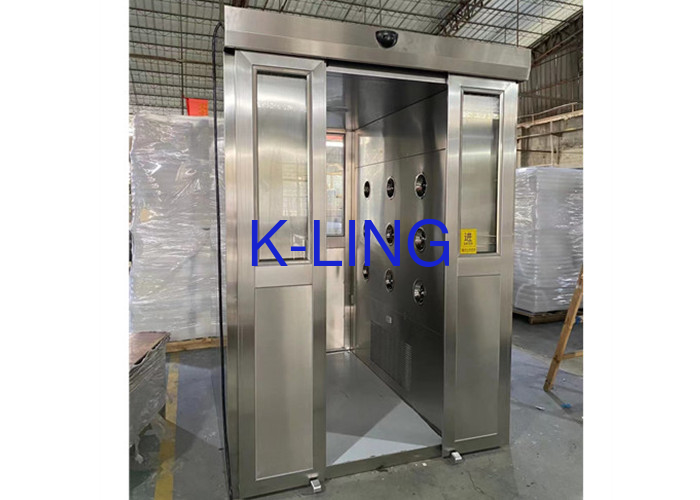

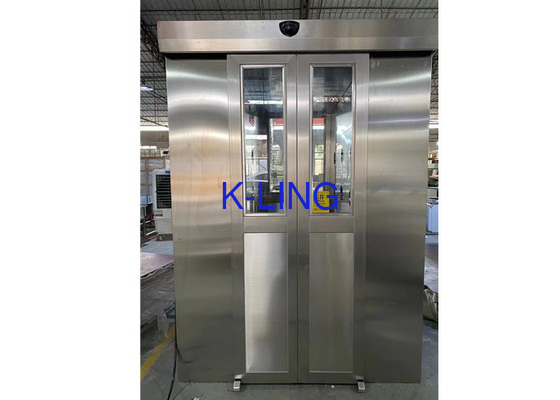

Sliding Door Air Shower Tunnel With 3 Blowers And Adjustable Air Speed
Introduction
Air showers are a tool that allows for people and/or objects to enter a clean area without bringing in unwanted contaminants such as dust and bacteria. Air showers act as a sort of buffer or air lock between two areas of varying cleanliness, and preserve the air quality of a dynamic clean environment. Due to their usefulness and simplicity, air showers are a critical component of modern-day cleanroom facilities.
Air showers employ high-speed currents of air to blow microscopic dust and bacteria particles off of clothing and other surfaces. The air used in air showers runs through a filtration system in order to maintain air purity and avoid recirculation of microscopic contaminants.
Feature
1. Photoelectric sensor, automatic blowing.
2. Designed with circulation wind to ensure the cleanness of shower area under non-shower status.
3. Double doors with electric interlock.
4. LED display with adjustable blowing time (0-99 min).
5. HEPA Filter, Class 100 / ISO 5
Parameter
The difference between different model for Air Shower
| Model | Power supply | Air speed for spraying | External dimension (mm) |
Spray time | weight | Applicable number |
| KEL-DAS1 | 380V 50Hz 0.55KW | 25-30m / s | 1800*1500*2100 | 0-99s adjustable | 350 kg | 1-2 (recommended standard number is 1) |
| KEL-DAS2 | 380V 50Hz 0.55KW |
25-30m / s | 1800*2000*2100 | 0-99s adjustable | 450kg | 2-3 (recommended standard number is 2) |
| KEL-DAS3 | 380V 50Hz 0.75KW | 25-30m / s | 1800*2100*2100 | 0-99s adjustable | 500kg | ≥3 |
| KEL-DAS1 | 380V 50Hz 0.55KW | 25-30m / s | 2000*2500*2600 | 0-99s adjustable | 400kg | 2-3 (recommended standard number is 2) |
| KEL-DAS2 | 380V 50Hz 0.75KW | 25-30m / s | 3000*2500*2600 | 0-99s adjustable | 500kg | ≥3 |
| KEL-DAS3 | 380V 50Hz 1.5KW | 25-30m / s | 4000*2500*2600 | 0-99s adjustable | 700kg | ≥3 |
