| Type: | Hepa Filter | Temperature: | 150-350℃ |
|---|---|---|---|
| Application: | Food And Medical Factory | Size: | Customized |
| Warranty: | 1 Year | Original: | China |
| High Light: | Heat Resistant HEPA Air Filter,H14 HEPA Air Filter,H13 HEPA Air Filter |
||

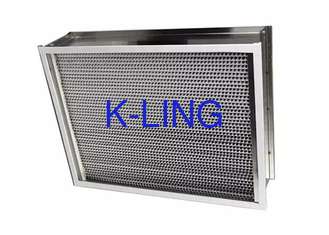

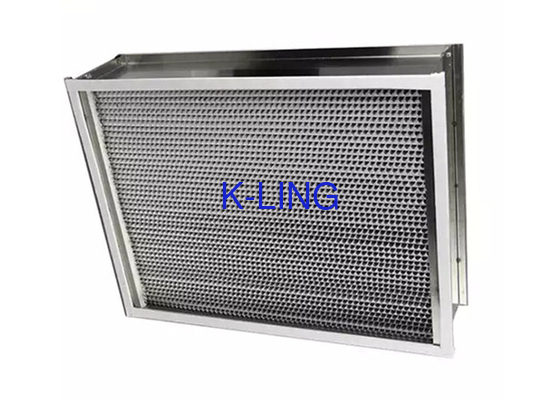

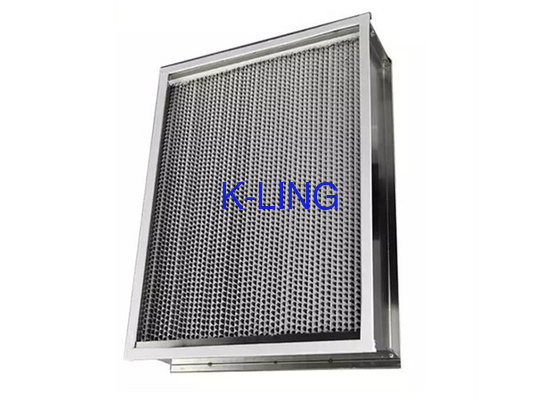

0.3 Micron HEPA Filter H13 H14 Heat Resistant HEPA Filter For Pharmaceutical
Detail
Name:0.3 Micron HEPA filter H13 H14
Shape: Box Filter
Porosity :0.3 um
Size:Standard Size (Customized)
Colour:Silver (Customized)
Structures:304# Stainless Steel Frame and Fiberglass Pleated Pack
Filtering Efficiency Grade:99.99%
Special Properties:High Dust Holding Capacity, Easy Installation, Long Life
Packaging:1PC/Box (Customized)
| • High temperature • High mechanical strength • High efficiency • High air volume |
Recommended final pressure drop: 500 Pa. Temperature: 150°C 250°C 300°C 350°C. |
Introduction
Flanged high temperature resistant hepa filter for filtering air suspended particles under 0.5 μm, biggest difficulties of high temperature resistant hepa filter is sealing and high temperature resistant performance. Our company 250 ℃ high temperature resistant hepa filter use the chemical synthesized silicon, with good stability, no peculiar smell, curing speed, overcome the pungent smell of organic silicon, and avoid the secondary pollution for the coating, ultrasound, pharmaceutical and other industries , organic silicon curing speed is slow, completely curing need 3 to 7 days. 400 ℃ of high temperature resistant hepa filter using Younis white ceramic glue imported from USA, high temperature resistant performance to over 400 degrees,Strong viscosity, stable sealing performance, has become a major pharmaceutical factory designated products
Parameter
| Model | Size(mm)(W*H*D) | Rate air flow(m/h) | Initial pressure drop (Pa) | efficiency % 0.3u(DEHS) |
| KEL-AF-320 | 320*320*220 | 400 | ≤220 | ≥99.99% |
| KEL-AF-484 | 484*484*220 | 1000 | ||
| KEL-AF-610A | 610*610*150 | 1000 | ||
| KEL-AF-630 | 630*630*220 | 1500 | ||
| KEL-AF-915 | 915*610*150 | 1500 | ||
| KEL-AF-610B | 610*610*290 | 1800 | ||
| KEL-AF-1220 | 1220*610*150 | 2000 | ||
| KEL-AF-1260 | 1260*630*220 | 3000 | ||
| Note | Deep pleat hepa filter can be customized according to the site. | |||
