Type: | Ultral Air Filter | Efficiency: | U15 |
---|---|---|---|
Media: | HV Glass Fiber | Screen: | Both Side With Metal Screen |
Gasket: | Circle Rubber | Cap: | Galvanize |
High Light: | Clean Room Cylinder Air Filter,HEPA Cylinder Air Filter |

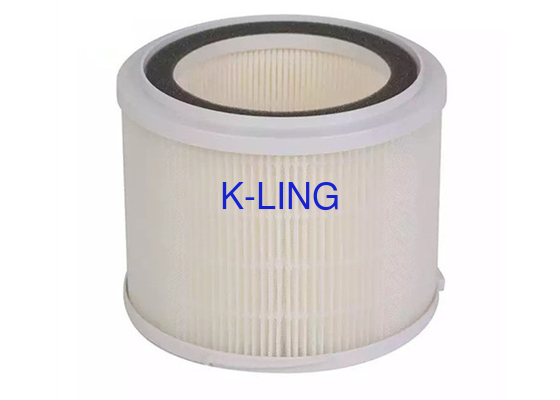

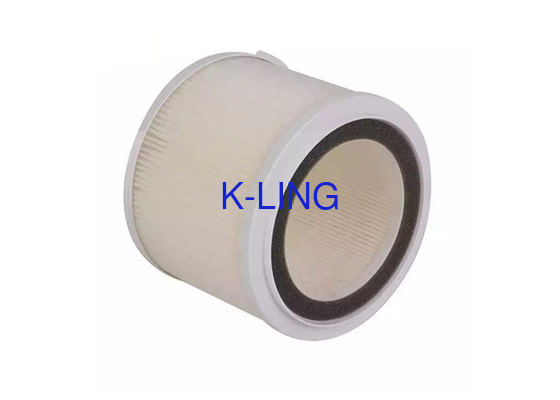

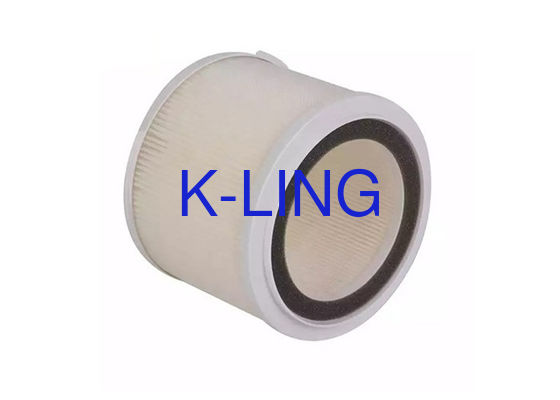

Clean Room Customized High Efficiency Cylinder Air Filter Media Low Resistance
Detail
Part Name: Cylinder Air Filter
Sizes: Outer Diameter: 155 mm
Inner Diameter: 100 mm
Height: 123 mm
Efficiency: HEPA (Customized)
Packaging: PE+carton
Application:
The Healthy Filters HEPA Filters are capable of capturing most dust and allergens as tiny as 0.3 microns to remove things like household dust, pet dander, mold spores, and pollens. Ideal for anyone who suffers from allergies or asthma.
Display
Parameter
Dimension (W*H*D)(Mm) | Air Velocity (M3/H) | Filtration Area (M2) | Holding Dust (G) |
Primary Resistance
|
Final Resistance |
Efficiency (0.12um) |
320x320x50 | 170 | 1.9 | 160 | <160±10pa | 400-600pa |
U15-U17
|
484x484x50 | 300 | 4.6 | 360 | <160±10pa | 400-600pa | |
610x610x50 | 450 | 7.5 | 570 | <160±10pa | 400-600pa | |
915x610x50 | 650 | 11.2 | 850 | <160±10pa | 400-600pa | |
1220x610x50 | 850 | 14.9 | 1130 | <160±10pa | 400-600pa | |
320x320x69 | 200 | 2.89 | 230 | <160±10pa | 400-600pa | |
484x484x69 | 400 | 6.6 | 530 | <160±10pa | 400-600pa | |
610x610x69 | 600 | 10.7 | 830 | <160±10pa | 400-600pa | |
915x610x69 | 900 | 16 | 1230 | <160±10pa | 400-600pa | |
1220x610x69 | 1200 | 21.3 | 1640 | <160±10pa | 400-600pa |
Customized design is available.
