Product Details:
|
Type: | Box Type | Pack: | 4 |
---|---|---|---|
Filter Media: | Glass Fiber Filter Paper | Dust Holding: | 1000g |
Efficiency: | F6-F9 | Original: | GuangZhou China |
Highlight: | Plastic Frame Glass Fiber Filter,Ventilation V Bank Glass Fiber Filter |

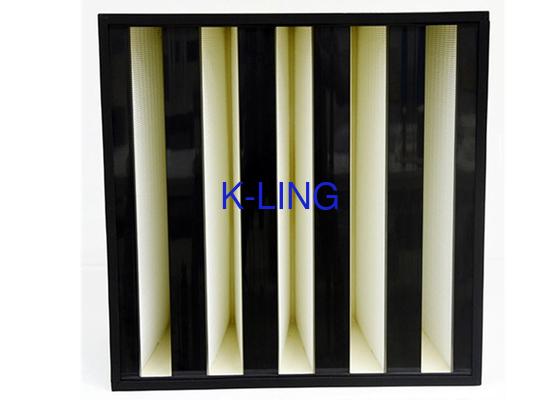

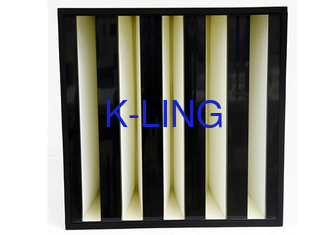

Glass Fiber Filter Paper Box Type With Plastic Frame Ventilation Compact V Bank Filter
Features:
1,Box type with galvanised steel frame
2,Mini-pleat design, glass fiber filter paper
3,High dust loading capacity, long service life
4,Firm structure, good performance under turbulent air flow
5,Efficiency:65%(M6),85%(F7),90%(F8)(EN779)
99.95%@MPPS(H13)
99.995%@MPPS(H14)
Application: Very high efficiency final filtration, |
Gasket: CR,EVA,EPDM,PU |
V Bank Compact Filter Specification:
Customer Size Is Available.
Dimension (W*H*D) (Mm) |
Pack |
Air Flow (M3/H) |
Primary Resistance (By0.5m/S) |
Final Resistance |
Efficiency (0.3um) |
287X287X292 | 2 | 900 | 〈60 | 250-300 | F6 |
〈80 | 300-400 | F7 | |||
〈100 | 300-400 | F8 | |||
〈120 | 400-450 | F9 | |||
592X592X292 | 3 | 2850 | 〈60 | 250-300 | F6 |
〈80 | 300-400 | F7 | |||
〈100 | 300-400 | F8 | |||
〈120 | 400-450 | F9 | |||
592X592X292 | 4 | 3800 | 〈60 | 250-300 | F6 |
〈80 | 300-400 | F7 | |||
〈100 | 300-400 | F8 | |||
〈120 | 400-450 | F9 |
