Name: | Filter Fan Unit/ FFU | Application: | Laboratory Clean Room |
---|---|---|---|
HEPA Filter: | 99.99%@0.3um | Size: | 575*575mm/ 1175*575mm |
Material: | Stailess Steel SUS304/201/316 /galvanized Sheet | Warranty: | 1 Year |
High Light: | 220VAC Fan Filter Unit,Galvanized Sheet Fan Filter Unit,Clean Room Fan Filter Unit |

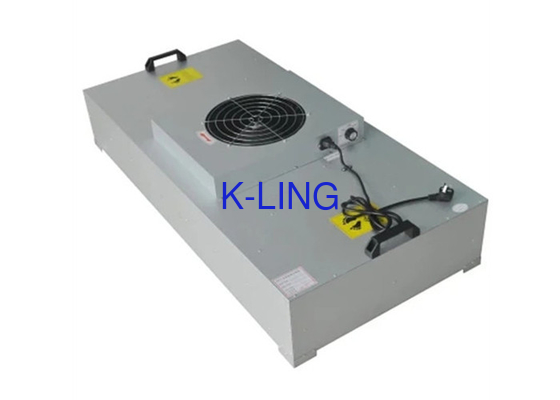

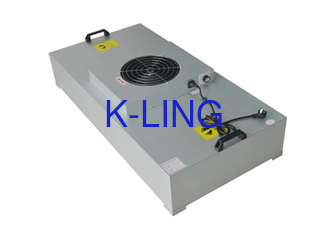

Self-Contained Ceiling Unit Fan Filter Unit For Clean Room Application
220VAC 50Hz Standard Size Fan Filter Unit Galvanized Sheet For Clean Room
Basic Information
Name:Fan Filter Unit
Model: FFU-1175*575
Air Vol: 1080CMH
Noise: 54dB
Power: 220VAC 50Hz
Consump: 190W
Transport Package: Cartoon/Tray
Specification: 1175*575
Trademark: KEL
Origin: China Mainland
HS Code: 8421399090
Production Capacity: 3000
Dimensions
MODEL | KEL-400 FFU Steel Plastic Wind Rotor |
SIZE(W*L)mm | 575*575 575*1175 1175*1175 |
Material | galvanized Sheet /Coated/ 304stainless steel/201stainless steel |
cleanliness class | 100 class@0.3um |
Air Velocity | 0.35-0.6m/s(THREE SPEED ADJUSTABLE) |
HEPA FILTER | 99.99%@0.3um (H13)/99.999%@0.3um(H14)/ULPA |
Power Supply | AC/DC (110V , 220V), 50/60HZ |
Speed Control Adjustment
Airflow/speed is adjusted by rotating the knob:
•Clockwise lowers the speed
•Counter-clockwise increase the speed
Fully rotating the speed control knob to the left or counter-clockwise will turn the unit off.
