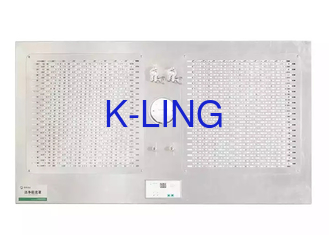

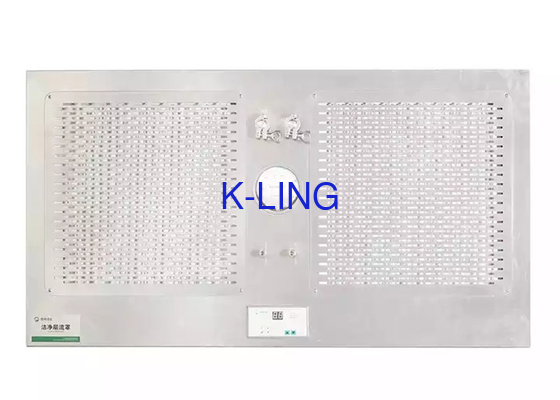

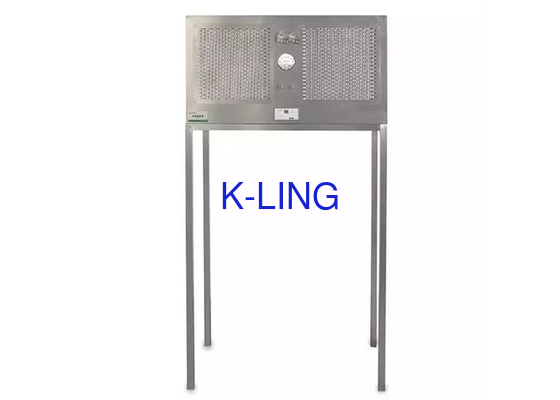

Grade A Ceiling Laminar Airflow Hood Worked In Cleanroom Sterile Core Area

Large Image : Grade A Ceiling Laminar Airflow Hood Worked In Cleanroom Sterile Core Area

Product Details:

Place of Origin:	CHINA
Brand Name:	KEL
Model Number:	KEL-AFS

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	plywood packing
Delivery Time:	5-8 working day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10000 sets/ month

Contact Now

Detailed Product Description

Certification:	CE	Name:	Laminar Air Flow Filter System
Ceiling:	Polyester Ceiling	Warranty:	1 Year
Size:	Customized	Orighin:	Guangzhou China
High Light:	Ceiling Laminar Airflow Hood , Cleanroom Laminar Airflow Hood

Grade A Level Ceiling Laminar Airflow Hood Worked in Cleanroom Sterile Core Area

Laminar airflow system

Laminar airflow system is an air purification equipment that provides class A unidirectional flow and creates the local high cleanliness environment.
The working principle is to filter the air through the high-efficiency filter at a certain wind speed and equalize the pressure through the damping layer to send the clean air to the work area in a one-way flow, so as to obtain the flow pattern and cleanliness required by the work protection area.

Design Drawing

Parameter

No.	Item	Data
1	Material	SUS304/316L
2	Application	Pharmaceutical, Food & Beverage, Electronics
3	Rated Air Velocity (m/s)	0.45±20%
4	Cleanliness Class	Class A
5	Noise	65~75 dB
6	Power Supply	220V
7	Weight	300-800 KG
8	Warranty	One Year

Dimensions
Model	Outer Size LxWxH (mm)	Inner Size L'×W' (mm)
KEL-AFS12-120060	1200×600×650	1200×600
KEL-AFS16-100100	1000×1000×650	1000×1000
KEL-AFS32-200100	2000×1000×650	2000×1000
KEL-AFS35-180120	1800×1200×650	1800×1200
KEL-AFS47-240120	2400×1200×650	2400×1200
KEL-AFS49-200150	2000×1500×650	2000×1500
KEL-AFS65-200200	2000×2000×650	2000×2000

Grade A Ceiling Laminar Airflow Hood Worked In Cleanroom Sterile Core Area 1
