| Name: | Clean Room Air Shower | Material: | Cold Rolled Plate |
|---|---|---|---|
| Door: | Automatic Doors | Warranty: | 1 Year |
| HEPA FIlter: | H13 | Original: | China |
| High Light: | 2 Person Air Shower Room,Cold Rolled Plate Air Shower Room |
||

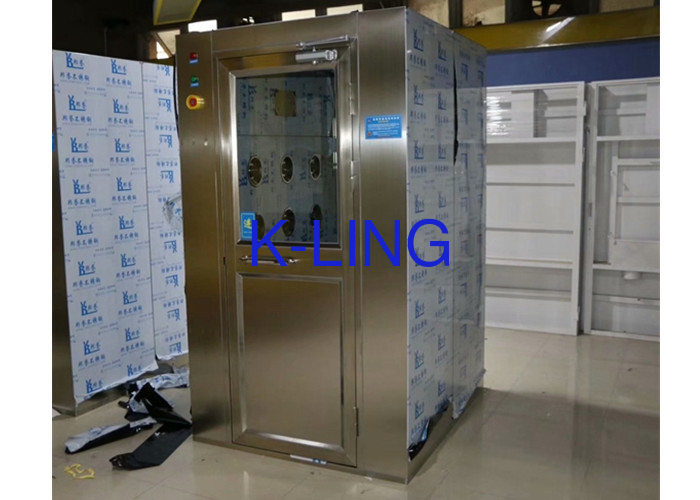

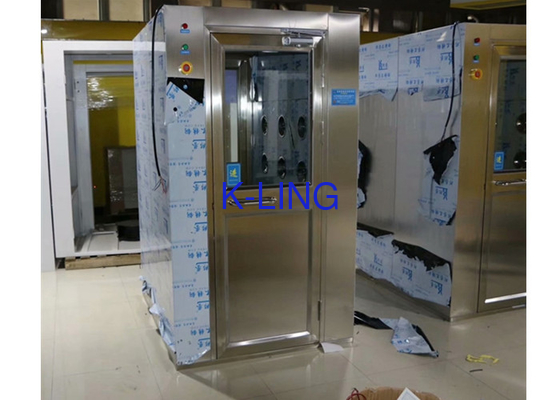

Double Person Cleam Room Air Shower Room With Interlock and Automatic Open Doors
Features:
1. By photoelectric sensing two door interlock switch, automatically opening and closing, and people (goods) in and out of convenience.
2. Air shower room control system adopts PLC control system.
3. Air shower is when operators enter the clean room using personal purification device.
4. It uses a high-speed clean air shower to remove body dirt and adjust the nozzle into the room personnel effectively remove dust out of the man.
5. Air shower room also plays a role in Airlock to prevent entering clean areas without clean air, and to prevent external contamination into clean areas.
6. Subjects are made of cold-rolled sheet spray plastic or stainless steel plate processing, and centrifugal fan configuration and initial efficiency and high efficiency air filters, with appearance of compact structure, easy maintenance, simple operation and so on.
Technical Parameters:
| Item | Single Pairs of Air Shower | Two Pairs of Air Shower | More Than Two of Air Shower | |
| Eternal Size | W1590*D1000*H2050mm | W1590*D2000*H2050mm | W1590*D3000*H2050mm | |
| Within Size | W790*D930*H1910mm | W790*D1930*H1910mm | W790*D2930*H1910mm | |
| Fit Number | 1-2 Persons | 2-4 Persons | 3-6 Persons | |
| Fan Power Supply,Power | 380V/50Hz/750W(2Tables) | 380V/50Hz/750W(4Tables) | 380V/50Hz/750W(6Tables) | |
| Fan Air Flow | 1200m3/h | 1200m3/h | 1200m3/h | |
| Fan Speed | 2800r/min | 2800r/min | 2800r/min | |
| Stainless Steel Nozzles | 12PCS | 24PCS | 36PCS | |
| Wind | >&=25-30m/s | >&=25-30m/s | >&=25-30m/s | |
| Noise in The Equipment | <62db | <62db | <62db | |
| Size of Efficient Filter | 610*610*120mm(2Tables) | 610*610*120mm(4Tables) | 610*610*120mm(6Tables) | |
| Efficiency of Efficient Filter | 99.99%@0.3um | 99.99%@0.3um | 99.99%@0.3um | |
| Air Flow of Efficient Filter | 1000m3/h | 1000m3/h | 1000m3/h | |
| Initial Resistance of Efficient Filter | <220Pa | <220Pa | <220Pa | |
| Size of Coarse Efficiency Filter | 775*380*17mm | 775*380*17mm | 775*380*17mm | |
| Efficiency Level of Coarse Efficiency Filter | G3 | G3 | G3 | |
| Efficiency of Coarse Efficiency Filter | 80%@5um | 80%@5um | 80%@5um | |
| Initial Resistance of Coarse Efficiency Filter | 30Pa | 30Pa | 30Pa | |
| Power | 380V/50Hz | 380V/50Hz | 380V/50Hz | |
| Power | 1.6kw | 3.1kw | 4.6kw | |
| Door Parameters | Automatic Door/Closing Speed:2.5~6m/s Continuously Adjustable, Power Supply:220V,50Hz, Rated Power:45w. | |||
