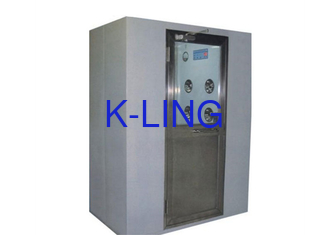

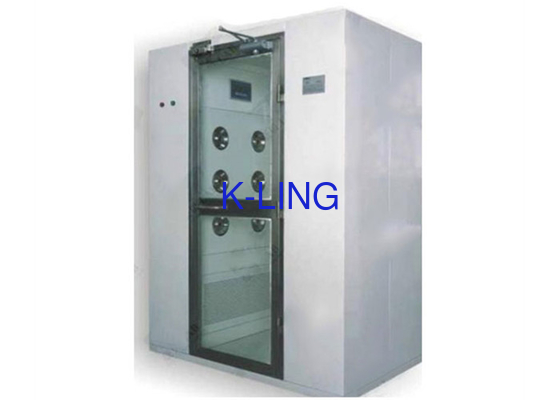

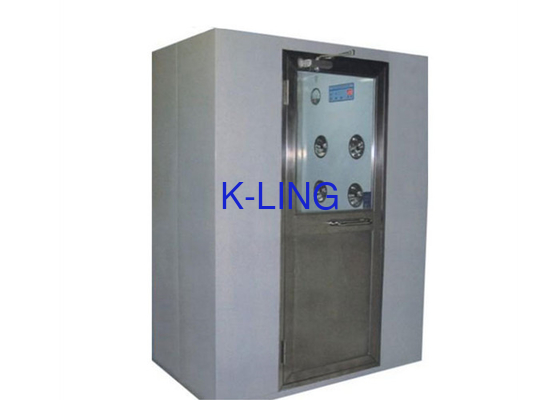

Automatic Doors Cold Rolled Plate Material Single Or Double Person Air Shower
Feature
1. Air shower is when operators enter the clean room using personal purification device.
2. It uses a high-speed clean air shower to remove body dirt and adjust the nozzle into the room personnel effectively remove dust out of the man.
3. Air shower room also plays a role in Airlock to prevent entering clean areas without clean air, and to prevent external contamination into clean areas.
4. By photoelectric sensing two door interlock switch, automatically opening and closing, and people (goods) in and out of convenience.
5. Air shower room control system adopts PLC control system.
6. Subjects are made of cold-rolled sheet spray plastic or stainless steel plate processing, and centrifugal fan configuration and initial efficiency and high efficiency air filters, with appearance of compact structure, easy maintenance, simple operation and so on.
Parameter
|
Model |
Single Single Blow Air Shower |
Single Double Blow |
Double Double Blow |
|
Outside Dimension (mm) |
1290×1000×2050 |
1590×1000×2050 |
1590×2000×2050 |
|
Air Shower Area (mm) |
790×910×1930 |
790×910×1930 |
790×1910×1930 |
|
Air Velocity at the Nozzle |
15~20M/S |
||
|
Number of Nozzles |
6 Pieces(Single) |
12Pieces(Double) |
24Pieces(Double) |
|
Air Shower Time |
0~99s(Adjustable) |
||
|
Filter efficiency
|
≥99.99% |
||
|
Meterial |
1.2mm thickness cold-rolled plate, surface static electricity spurts models processing or 1.2mm stainless steel plate. |
||
|
The material and number of door |
Stainless steel single door*2 pieces |
||
|
The door of interlocked manner
|
Air shower double door lock, usually two-door electronic interlocking, can open a door. |
||
|
Power Supply |
380V |
||
|
Capacity |
1.2KW |
2.3KW |
4.6KW |
|
Weight |
~360KG |
~420KG |
~840KG |
|
Number of Users |
1~2 people |
1~2 people |
2~4 people |
Detail
