| Name: | Laminar Flow Cabinet | Material: | Stainless Steel |
|---|---|---|---|
| Air Flow: | Vertical Laminar Flow Or Horizontal Laminar Flow | Application: | Laboratory Equipment |
| Power: | 450W | Noise: | 65 DB |
| High Light: | Stainless Steel Laminar Flow Cabinets,Horizontal Laminar Flow Cabinets,Vertical Laminar Flow Cabinets |
||

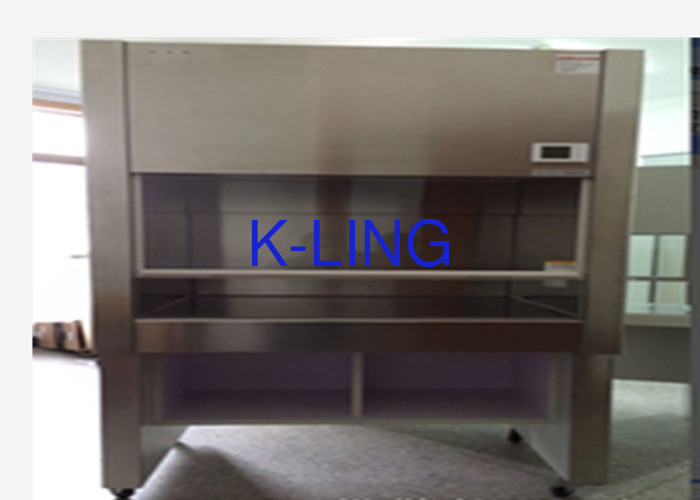

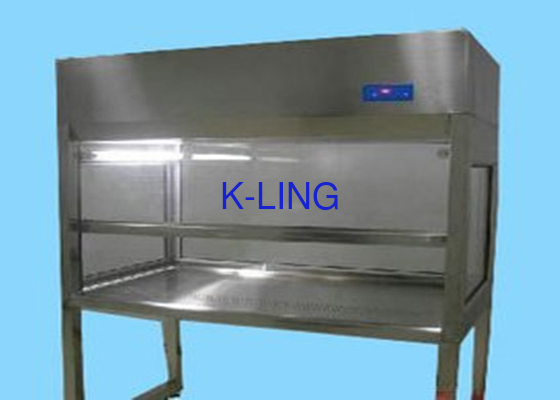

Adjustable Stainless Steel Vertical Or Horizontal Laminar Flow Cabinet
Description:
Clean bench is the use of efficient air purification unit, a higher level of manufacturing clean area for low level clean room, local work environment cleanliness requirements of the higher places, it can save a lot of initial investment and operating costs.
Application:
With professional technology design, and manufacture of new vertical unidirectional flow clean bench, this device is widely used in photoelectric prompt, microelectronics, aseptic packaging, food, medical equipment, pharmaceuticals, clean paint and other industries.
Features:
1. Adopts mini-pleated HEPA filter to minimize the plenum, with stainless steel table-board and glass atside make the whole work area spacious and bright;
2. Easy removal prefilter with big air volume for better protection of HEPA filter and ensure the wind speed;
3 . Adjustable air flow systems to make work area in ideal status;
4 . Horizontal flow type, open desktop, easy to operate.
| Model | KEL-1000 | KEL-1350 | KEL-1610 | KEL-1915 |
| External size(mm) | W1000*L740*H1460 | W1350*L740*H1460 | W1610*L740*H1460 | W1915*L740*H1460 |
| Internal working size(mm) | W980*L480*H610 |
W1285*L480*H610 |
W1590*L480*H610 |
W1895*L480*H610 |
| Air flow(m/h) | 900 | 1200 | 1500 | 1800 |
| wind velocity | 0.45m/s±20% | |||
| Cleanliness class | Class 100 (ISO14644-1 International standard) | |||
| Mini-pleat Hepa Filter | 99.99% @ 0.3μm | |||
| Size & NO. of Hepa Filter | 915*610*69-1 |
1220*610*69-1 |
915*610*69-1 610*610*69-1 |
915*610*69-2 |
| Table material | SS304 | |||
| Noise | <50 dB | <50 dB | <50 dB | <50 dB |
| Noise testing area | The area 20cm away from the front of clean bench and 1.2 m height. | |||
| Power | AC, 220V 50/60Hz | |||
| Used for NO. of people | 1 |
1-2 |
2-3 |
3-4 |
Parameters for Vertical Clean Bench:
| Model | KEL-S-1000 | KEL-S-1350 | KEL-S-1640 | KEL-S1950 |
| External size(mm) | W1000*L650*H1750 | W1350*L650*H1750 | W1640*L650*H1750 | W1950*L650*H1750 |
| Internal working size(mm) | W820*L610*H600 |
W1270*L610*H600 |
W1560*L610*H600 |
W1870*L610*H600 |
| Air flow(m/h) | 900 | 1100 | 1500 | 1800 |
| wind velocity | 0.45m/s±20% | |||
| Cleanliness class | Class 100 (ISO14644-1 International standard) | |||
| Mini-pleat Hepa Filter | 99.99% @ 0.3μm | |||
| Size & NO. of Hepa Filter | 880*570*69-1 |
1170*570*69-1 |
915*570*69-1 610*570*69-1 |
915*610*69-2 |
| Table material | SS304 | |||
| Noise | <50 dB | <50 dB | <50 dB | <50 dB |
| Noise testing area | The area 20cm away from the front of clean bench and 1.2 m height. | |||
| Power | AC, 220V 50Hz | |||
| Used for NO. of people | 1 |
1-2 |
2-3 |
3-4 |
