KeLing Purification Technology Company Limited
-------------------------------------------------------------
Advanced. High-Qulity. Reasonable.
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel | Name: | Air Shower |
|---|---|---|---|
| Application: | Clean Room | Standard: | CE |
| Air Speed: | 25m/s | Original: | China |
| High Light: | Auto Blowing Clean Room Air Shower,Noise Reduction Clean Room Air Shower |
||

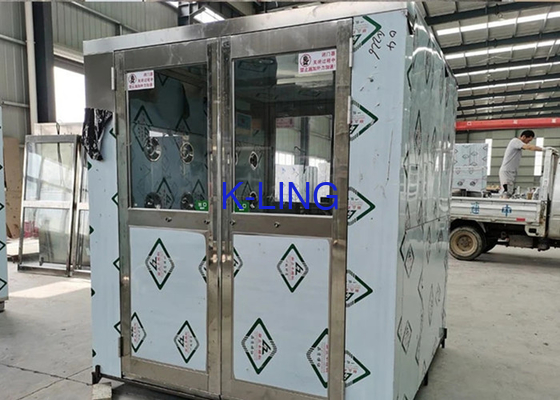

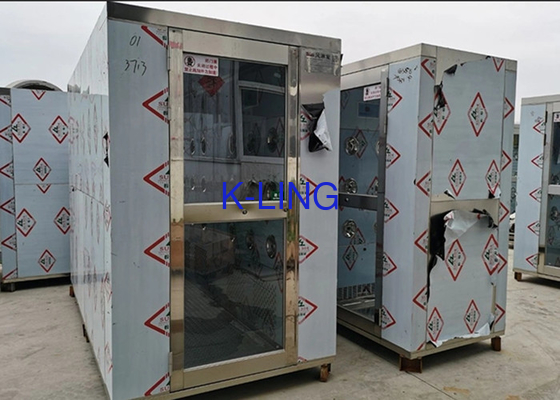

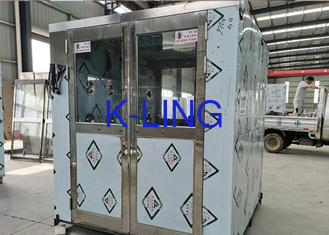

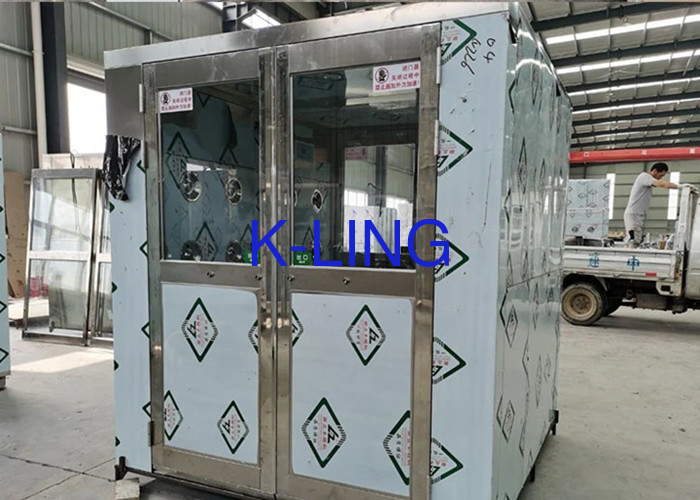

Automatic Blowing Clean Tunnel Room Stainless Steel Pass Clean room Air Shower
Advantage
Automatic Control
System adopts Single Chip Microcomputer control . The LED can display correct air shower's status;Two - doors Interlock and photoelectric sensor . The air shower induce the person and blows automatically . Meanwhile two doors are Interlocked .
Humanized Operation
Humanized design layout:clear and correct air shower processing instruction, human voice instructions , Also the blowing time can be adjusted .
High Cleanliness High Wind Speed
Adopting Pre - filter and HEPA filtration system , filtration efficiency reaches 99.99%. Matched with multiple perspectives and adjustable stainless steel nozzle & bia air volume low noise fan , Air speed can reach 25m/ s from air outlet and 18m/ s to human body .
Template Structre
Air shower room chooses template design scheme . According to actual needs , it assembles into different depth . Its very convenient and efficiency .
High Performance High Sealing
Adopting imported electronic parts , the operation performance is stable and reliable . Advanced noise reduction system and EVA sealing material , the sealing performance is perfect .
Feature
1. Photoelectric sensor, automatic blowing.
2. Designed with circulation wind to ensure the cleanness of shower area under non-shower status.
3. Double doors with electric interlock.
4. LED display with adjustable blowing time (0-99 min).
5. HEPA Filter, Class 100 / ISO 5
Parameter
Technical Parameters
|
Model |
AS-AS1 |
AS-AS2 |
AS-AS3 |
AS-AS4 |
|
Applicable Number of People |
1 |
3-4 |
4-5 |
5-6 |
|
Air Shower Time |
0- 99s (Adjustable) |
|||
|
Number of Nozzle |
12 (two Sides) |
24 ( two Sides ) |
36 ( two Sides ) |
48( two Sides ) |
|
Mouth Diameter of Nozzle |
Φ 30 mm |
Φ 30 mm |
Φ30 mm |
Φ30 mm |
|
Air Velocity at the Nozzle |
>25m/s |
>25m/s |
>25m/s |
>25m/s |
|
Dimension of High Efficiency Air Filter (mm) |
600×600×120 |
600 ×600×120 |
600×600×120 |
600×600×120 |
|
Dimension of Air Shower Area (mm) |
800×1000×1960 |
800×2000×1960 |
800×3000×1960 |
800×4000×1960 |
|
Outside Dimension (mm) |
1700×1240×2200 |
1700×2240×2200 |
1700×3240×2200 |
1700×4240×2200 |
|
Power Supply:380V,50HZ, we can made nonstandard voltage for different country. |
||||
|
Maximum Power Consumption |
1.5KW |
3KW |
4.5KW |
6KW |
