| Material: | Powder Coated Steel | Application: | PCR |
|---|---|---|---|
| Type: | Laminar Flow Hood | Origin: | Guangzhou |
| Hepa Filter: | H14 | UV Light: | Yes |
| High Light: | Laminar Air PCR Flow Hood,Biological Air PCR Flow Hood,PCR Safety Cabinet |
||

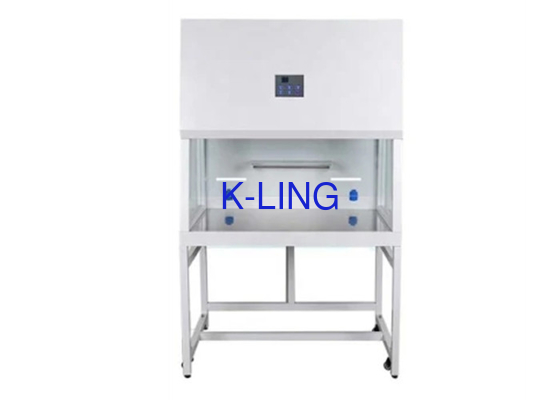

Laminar Air PCR Flow Hood/ PCR Cabinet Class II Biosafety Biological Safety Cabinet
Introduction
PCR Cabinet is an equipment that provides a partial clean air environment, its air flow is vertical. UV is effectively utilized in this cabinet, downflow clean air protects against contamination by bathing the PCR apparatus in sterile air and limiting risk of contamination from the operator's arms, or from any equipment bought into the otherwise sterile environment. A positive pressure ensures that there is no ingress of airborne contaminants from the surrounding laboratory environment. Toughened glass windows offer exceptionally clear all round vision and do not allow transmission of UV.
Advantage:
1. UV sterilization system.
2. HEPA filter with efficiency: ≥ 99.995 at 0.3µ M.
3. LED display for time and pressure.
4. Audio alarm: Glass window over height alarm; Filter replacement alarm.
5. Interlock function: UV lamp only can be switched on when the front window is closed, ensuring operator safety.
6. UV timer (1-99 minutes): When the set time expires, the UV lamp automatically switches off in preparation for the next
experiment.
Parameter
|
Model |
PCR800 |
PCR1000 |
PCR1200 |
PCR1300 |
PCR1500 |
|
External Size (W*D*H) |
800*700 |
1000*705 |
1200*700 |
1300*700 |
1500*700 |
|
Internal Size (W*D*H) |
700*595 |
900*595 |
1100*595 |
1200*595 |
1400*595 |
|
Work Surface Height |
750mm |
||||
|
Material |
Main Body: Cold-rolled steel with anti-bacteria powder coating |
||||
|
Work Table: 304 stainless steel |
|||||
|
Front & Side Windows |
5mm toughened glass , anti-UV |
||||
|
Motorized |
Manual |
Motorized |
Motorized |
Motorized |
|
|
Max Opening |
260mm |
320mm |
260mm |
260mm |
260mm |
|
Pre-filter |
Polyester fiber, Washable |
||||
|
HEPA Filter |
99.999% efficiency at 0.3μm. |
||||
|
Airflow Velocity |
0.3-0.5m/s, speed adjustable |
||||
|
Noise |
≤65dB |
||||
|
UV Lamp |
20W*1 |
20W*2 |
30W*1 |
30W*1 |
40W*1 |
|
Emission of 253.7 nanometers, with UV timer |
|||||
|
Illumination Lamp |
LED 8W*2 |
LED 12W*2 |
|||
|
Illumination |
≥1000Lux |
||||
|
Shelf with IV bar |
Stainless steel, 502*150*50mm (W*D*H) |
||||
|
caster |
Universal caster with leveling feet |
||||
|
Consumption |
400W |
300W |
600W |
600W |
600W |
|
Waterproof Socket |
Two, total load≤500W |
||||
|
Power Supply |
AC 220V±10%, 50/60Hz;110V±10%,60Hz |
||||
|
Standard Accessory |
UV lamp*3, Fluorescent lamp, Base stand, Waterproof socket*2, Shelf with IV bar |
||||
|
Gross Weight |
130kg |
150kg |
170kg |
180kg |
200kg |
|
Package Size (W*D*H) |
950*930 |
1150*930 |
1350*930 |
1450*930 |
1650*930 |
