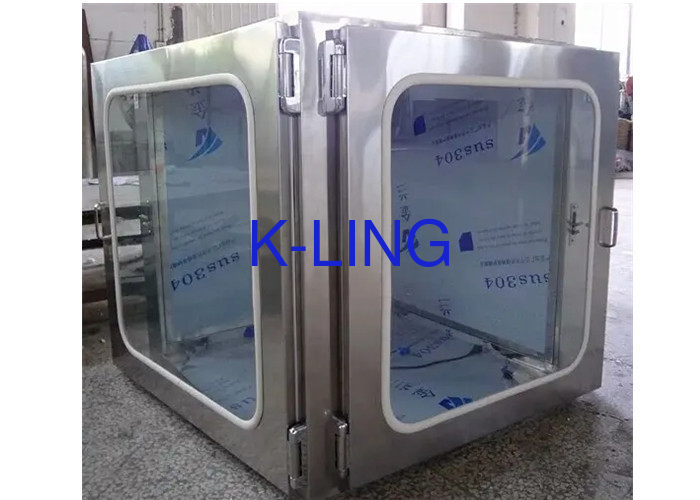

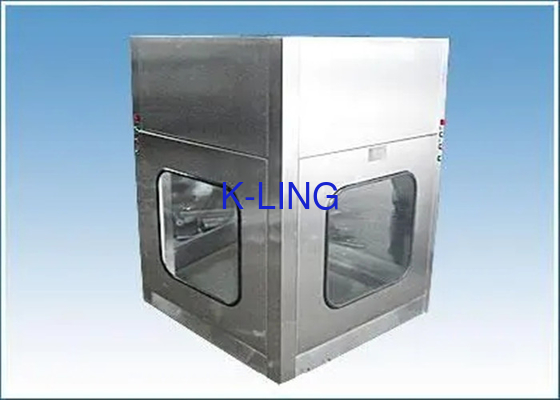

Air Proof Cleanroom Customized Shape L Shape Pass Box/ Cornor Pass Box
Introduction
KEL offers “L” Pass-Box used in Pharmaceuticals to transfer Material and helps to maintain class between to area. L Shape Pass Box is a between to different area. L shape pass box, as the name suggests, is a type of pass box whose shape resembles to that of “L”. These pass boxes are usually installed in the manufacturing areas and they filter the incoming area. It thus keeps the air free from dust and other contaminants.
Feature
Design acc. to GMP-Guideline easy to clean and to disinfect
Doubled Skin Cabinet with Doors and Toughed Glass
Cabinet Fabricated in SS 304/316 Structure
SS 304 Hinges and Door Handle
Electro Magnetic Interlocking System
Pre-Installed White and UV Germicidal Light
Feather Touch controller for Door/Light/Hour Meter for UV
Sound Level Minimum 65db On Scale
Power Supply Single Phase 220V 50 Hz
Parameter
| Body material (external) | ①: 1.2mm cold rolled steel plate (Electrostatic paint)②: 304/316# stainless steel (mirror/sanding) |
| Working material(Internal) | 304/316# stainless steel |
| Door | 5mm tempered glass |
| Interlocking function | Mechanical interlocking/Electronic interlocking |
| Optional accessories | 1. Intercom device2. Ultraviolet germicidal lamp3. Roller device |
| Model | Outside size (W*D*H)mm | Working size(W*D*H)mm |
| HA-PB-04 | 400*400*400 | 265*310*335 |
| HA-PB-05 | 500*500*500 | 365*410*435 |
| HA-PB-06 | 600*600*600 | 465*510*535 |
| HA-PB-07 | 700*700*700 | 565*610*635 |
| HA-PB-08 | 800*800*800 | 665*710*735 |
| HA-PB-04-1 | 530*450*460 | 400*400*400 |
| HA-PB-05-1 | 630*550*560 | 500*500*500 |
| HA-PB-06-1 | 730*650x660 | 600*600*600 |
| HA-PB-07-1 | 830*750x760 | 700*700*700 |
| HA-PB-08-1 | 930*850*860 | 800*800*800 |
| Size can be customized | ||
