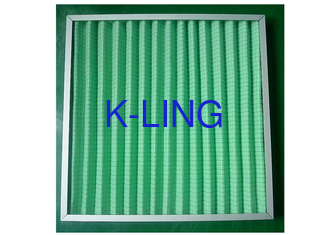

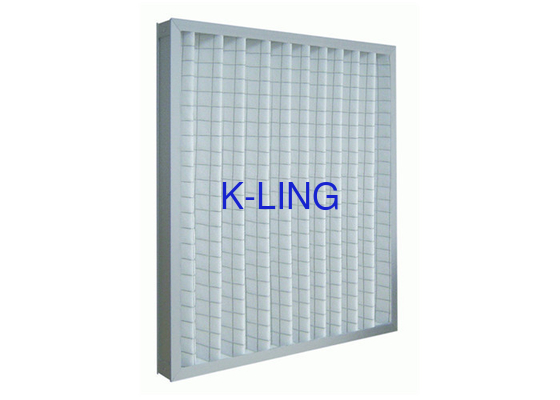

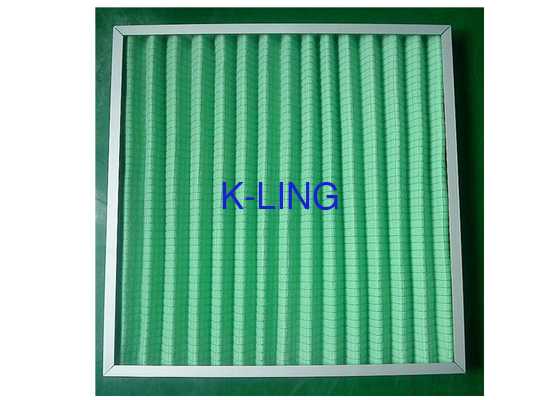

V Shape Pleat Big Dust Holding Capacity Panel Pre Air Filters G1 G3 Efficiency

V Shape Pleat Big Dust Holding Capacity Panel Pre Air Filters G1 G3 Efficiency
V Shape Pleat Big Dust Holding Capacity Panel Pre Air Filters G1 G3 Efficiency V Shape Pleat Big Dust Holding Capacity Panel Pre Air Filters G1 G3 Efficiency

Large Image :  V Shape Pleat Big Dust Holding Capacity Panel Pre Air Filters G1 G3 Efficiency

Product Details:
Place of Origin: CHINA
Brand Name: KEL
Certification: CE
Model Number: KEL-AF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: plywood packing
Delivery Time: 8-15 working day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 set/ month
Detailed Product Description
Clapboard: Without Clapboard Efficiency: G1-G4
Color: Green Size: Customized
Warranty: 1 Year Original: China
High Light:

G1 Panel Pre Air Filters

,

V Shape Panel Pre Air Filters

,

G3 Pleated Panel Air Filters



V-Shape Pleat Big Dust Holding Capacity Panel Pre-Air Filters G1 G3 Efficiency





Introduction:


The filter media structure of the pleated air filter is a V-shape pleat, which increases the contact area with air and therefore improves the dust holding capacity. The main material of the filter media is a composite filter cotton or double-sided bonding metal mesh, cardboard frame or metal frame are optional for the frame.

The air filter only weighs about 1kg and is easy to install and replace. Therefore, it can be widely used in pre-filter system for clean rooms, HEPA air filters, air compressors, central air-conditioning fresh air handling unit and ventilation systems, and computer rooms dedicated constant temperature and humidity air conditioning unit.



Structure:
The two-layer die cut cardboard or aluminum alloy frame combines with the filter media to form the simple and strong structure. Meanwhile, the filter adopts a V-shape pleated structure, the material usage is three times greater than common air filter, so the dust holding capacity is greater.
Filter paper:
Special blended by non-woven fabrics and synthetic fibers with a fluffy structure, large dust holding capacity and low initial resistance
Filter media:
The filter media is closely combined with the protection grid and processed into a contour, equal spacing filter pleat layer by special process, allowing the air to pass freely and evenly, so that the dust can be uniformly adsorbed on the entire media, thereby achieving high dust holding capacity.
Protection grid:
The grid is a galvanized grid or wire grid to increase the strength of the filter pleats, effectively weakens the pleat jitter during use, thereby reducing secondary pollution.
Cardboard frame:
High-strength waterproof cardboard, each intersection and the filter media are closely connected, which enhances the filter's robustness and helps to maintain the flatness of the pleated filter media and the balance of the pleat spacing.
Aluminum alloy frame:
1.00mm thick aluminum profile enhanced by double-sided or single-sided galvanized protection grid support, can be repeatedly cleaned.
Optional specifications

Fetures:

1,The frame adopts a detachable design, which is convenient for replacing the filter material to achieve the reuse of the frame;
2,The composite metal mesh of the filter material is made into a folded type, which provides the largest filtering area for the airflow, and the filtering area is 5 times that of the general flat filter.
3,The filter material is made of polyester synthetic fiber, which can be cleaned and reused many times, and has a long service life.



Specification:



Filtration class G2,G3,G4(EN779),
EU2,EU3,EU4(EUROVENT)
Filtration class 75%,85%,95%
(ASHRAE52.1-1992)
Moisture resistance ≤99%RH Filter particles ≥5μm



Parameter



Model NO. Actual Size HxWxD (mm) Air Flow (m³/h) Media Area Flow (m²) Velocity (m/s)
HA42-001 594*289*46 1150 0.42 1.86
HA42-002 594*492*46 1850 0.69 1.76
HA42-003 594*594*46 2250 0.83 1.77
HA42-004 594*289*69 1300 0.47 2.10
HA42-005 594*492*69 2100 0.77 2.00
HA42-006 594*594*69 2500 0.92 1.97
HA42-007 594*289*96 1750 0.64 2.83
HA42-008 594*492*96 2850 1.05 2.71
HA42-009 594*594*96 3400 1.26 2.68






Factory show
V Shape Pleat Big Dust Holding Capacity Panel Pre Air Filters G1 G3 Efficiency 0
