Product Details:
Payment & Shipping Terms:
|
| Lock: | Electronical Lock Or Machine Lock | Material: | Stainless Steel |
|---|---|---|---|
| Name: | Clean Room Pass Box/ Transfer Window/ Pass Thru Box | Power: | 230V/50HZ |
| Warranty: | 1 Year | Original: | China |
| High Light: | Airproof Cleanroom Pass Box,Stainless Steel Cleanroom Pass Box,Mechanical Interlock Pass Box |
||

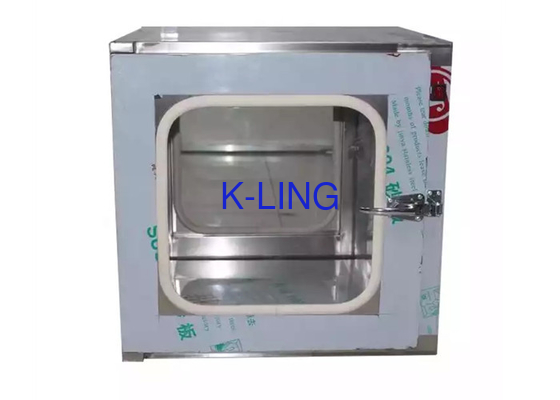

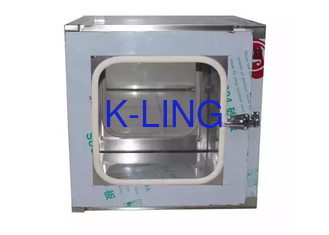

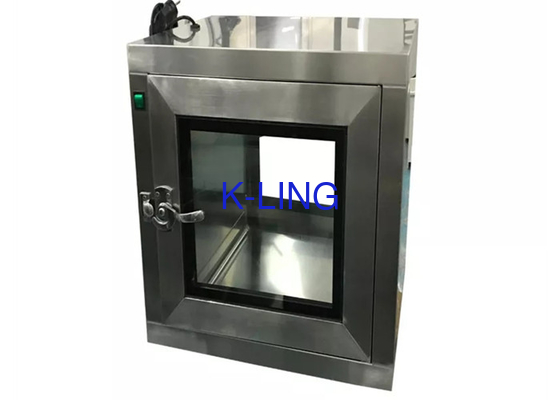

Airproof Stainless Steel Static Electronic Or Mechanical Interlock Pass Box
Feature
* Tempered glass doors provide a clear view of the internal chamber.
* The main body of the pass box is constructed of pharmaceutical-grade stainless steel.
* Pass box hardware has been custom designed for reliable service, featuring large, durable hinges, and ergonomic handles.
* Single-handed operation
* Variety of accessories and dimensions
* Manufactured for the most demanding controlled environment applications.
* Mechanical interlock is reliable, maintenance-free, fail safe and maintains cleanroom integrity by preventing both doors from
being opened at the same time.
* Excellent to avoid cross contamination
* All components are designed for maximum chemical resistance and enhanced durability for a long service life.
* The internal side walls of the pass box are constructed from a single piece of stainless steel, with coved corners for easy
cleaning.
* Tempered glass doors provide visibility into the interior.
* Frameless construction is easy to clean with no joints for contaminants to accumulate.
* 5mm thick tempered glass door.
Parameter
| Body material (external) | ①: 1.2mm cold rolled steel plate (Electrostatic paint)②: 304/316# stainless steel (mirror/sanding) |
| Working material(Internal) | 304/316# stainless steel |
| Door | 5mm tempered glass |
| Interlocking function | Mechanical interlocking/Electronic interlocking |
| Optional accessories | 1. Intercom device2. Ultraviolet germicidal lamp3. Roller device |
| Model | Outside size (W*D*H)mm | Working size(W*D*H)mm |
| HA-PB-04 | 400*400*400 | 265*310*335 |
| HA-PB-05 | 500*500*500 | 365*410*435 |
| HA-PB-06 | 600*600*600 | 465*510*535 |
| HA-PB-07 | 700*700*700 | 565*610*635 |
| HA-PB-08 | 800*800*800 | 665*710*735 |
| HA-PB-04-1 | 530*450*460 | 400*400*400 |
| HA-PB-05-1 | 630*550*560 | 500*500*500 |
| HA-PB-06-1 | 730*650x660 | 600*600*600 |
| HA-PB-07-1 | 830*750x760 | 700*700*700 |
| HA-PB-08-1 | 930*850*860 | 800*800*800 |
| Size can be customized | ||
Detail
