Vertical Air Flow Sampling Dispensing Booth In Medicine Pharmaceutical

Certification
China KeLing Purification Technology Company certification
China KeLing Purification Technology Company certification
Customer Reviews
Keling had successfully supplied us following products on 25 Oct.2017 against PO NO.M170807; Their supplied Air Filters have been working satisfactorily since installation.We are satisfied with their products.

—— SIMPOR PHARMA

Since we do coopertae with them, they always offer good quality and keep the delivery on time to us, we do appreicated for their kind support !

—— Nasir

This is to certify that we bought U type air shower tunnel, Air Shower and HEPA filter, Secondary air filter ,perfilter for our project from KeLing Purification Technology Co. Ltd, 3C01 Tian Feng Commerce Square, Mid Building, No. 133, Baiyun AV, Baiyun Disctrict , Guangzhou , GuangDong, China against Contract No: 2014/4119005942 in October 22, 201

—— IATEC,Argentina

Product arrived faster than expected and they sent something special in addition to what I ordered. Nice people and fast service!

—— Mohammed Saad

I'm Online Chat Now

Vertical Air Flow Sampling Dispensing Booth In Medicine Pharmaceutical

Vertical Air Flow Sampling Dispensing Booth In Medicine Pharmaceutical
Vertical Air Flow Sampling Dispensing Booth In Medicine Pharmaceutical Vertical Air Flow Sampling Dispensing Booth In Medicine Pharmaceutical

Large Image :  Vertical Air Flow Sampling Dispensing Booth In Medicine Pharmaceutical

Product Details:
Place of Origin: CHINA
Brand Name: K-LING
Certification: CE
Model Number: KEL-DB
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Polywood packing
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per month
Detailed Product Description
Type: Clean Room Equipment Name: Sampling Booth/ Dispensing Booth
Air Flow: Laminar/ Vertical Air Flow Trademark: KEL
Power Source: Electrical Power: 380V/50HZ
High Light:

Vertical Air Flow Dispensing Booth

,

Pharmaceutical Dispensing Booth

,

Clean Room Sampling Booth

Sampling Booth Dispensing Booth clean room equipment used in medicine pharmaceutical





Product introduction



Dispensing booth is a workspace relative to the equipment external negative pressure cleaning equipment. Is mainly used in
medicine or activated carbon materials weighing, packaging to the four levels of protection: in the disposed of dust pollution,
the operators from the material, the dust pollution, the environment of the weighbridge process of material from the personnel and the environment pollution, environment from material, equipment is is disposed air flow pattern and pressure is not affected by weighbridge open or closed.



Using Environment and Conditions:
Temperature: 5 ℃ -40 ℃
Relative humidity: less than 85%
Atmospheric pressure: 86kPa-106kPa
Power supply: AC220V, single phase, 50Hz.





Technology Parameter:





Parameter/Model

KEL-DB-800

KEL-DB-1200

Clean grade

ISO5 CLASS A

Air supply volume m /h

800

1500

Exhaust air volume m /h

150

250

Wind speed m/s

0.45m/s +_ 20%

0.45m/s +_ 20%

Working area pressure Pa

-5 to -15 Pa

Noise dB(A)

<72dB(A)

Illumination LUX

≥300 Lux

>300LUX

power supply

220V 50Hz

AC220V/50Hz

Rated power consumption

350W

550W

Weight kg

40

80

Outer dimension mm

W900*D800*H2000

W1300*D850*H2000

Working dimension mm

W800*D500*H800

W1200*D600*H800

Operation side

Isolation gate

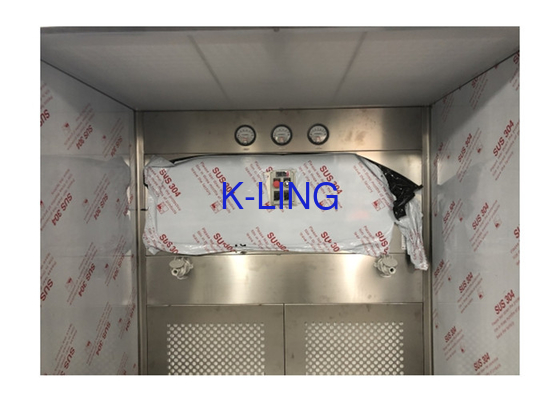

Vertical Air Flow Sampling Dispensing Booth In Medicine Pharmaceutical 0

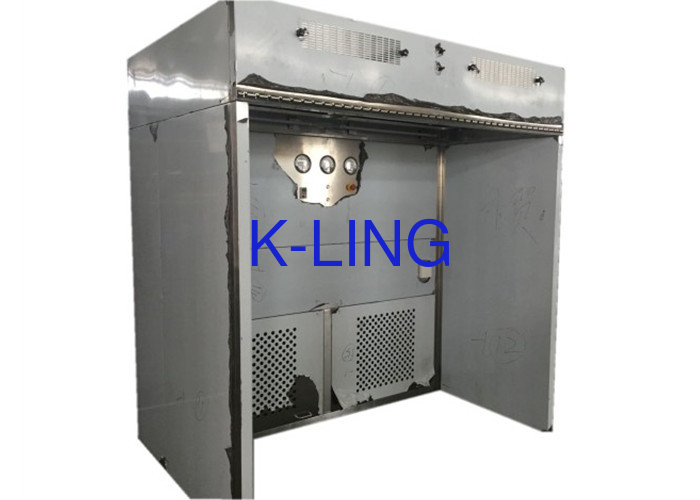

Vertical Air Flow Sampling Dispensing Booth In Medicine Pharmaceutical 1





ABOUT US :



GuangZhou HaoAir Purification Technology Co., Ltd is a professional manufacturer in air purification field for many years in China. Our products with good quality, reasonable prices and custom design.

Our main products include the cleanroom air shower , cargo air shower , static pass box , dynamic pass box , dispensing booth , vertical / horizontal laminar air flow clean cabinet , air filter,etc. AII of products can be customized.

Our customers come from Pakistan , Chile , India , Algeria , Nigeria, Italy , Czech Republic , ect.

Vertical Air Flow Sampling Dispensing Booth In Medicine Pharmaceutical 2
