| Name: | Laminar Flow Bench | Material: | Steel With Powder Coated/ SUS 304/ SUS316/ SUS201 |
|---|---|---|---|
| Air Flow: | Vertical Laminar Flow Or Horizontal Laminar Flow | Application: | Laboratory Equipment |
| Power: | 450W | Noise: | 65 DB |
| High Light: | 65dB Laminar Flow Cabinets,Horizontal Laminar Flow Cabinets,Laminar Flow Bench |
||

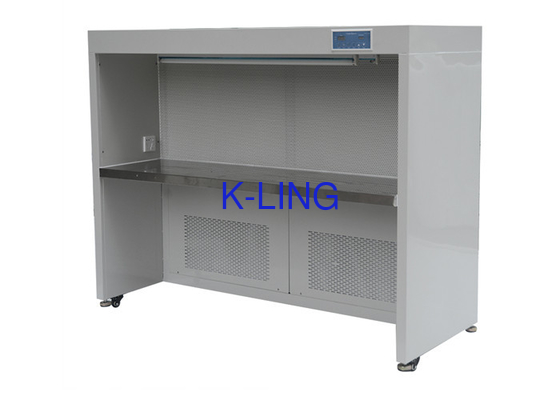

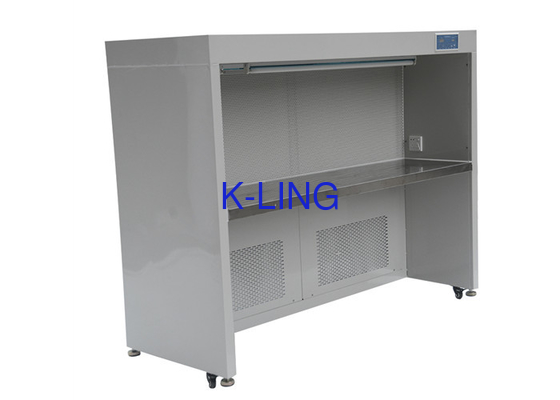

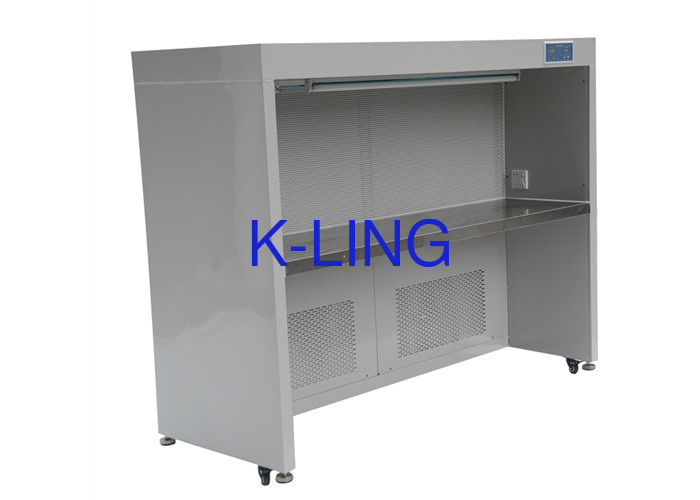

Horizontal Laminar Air Flow Workbench /Clean Cabinet Used For Clean Room
Product Description
These series adopts Unidirectional vertical airflow of purifying principles, connecting centrifugal fan of low noise with electrostatic case and Mini-pleat Hepa Filter as a complete modules.
Clean bench, as a partial (vertical or horizontal ones) clean equipment, can make the working area meet purification requirement of Class 100. These series include two structures: the first one is one-piece type, the other one is bench with self-purification separator. Custom made is available.
Features:
1. Cleanliness: Class100, conformed to International standard;
2. Horizontal and open type, easy operation;
3. Adopting changeable airflow control and low noise system, to make working area keep in ideal condition;
4. Clean bench case is electrostatic powder coated plate that is shining and neat; SS304 is used as working table.
5. Material: Cold rolled steel plate with powder coated or stainless steel (SS201 or SS304).
Product Details
Application
This series laminar flow hood is the essential equipment to carry out biotechnology research and experimental, widely used in medical, college and other industries. Provide air purification for the working area.
| Model | KEL-1000 | KEL-1350 | KEL-1610 | KEL-1915 |
| External size(mm) | W1000*L740*H1460 | W1350*L740*H1460 | W1610*L740*H1460 | W1915*L740*H1460 |
| Internal working size(mm) | W980*L480*H610 |
W1285*L480*H610 |
W1590*L480*H610 |
W1895*L480*H610 |
| Air flow(m/h) | 900 | 1200 | 1500 | 1800 |
| wind velocity | 0.45m/s±20% | |||
| Cleanliness class | Class 100 (ISO14644-1 International standard) | |||
| Mini-pleat Hepa Filter | 99.99% @ 0.3μm | |||
| Size & NO. of Hepa Filter | 915*610*69-1 |
1220*610*69-1 |
915*610*69-1 610*610*69-1 |
915*610*69-2 |
| Table material | SS304 | |||
| Noise | <50 dB | <50 dB | <50 dB | <50 dB |
| Noise testing area | The area 20cm away from the front of clean bench and 1.2 m height. | |||
| Power | AC, 220V 50/60Hz | |||
| Used for NO. of people | 1 |
1-2 |
2-3 |
3-4 |
Parameters for Vertical Clean Bench:
| Model | KEL-S-1000 | KEL-S-1350 | KEL-S-1640 | KEL-S1950 |
| External size(mm) | W1000*L650*H1750 | W1350*L650*H1750 | W1640*L650*H1750 | W1950*L650*H1750 |
| Internal working size(mm) | W820*L610*H600 |
W1270*L610*H600 |
W1560*L610*H600 |
W1870*L610*H600 |
| Air flow(m/h) | 900 | 1100 | 1500 | 1800 |
| wind velocity | 0.45m/s±20% | |||
| Cleanliness class | Class 100 (ISO14644-1 International standard) | |||
| Mini-pleat Hepa Filter | 99.99% @ 0.3μm | |||
| Size & NO. of Hepa Filter | 880*570*69-1 |
1170*570*69-1 |
915*570*69-1 610*570*69-1 |
915*610*69-2 |
| Table material | SS304 | |||
| Noise | <50 dB | <50 dB | <50 dB | <50 dB |
| Noise testing area | The area 20cm away from the front of clean bench and 1.2 m height. | |||
| Power | AC, 220V 50Hz | |||
| Used for NO. of people | 1 |
1-2 |
2-3 |
3-4 |
