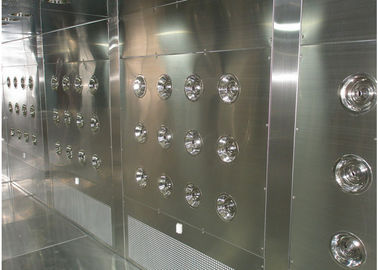

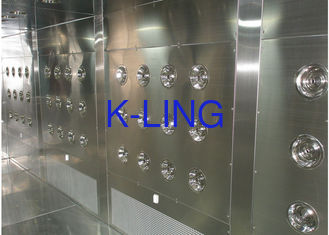

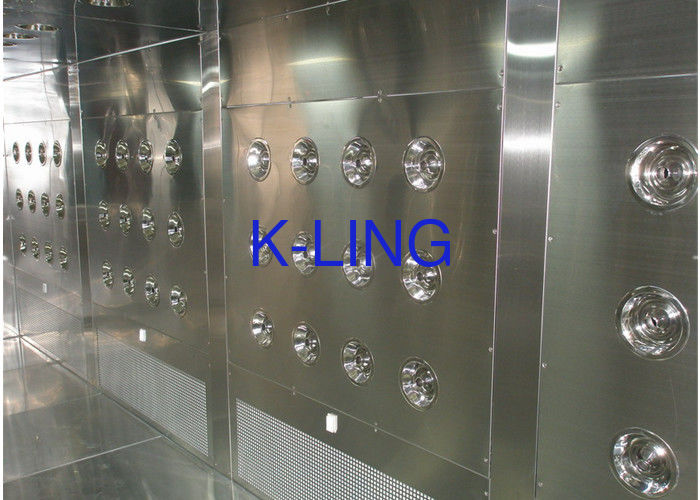

Customized Air Shower Tunnel With Automatic Sliding Door And PLC Control System

Customized Air Shower Tunnel With Automatic Sliding Door And PLC Control System

Quicky Detail :

External Size: 1300x4000x2200 mm

Internal size :  800X3900X2000mm

Purification rank: Class100

HEPA filter efficiency: 99.999%@0.3um

Personal per cycle: 4-50 person

SUS nozzle:64pcs

Blower way: two size blower

Air speed :>25m/s

Power: 380V/50HZ

Introduction:

Z type/L type Door Air Shower tunnel  it because of special civil structure need air shower door in different ways opening.

Customize Air Showers tunnel:

K-ling can custom manufacture air showers to suit your application, typical modifications including:

1: Customize air showers modified dimensions.
2: Customize air showers modified air blow direction such as vertical blow air or three side blow air

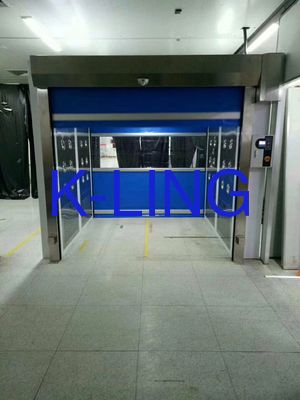

3: Automatic sliding door with IR sensor for hands-free operation
4: Multiple modules can be ordered to form 1 tunnel system.
5: L Shape, U shape, S shape, T Shape entry profiles

Applications:   Semiconductor plant, microelectronics plant, bio-pharmaceutical plant,

 Food industry,Aerospace,Life sciences,Biotechnology,Medical devices
Plastic injection module,Electronics assembly,Hospital pharmacy and so on.

operating features :

1: Completely self-contained, pre-wired, fully equipped Air Shower Tunnel systems help solve

      decontamination problems
2: HEPA filter/blower modules (rated 99.97% efficient @ 0.3 micron particles)
     wash personnel with Class 100 air to dislodge and remove particles

     Solid-state microprocessor panel provides programmable control over access door operation
 3: Interlocking doors minimize contamination, release automatically in the event of power failure
      Fluorescent lighting is housed in the ceiling for minimal turbulence
 4: Available in white epoxy-finished CR steel, stainless steel, or combination of
       CR steel and stainless steel to meet various cleanroom requirements
 5:  Variety of sizes and door configurations
 6:  Economical to operate, easy to maintai

 7:  Microelelctrincs control system with LED display for the shower time.

 8 :  the air shower duration time adjustable from 0-99second.

 9:  Infrared ray inductor for inside personal shower automatic from three side

10:  Human being voice remind of user progress in chamber.

11:  Emergency switch help you out of trouble, Comply with CE Test

Parameter:

Customer’s design is available.

Factory test:

All of equipment is individually factory tested for safety and performance

in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.

Factory test include:

-- functional test and visual inspection

-- electrical safety tests

-- air velocity testing

-- purification rank test (if need)

Warranty:

Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.

Consumable parts illustration:

1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.

2: HEPA filter: each one should be replacement in each half and one years.

Why you choose K-LING Company ?

Professional sales:

• We value every inquiry that you sent to us, ensure quick competitive offer.

• We cooperate with customer to bid tenders. Provide all necessory docuement.

• We are a sales team, with all techinical support from engineer team

Advantages:

1. Superior Quality

Quality is our biggest concern. We are always striving for
quality improvement from the first beginning.


2. Competitive Price
Competitive price is one of our advantages compared to others. We are always working hard to lower down the cost while still improve or keep the quality.

3. Customer first service

Focus on customization, we provide the free design by our designers.

Reply with 24 hours if any questions and pack in time for delivery.

4. All-in-one convenience

We are dedicated to give you all-in-one service. You just tell us your demand, then we will take over the following things.

5. Product diversification

We are not only undertake clean room construction, clean booth construction,etc., but also a agent to export accessories from other factory. You could always choice the suitable products in our company.

• Production / inspection report provide before shipment

• Shipping notice or insurance for you when your goods is shipped.

6: After sales service:

• We respect your feed back after receive the goods.

• We provide one year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.

Payment Term:

 T/T in advance, 30% before place the order, 70% when you see copy BL

Or 30% T/T in advance before place the order, 70% LC at sight.
