| Other Name: | Air Shower Tunnel | Application: | 50-100 Person |
|---|---|---|---|
| Material: | Inside Is SUS304,outside Is Steel With Power Coated | Anti-static Function: | 3 Sets Ion Anti-Static Device |
| Characteristic: | The Tunnel Compact With HVAC Control System | Blowing Way: | Three Side Blowing Or Two Side Blowing |
| Purification Rank: | Class 100 | Power: | 380V/50HZ |
| Cetificated: | CE | Packing: | Polywood Packing |
| High Light: | air shower system,biological clean room |
||

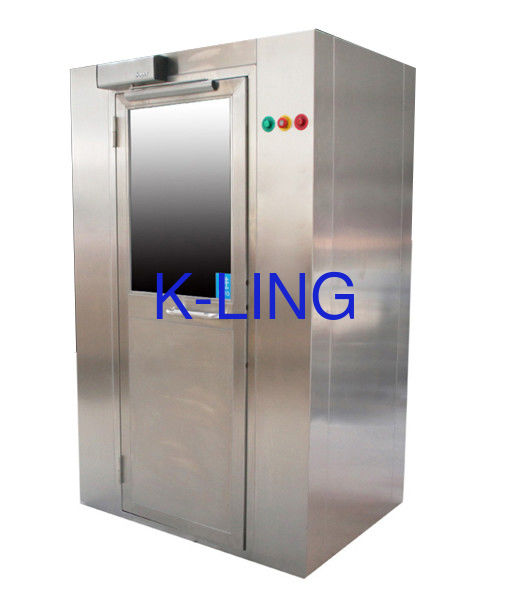

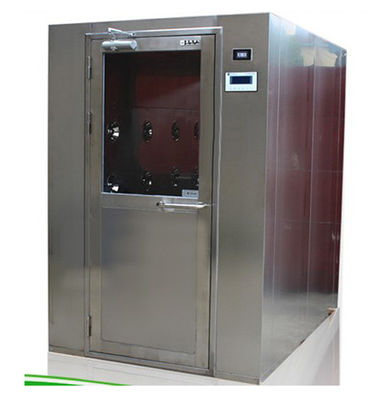

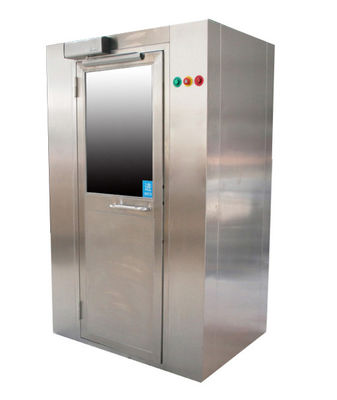

Electronic Interlock Air Shower Tunnel , 50 - 100 Person Stainless Steel Air Shower
Quicky Detail
External Size : 1200x6000x2200mm
Internal size: 800x5860x2000mm
Aluternative type : Single person with three side blowing
Purification rank: Class100
HEPA filter efficiency: 99.995%@0.3um
Personal per cycle: 50-100 person
Blower way: Three side blowing
walking type control system
Air speed :>25m/s
Applications:
It can keep pharmaceutical, semiconductor, micro-electronics production and lab animal breeding areas clean and also minimize egress of hazardous substances and allergens from the controlled environment.
Specification:
Walking Control System Characteristic:
a. Normal type is electric interlocker type : the control system run automatically, the two doors electronically interlocked,with photoelectric sensor. (One door in open state, the other door must in close state.When people enter air shower, the system will shower automatically by photoelectric sensor)
but our walking control system is the both door can be open in any time, once some one entrance the air shower tunnel , and the sensor detector anyone in here , the selfclean system will be working.
b. The door, bottom-board, nozzles are used of stainless steel, good appearance.
c. beside of this , the air shower tunnel is usd to pass cargo or a crowd person ,it is without bottom-board
Parameter :
|
KEL-ASTU6 Air shower Tunnel |
||
|
Model |
KEL-ASTU6 |
|
|
External size(mm) (WXDXH) |
1200x6000x2180 |
|
|
Work zone (mm)(WXDXH) |
800x930x1910 |
|
|
Persons per cycle |
1-2 person |
|
|
Air shower Duration |
Factory set at 12 second (adjustable) |
|
|
Material |
1: Entirety Sus304.(T=1.0/1.2mm 2: External is steel with power coated, Internal is SUS304.(T=1.0/1.2mm) 3: External is steel with power coated. Internal is SUS201. (T=1.0/1.2mm) |
|
| Control system | 1: PCL control system with LED display for the shower time. 2: The shower time from 0-99second. (Adjustable). 3: Infrared ray inductor for inside personal shower automatic. 4: Human voice prompt system. 5: with CE remark. |
|
|
Fan consumption |
0.75KWX14 set |
|
|
Air flow of fan(m3/h) |
1300m3/h |
|
|
Fan run (r/min) |
2800r/min |
|
|
Nozzle in stain less steel |
140Pcs |
|
|
Wind speed(m/s) |
> 22-27m/s |
|
|
Noise level(dB) |
<62dB |
|
|
LED Fluorescent Lamp |
20wx3 |
|
|
HEPA Filter |
Size(mm) |
630X630X69mm |
|
Efficiency |
99.99%@0.3um |
|
|
Air velocity |
1000(m3/h) |
|
|
Resistance |
<220pa |
|
|
Pre-filter |
Size(mm) |
785x385x21 |
|
Efficiency |
75% @ 5um |
|
|
Resistance |
<30 Pa |
|
|
Electrical |
Power supply |
380v/50Hz OR 380v/60Hz |
|
Customer’s design is available. |
||
Factory test:
All of equipment is individually factory tested for safety and performance
in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Factory test include:
-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA filter: each one should be replacement in each half and one years.
