KeLing Purification Technology Company Limited
-------------------------------------------------------------
Advanced. High-Qulity. Reasonable.
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Cabinet: | Stainless Steel Cabinet | Name: | Sampling Booth/ Dispensing Booth |
|---|---|---|---|
| Air Flow: | Laminar/ Vertical Air Flow | Trademark: | KEL |
| Power Source: | Electrical | Power: | 380V/50HZ |
| High Light: | Pharmaceutical Weighing Booth,Stainless Steel Weighing Booth,Electrical Laminar Flow Clean Booth |
||

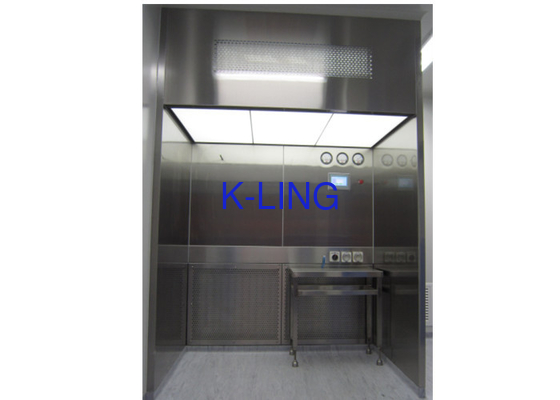

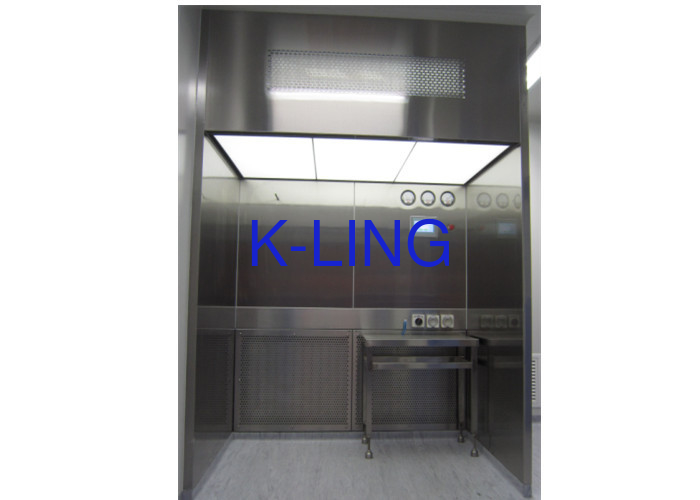

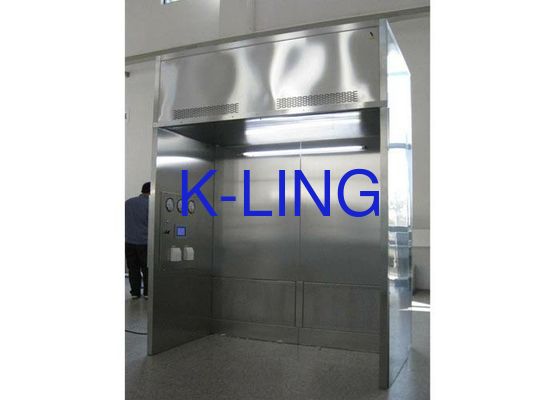

Stainless Steel Pharmaceutical Weighing Booth/ Laminar Flow Clean Booth
Product introduction
This is a clean room full service construction under GMP request. A Cleanroom or clean room is an environment, typically used in manufacturing or scientific research, that has a low level of environmental pollutants such as dust, airborne microbes, aerosol particles and chemical vapors. More accurately, a cleanroom has a controlled level of contaimination that is specified by the number of particles per cubic meter at a specified particle size. To give perspective, the ambient air outside in a typical urban environment contains 35,000,000 particles per cubic meter in the size range 0.5um and larger in diameter, corresponding to an ISO9 cleanroom, while an ISO1 cleanroom allows no particles in that size range and only 12 particles per cubic meter of 0.3um and smaller.
Using Environment and Conditions:
Temperature: 5 ℃ -40 ℃
Relative humidity: less than 85%
Atmospheric pressure: 86kPa-106kPa
Power supply: AC220V, single phase, 50Hz.
Technology Parameter:
| Item No. | KEL-DB 1500 | KEL-DB 2600 | KEL-DB 2800 | KEL-DB 1500 |
| Material | SUS 304 Fingerprint Proof | |||
| Roof | Uniform flow film | |||
| Power | AC 380V/3ph+1N+1E | |||
| Clean Class | ISO CLASS 5 (100 class) | |||
| Outter Size (W x D x H) | 1500 x 1500 x 2600 mm | 1900 x 2600 x 2600 mm | 6100 x 2800 x 2900 mm | 1500 x 1500 x 2600 mm |
| Inner Size (W x D x H) | 1400 x 1000 x 2000 mm | 1800 x 1800 x 2000 mm | 6000 x 2200 x 2200 mm | 1400 x 1000 x 2000 mm |
| Efficiency | G4(EN779) | G4(EN779) | G4(EN779) | G4(EN779) |
| F8(EN779) | F8(EN779) | F8(EN779) | F8(EN779) | |
| H14(EN1822) | H14(EN1822) | H14(EN1822) | H14(EN1822) | |
| Working Size (L x W x H) | 800*600*800 mm | 1200*600*800 mm | N.A | 800*600*800 mm |
| Service Rating | 2.4 kW | 4.6 kW | 11.2W | 3.2 kW |
| Average Wind Velocity | 0.36m/s~0.54m/s | |||
| Touch Screen | Siemens | |||
| PLC | Siemens | |||
| PAO Test Size | Φ8MM | |||
| MANOMETER | DWYER | |||
| Operation Separate | PC 10” glove | |||
| Air Velocity Transducer | 0-1 m/s | optional | ||
| Light | ≥400 Lux | ≥300 Lux | ||
| Anti-hazard classificaiton | N.A | EX d II BT4 | ||
| Outlet | 220V/1P,10A IP66 | 220V/1P,10A EX dII BT4 | ||
ABOUT US :
GuangZhou HaoAir Purification Technology Co., Ltd is a professional manufacturer in air purification field for many years in China. Our products with good quality, reasonable prices and custom design.
Our main products include the cleanroom air shower , cargo air shower , static pass box , dynamic pass box , dispensing booth , vertical / horizontal laminar air flow clean cabinet , air filter,etc. AII of products can be customized.
Our customers come from Pakistan , Chile , India , Algeria , Nigeria, Italy , Czech Republic , ect.
