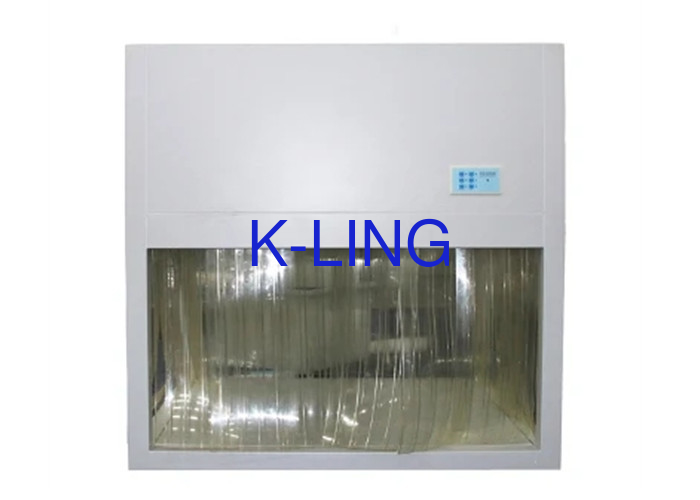

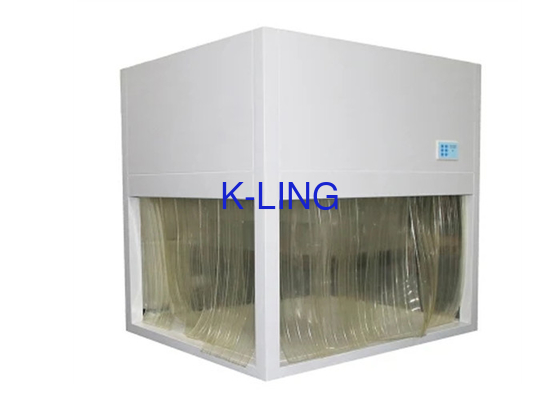

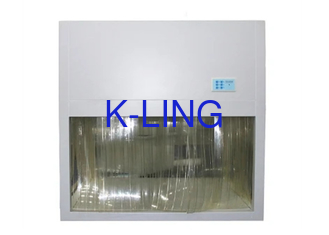

Desk Top Medical Laminar Flow Cabinet Customized Size Laminar Flow Hood
Quicky Detail:
External size: 1000x700x1800mm
Internal Size: 900x600x650mm
Purification rank: Class100
HEPA filter efficiency:99.99%- 99.999%@0.3um
Front of the clean bench with a glass
Air speed :0.3-0.6m/s
Introduction:
Laminar flow hood, also called a clean bench, is an enclosed box that is designed to create a particulate-free laminar airflow environment, preventing airborne contamination of particle sensitive objects such as laboratory samples or semiconductor wafers.
KEL's laminar flow cabinets are equipped with a fan module with HEPA or ULPA filters that cleans air and directs it in horizontal or vertical airflow towards a working area at a constant speed.
Applications:
1 . Provide an operating environment with a cleanliness level of 100.
2 . Horizontal laminar flow or vertical laminar flow models available.
3 . Ultra-thin high-efficiency HEPA air filter, which takes up little space
4 . The touch-type electric control panel can be used to steplessly adjust the air volume of the fan to ensure
that the wind speed in the working area is always in an ideal state.
5. Stainless steel table top, with plexiglass shell, can be equipped with UV remote control electrical interface.
Laminar Flow Cabinets Drawing
There are horizontal type laminar flow bench and vertical laminar flow bench design drawing.
Technical Parameter
| MODEL | KEL -VCB-2 | ||
|
External size (mm) |
1200x700x1800mm | ||
|
Work zone (mm) |
1100x650x600mm | ||
| Purification rank | FS209E 100Rank | ||
| Rating airflow(m3/h) | 1800m3/h | ||
| Filtration efficiency | More than 99.99%@0.3um H13-H14 | ||
| Average wind speed | 0.3-0.6m/s | ||
| Intensity of illumination | >300lx | ||
| pressure gauge | America Dwyer pressure watch 1 pcs | ||
| UV Light | 1 pcs | ||
| Fluorescent lamp | 30Wx1 | ||
|
Material |
1:Entirety Sus201/304. |
||
| Power | 450w | ||
| Noise | <65dB | ||
| Power supply | 110v/ 60HZ 220V-240V AC 50HZ | ||
Customer’s design is available.
