Medical Positive Pressure Horizontal Laminar Flow Cabinets With HEPA / ULPA Air Filter

Medical Positive Pressure Horizontal Laminar Flow Cabinets With HEPA / ULPA Air Filter
Medical Positive Pressure Horizontal Laminar Flow Cabinets With HEPA / ULPA Air Filter

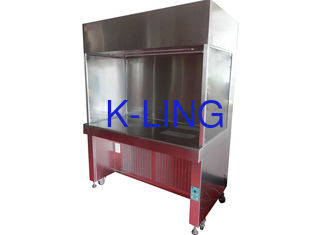

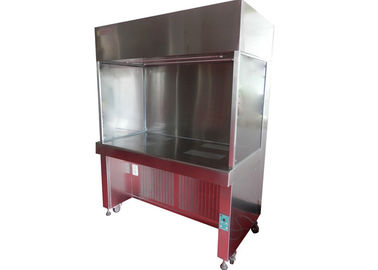

Large Image :  Medical Positive Pressure Horizontal Laminar Flow Cabinets With HEPA / ULPA Air Filter

Product Details:
Place of Origin: China
Brand Name: K-LING
Certification: CE,
Model Number: KEL-HCB-3
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 500Sets/month
Detailed Product Description
Cabinet Material: Stainless Steel 304/306 Table Material: Sus304
Air Flow Direction: Horizontal Laminar Air Flow Purification Rank: Class 100
HEPA Filter: 99.99%@0.3um Air Flow System: 100% Air Exhaust
High Light:

laminar flow clean bench


laminar air flow equipment

Medical Positive Pressure Horizontal Laminar Air Flow Cabinet With HEPA / ULPA Air Filter
Quicky Detail
External size:  1500x900x1580mm
Internal Size:  1480x600x650mm
 Rank 100 air quality (FS209E)
HEPA  or  ULPA  air filter (option)
omini directional wheel
Duplex socket
Germicidal UV Light
front Maintenance
Florescent Lighting
Operating features:
1: It is manufactured for the most demanding clean room applications, offering a combination of value, high quality construction.
 2: essentials control system:  Simple switches control the blower, lights, outlets while a mini-helic gauge measures plenum performance.
3: energy saver motor: an ultra high efficiency motor saves on your energy bills while increasing filter life
lowering your total cost of ownership.
 4: experience ergonomics: ergonomic design encourages proper posture reducing fatigue
 5: truLaminar Airflow:  unidirectional airflow moving along parallel flow lines at a constant velocity of 90 fpm
(±10%) minimizes air turbulence within the work zone lessening the chance for cross contamination.
Technical Parameter


                            KEL -HCB-3

External size (mm)


Work zone (mm)


Purification rank

                      FS209E 100Rank

Rating airflow(m3/h)


Filtration efficiency

          More than 99.99%@0.3um  H13-H14 ,U15

Average wind speed


Intensity of illumination


pressure gauge

          America Dwyer pressure watch 1 pcs

UV Light

                              1 pcs

Fluorescent lamp

                                       4 0Wx1


1:Entirety Sus201/304.
2:  External is steel with power coated, Internal is SUS304
4:  External is steel with power coated. Internal is SUS301





Power supply

               110V / 60HZ  220V-240V AC 50HZ

  Customer’s design is available.
  Keling Horizontal Laminar flow cabinet hoods provide a HEPA filtered clean work area that is ideal for operations requiring a particle-free, bacteria-free, clean air environment. The clean work area provides an excellent work space for small laboratory appliances, microscopes, pipetting, sterile drug preparations, IV admixture preparation, or any application requiring work-in-progress protection from outside potentially harmful contaminants.
Select a Horizontal Laminar flow cabinet  workstation below or contact keling to begin your free laboratory equipment consultation.
Factory test:
All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Factory test include:
-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA filter: each one should be replacement in each half and one years.
