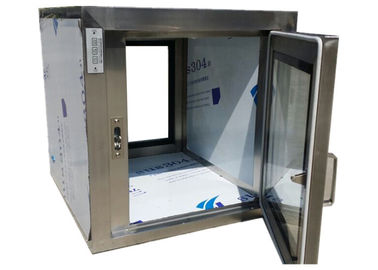

Pharmaceutical Clean Room Pass Box Through 110V / 60HZ , Softwall Cleanrooms

Pharmaceutical Clean Room Pass Box Through 110V / 60HZ , Softwall Cleanrooms

Quick Detail :

External Size: 1000x800x890mm

Internal size :800x800x800mm

Mechanical interlocker
Material: inside is SUS304/201.

Outside is steel with power coated
Material thickness : 1mm/1.2mm
UV Light : 1 pcs


Introduce :

 The cleanroom pass box is set especially in the clean room for reducing the times of opening the door
of clean room. Its main usage is to deliver small articles between clean rooms with different cleanliness or between different clean areas. Then, the unpurified air can be prevented from entering into the clean room with high cleanliness when delivering the things to control the contamination of the clean room to the lowest level.

Operating Features :

By taking electronic interlocking, the two doors of the stainless steel clean room pass
box cannot be opened at the same time.

The adopted lock is the high strength magnetic lock.
Cleanroom pass box can bear the load of 60kg.

The two doors of the product are set with transparent visible observation windows with round corners. They are flat and smooth without welding spot.
The embedded design makes the doors and the body of the product at the same plane.

The PVC plastic sealing strip is also available with good sealing performance.

The soft contact control type switches of the two doors control the door lock and ultraviolet lamp respectively.
Meanwhile, the bottom corners of the interior of the product are designed with the arc of 45 degrees.
With a nice interior available,

Cleanroom pass box  can be cleaned easily. In addition, a matched ultraviolet lamp tube can be provided with the product for free.


Technical Parameter:


Application :

Cleanroom pass box has a wide application range in the fields of micro fabrication technology,
biological laboratory, pharmacy, hospital, food production, LCD, electron and so on.


Factory test:

All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Factory test include:
--functional test and visual inspection
--electrical safety tests
--air velocity testing
--purification rank test (if need)


Warranty:

Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.


Consumable parts illustration:

1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.

2: HEPA filter: each one should be replacement in each half and one years.


Payment Term:

 T/T in advance, 30% before place the order, 70% when you see copy BL

Or 30% T/T in advance before place the order, 70% LC at sight.
