Full Welded 304 Ss Clean Room Pass Through Box With Mechanical Interlocker

Certification
China KeLing Purification Technology Company certification
China KeLing Purification Technology Company certification
Customer Reviews
Keling had successfully supplied us following products on 25 Oct.2017 against PO NO.M170807; Their supplied Air Filters have been working satisfactorily since installation.We are satisfied with their products.

—— SIMPOR PHARMA

Since we do coopertae with them, they always offer good quality and keep the delivery on time to us, we do appreicated for their kind support !

—— Nasir

This is to certify that we bought U type air shower tunnel, Air Shower and HEPA filter, Secondary air filter ,perfilter for our project from KeLing Purification Technology Co. Ltd, 3C01 Tian Feng Commerce Square, Mid Building, No. 133, Baiyun AV, Baiyun Disctrict , Guangzhou , GuangDong, China against Contract No: 2014/4119005942 in October 22, 201

—— IATEC,Argentina

Product arrived faster than expected and they sent something special in addition to what I ordered. Nice people and fast service!

—— Mohammed Saad

I'm Online Chat Now

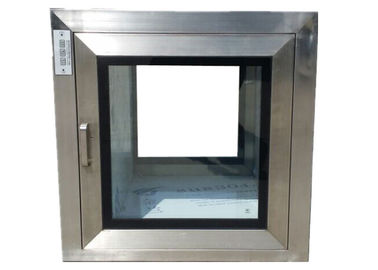

Full Welded 304 Ss Clean Room Pass Through Box With Mechanical Interlocker

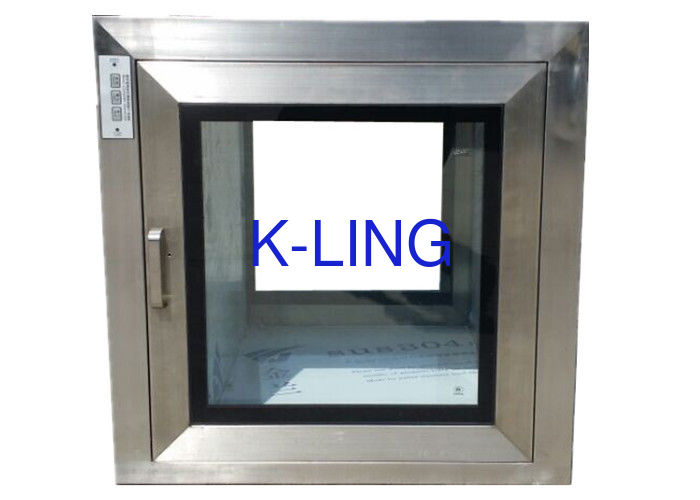

Full Welded 304 Ss Clean Room Pass Through Box With Mechanical Interlocker

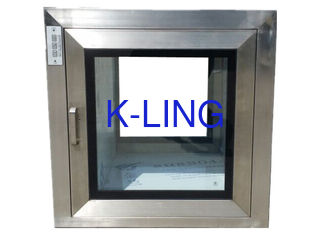

Full Welded 304 Ss Clean Room Pass Through Box With Mechanical Interlocker

Large Image :  Full Welded 304 Ss Clean Room Pass Through Box With Mechanical Interlocker

Product Details:
Place of Origin: China
Brand Name: K-LING
Certification: CE,
Model Number: KEL-PB600
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 500Set/month
Detailed Product Description
High Light:

clean room pass through box

,

Pass Thru Box

Full Welded 304 Ss Clean Room Pass Through Box With Mechanical Interlocker


Quick Detai For Cleanroom pass box  :
External Size: 700x600x690mm
internal size :600x600x600mm
Interlocker : Mechanical or electronic
Material: inside is SUS304/201. Outside is steel with power coated
Material thickness : 1mm/1.2mm
UV Light : 1 pcs
Power: 220V/50HZ


Introduction:
 The stainless steel clean room pass box adopts the SUS304 stainless steel as the material for interior and exterior product body and the two doors. The thickness of the stainless steel is 1.0/1.2 mm. Meanwhile, the product is equipped with the  ultraviolet lamp with the power of 10W and the wavelength of 254nm. It can get the ideal sterilization effect. In addition, the embedded type installation of ultraviolet lamp can reduce the contact possibility of delivered articles and ultraviolet lamp tube to ensure safe use.


operating features :

 1: C leanroom pass box is manufactured for the most demanding controlled environment applications.
 2:  All components are designed for maximum chemical resistance and enhanced durability for
     a long service life.
 3:  It is constructed of stainless steel inside, making the work zone easy to clean and endurable.
 4: Fool proof Mechanical and electric interlock are reliable, maintenance-free, maintains clean
     room integrity by preventing both door from being opened and the same time.
 5: Contamination-free transfer of materials in and out of the cleanroom
 6: Cleanroom pass box  should be eliminates unnecessary personnel entry
 7: Full range of sizes meets any application
 8: Stainless steel doors, latches and hinges extend service life—a must in a production environment!
10: Material options accommodate many application requirements, from chemical resistance to
      static control to fire safety.
 11: Fully-welded type 304 finish stainless steel construction
 12: Smooth-ground crevice-free continuous seam welds throughout the interior and exterior
 13: Service access via removable flush mount side panels secured by hex head stainless steel hardware


Technical Parameter:

      MODEL

  KEL-PB500

KEL-PB600

KEL-PB750

External size (mm)
(WXDXH)

700x500x590

800x600x690

950x750x840

Internal size (mm)
(WXDXH)

500x500x500

600x600x600

750x750x750

Material

1: Entirety Sus201/304.
2: External is steel with power coated, Internal is SUS304.
3: External is steel with power coated. Internal is SUS301.

Material thickness

1.0/1.2/1.5mm

1.0/1.2/1.5mm

1.0/1.2/1.5mm

Glass window size

350x350x8

395x395x8

480x480x8

Interlocker

Mechanical or electronic for your choose


 Note :

 Cleanroom pass box allow products to enter a cleanroom without human traffic that
increases particle loads and slows operations. Clean Air Products offers a broad range of
pass-thru cabinets, and our staff of experts will ensure you get the best product for your needs.


Consider the following options in making your selection:


Wall or Floor Mount?

Wall-mount models can be positioned at a comfortable standing height;
floor-mount models include a low-profile ramp to allow carts to be wheeled into the chamber.
Special mounting hardware is included for each model. Order support brackets for larger
wall-mount models (see illustration above). Your wall cutout should be .5" (13 mm) larger
than the overall height and width of your chamber.

Pass-Through Chamber Material?

Select among seven standard materials. Others (including
polycarbonate and dissipative polycarbonate) are also available.

Sliding Doors?

These easy-open doors eliminate clearance requirements.
 Reinforced Doors—Plastic cabinets come with stainless steel reinforced door frames on a standard basis.

Other cleanroom pass box Through Options:

it is  include a filter/blower module, shelves (with electropolished
stainless steel racks), illuminator, and grounding terminals.

Factory test:

All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Factory test include:
-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)


Warranty:

Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.


Consumable parts illustration:

1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.

2: HEPA filter: each one should be replacement in each half and one years.



Payment Term:

 T/T in advance, 30% before place the order, 70% when you see copy BL
Or 30% T/T in advance before place the order, 70% LC at sight.
