316 Stainless Steel Dust Free Cleanroom Pass Box With CE Certification

Certification
China KeLing Purification Technology Company certification
China KeLing Purification Technology Company certification
Customer Reviews
Keling had successfully supplied us following products on 25 Oct.2017 against PO NO.M170807; Their supplied Air Filters have been working satisfactorily since installation.We are satisfied with their products.

—— SIMPOR PHARMA

Since we do coopertae with them, they always offer good quality and keep the delivery on time to us, we do appreicated for their kind support !

—— Nasir

This is to certify that we bought U type air shower tunnel, Air Shower and HEPA filter, Secondary air filter ,perfilter for our project from KeLing Purification Technology Co. Ltd, 3C01 Tian Feng Commerce Square, Mid Building, No. 133, Baiyun AV, Baiyun Disctrict , Guangzhou , GuangDong, China against Contract No: 2014/4119005942 in October 22, 201

—— IATEC,Argentina

Product arrived faster than expected and they sent something special in addition to what I ordered. Nice people and fast service!

—— Mohammed Saad

I'm Online Chat Now

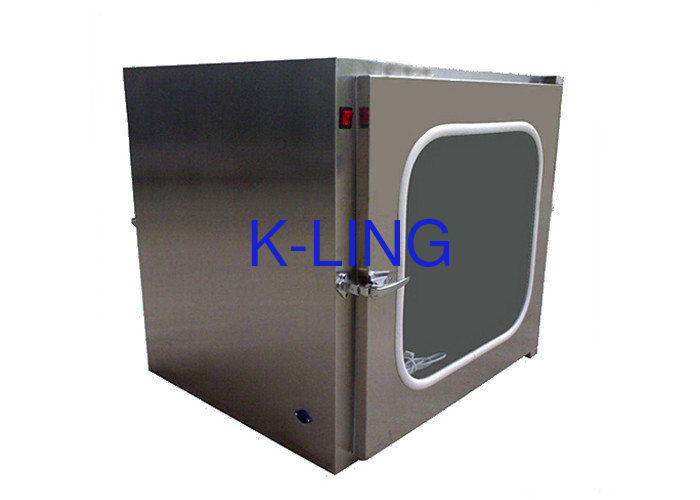

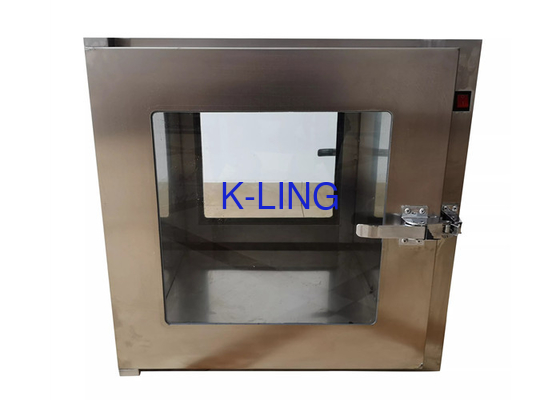

316 Stainless Steel Dust Free Cleanroom Pass Box With CE Certification

316 Stainless Steel Dust Free Cleanroom Pass Box With CE Certification
316 Stainless Steel Dust Free Cleanroom Pass Box With CE Certification 316 Stainless Steel Dust Free Cleanroom Pass Box With CE Certification

Large Image :  316 Stainless Steel Dust Free Cleanroom Pass Box With CE Certification

Product Details:
Place of Origin: CHINA
Brand Name: KEL
Certification: CE
Model Number: KEL-PB
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: plywood packing
Delivery Time: 8-15 working day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 set/ month
Detailed Product Description
Lock: Electronical Lock Material: Cold Rolled Sheet
Name: Clean Room Pass Box/ Transfer Window/ Pass Thru Box Power: 230V/50HZ
Warranty: 1 Year Original: China
High Light:

Dust Free Cleanroom Pass Box

,

316 Stainless Steel Cleanroom Pass Box

,

Laminar Flow Cleanroom Pass Box

Stainless Steel Dust Free Workship Electronic interlocking pass box With CE certification





What Is Pass Box?



The pass box is a kind of auxiliary equipment of the clean room. It is mainly used for the transfer of small items between the clean area and the clean area, between the clean area and the non-clean area, so as to reduce the number of door openings in the clean room and reduce the pollution to a minimum. The pass box is made of stainless steel plate, smooth and clean. The double doors are interlocked to effectively prevent cross-contamination, equipped with electronic or mechanical interlocking devices, and equipped with ultraviolet germicidal lamps.





Type:



Electronic interlocking pass box

Mechanical interlocking pass box

Self-cleaning pass box

Air shower transfer pass box

Ordinary pass box

Laminar flow pass box

Optional accessories: interphone, germicidal lamp and other related functional accessories.





What is the feature of pass box?



Stainless steel plate is used for the work surface of the short-distance pass box, which is smooth and wear-resistant

The work surface of the long-distance transfer window adopts an unpowered roller, which makes it easy to transfer items

The doors on both sides are equipped with mechanical interlock or electronic interlock and electronic latch device to ensure that the doors on both sides cannot be opened at the same time.

Various non-standard sizes and floor-to-ceiling pass box can be customized according to customer needs.

The wind speed at the outlet of the tuyere is as high as 20s or more.

Using a high-efficiency filter with partitions, the filtration efficiency is: 99.99%, ensuring the purification level.

Using EVA sealing material, high sealing performance.

Can be paired with call intercom.





Parameter



Body material (external) ①: 1.2mm cold rolled steel plate (Electrostatic paint)②: 304/316# stainless steel (mirror/sanding)
Working material(Internal) 304/316# stainless steel
Door 5mm tempered glass
Interlocking function Mechanical interlocking/Electronic interlocking
Optional accessories 1. Intercom device2. Ultraviolet germicidal lamp3. Roller device
Model Outside size (W*D*H)mm Working size(W*D*H)mm
KEL-PB-04 400*400*400 265*310*335
KEL-PB-05 500*500*500 365*410*435
KEL-PB-06 600*600*600 465*510*535
KEL-PB-07 700*700*700 565*610*635
KEL-PB-08 800*800*800 665*710*735
KEL-PB-04-1 530*450*460 400*400*400
KEL-PB-05-1 630*550*560 500*500*500
KEL-PB-06-1 730*650x660 600*600*600
KEL-PB-07-1 830*750x760 700*700*700
KEL-PB-08-1 930*850*860 800*800*800
Size can be customized



316 Stainless Steel Dust Free Cleanroom Pass Box With CE Certification 0
