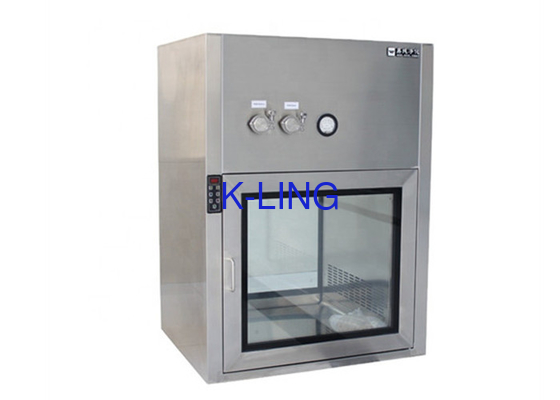

Lab Electronic Dynamic Sterile Cleanroom Pass Box With Testing Port

Lab Electronic Dynamic Sterile Cleanroom Pass Box With Testing Port
Lab Electronic Dynamic Sterile Cleanroom Pass Box With Testing Port Lab Electronic Dynamic Sterile Cleanroom Pass Box With Testing Port

Large Image :  Lab Electronic Dynamic Sterile Cleanroom Pass Box With Testing Port

Product Details:
Place of Origin: CHINA
Brand Name: KEL
Certification: CE
Model Number: KEL-PB
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: plywood packing
Delivery Time: 8-15 working day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 set/ month
Detailed Product Description
Material: Stainless Steel Name: Clean Room Pass Box
Type: Dynamic Pass Box Air Speed: 0.3m/s
Warranty: 1 Year Filter: Hepa Filter
High Light:

Sterile Cleanroom Pass Box

,

Lab Cleanroom Pass Box

,

Dynamic Cleanroom Pass Box

Lab Dynamic Sterilize Cleanroom Pass Box/ Electronic Dynamic Pass Box With Testing Port





Quick Detail



Model: KEL-DPB-300Outer

Size(mm):500(W)*360(D)*830(H)

Inner Size(mm): 300(W)*300(D)*300(H)

Filters: Pre-Filter, HEPA Filter 99.99%@0.3umHigh Efficiency

Differential Pressure Gauge

UV Light

Power supply: 220V,50Hz

Installation: It doesn't need installation.




What Is Pass Box?



The dynamic pass box is a kind of auxiliary equipment of the clean room. It is mainly used for the transfer of small items between the clean area and the clean area, between the clean area and the non-clean area, so as to reduce the number of door openings in the clean room and reduce the pollution to a minimum. The pass box is made of stainless steel plate, smooth and clean. The double doors are interlocked to effectively prevent cross-contamination, equipped with electronic or mechanical interlocking devices, and equipped with ultraviolet germicidal lamps.




Parameter



Body material (external) ①: 1.2mm cold rolled steel plate (Electrostatic paint)②: 304/316# stainless steel (mirror/sanding)
Working material(Internal) 304/316# stainless steel
Door 5mm tempered glass
Interlocking function Mechanical interlocking/Electronic interlocking
Optional accessories 1. Intercom device2. Ultraviolet germicidal lamp3. Roller device



Specifications Static Pass Box Dynamic Pass Box
Working Dimensions 400x400x400, 500x500x500, 600x600x600 or Customized
Material SS304, SUS304, SS Sheet, Thick.=1.0, 1.2mm
Glass Double Tempered Glass, Thick.=5mm
Hinge Mechanic/Electronic Interlocker System
Power Supply 220V, 50HZ
UV Light YES YES
Air Velocity N/A 0.3m/s-0.6m/s
HEPA N/A EU 14 grade with an efficiency of 99.995% for 0.3 mic. (GEL TYPE)
Prefilter N/A EU 4 grade with an efficiency of 90% for 10 mic.
Accessories N/A PAO test port Of HEPA, High Efficiency Differential Pressure Gauge






Detail

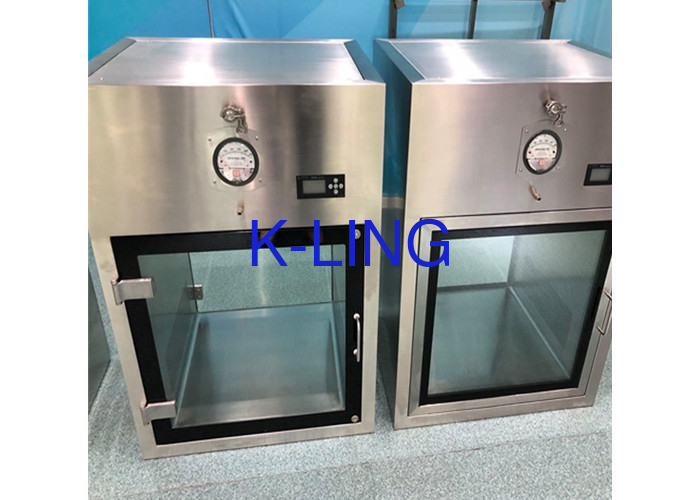

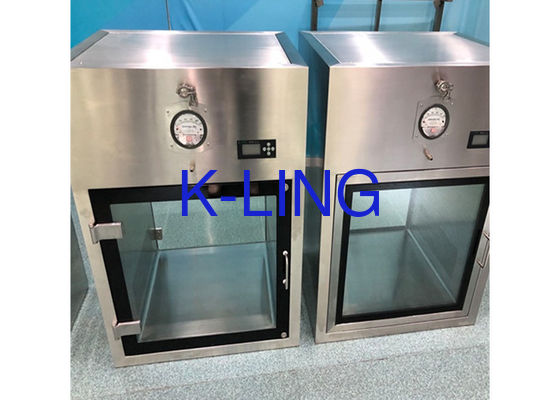

Lab Electronic Dynamic Sterile Cleanroom Pass Box With Testing Port 0

Lab Electronic Dynamic Sterile Cleanroom Pass Box With Testing Port 1

Lab Electronic Dynamic Sterile Cleanroom Pass Box With Testing Port 2
