Product Details:
|
Air Shower Tunnel Type: | Z Type Air Shower Tunnel | Outside: | SUS201 |
---|---|---|---|
Inside: | SUS304 | Function: | Automatic Induction Shower |
Application: | Modular Clean Room | Power Supply: | 415V/50HZ Or 440v/50HZ |
Highlight: | electronics clean room,biological clean room |

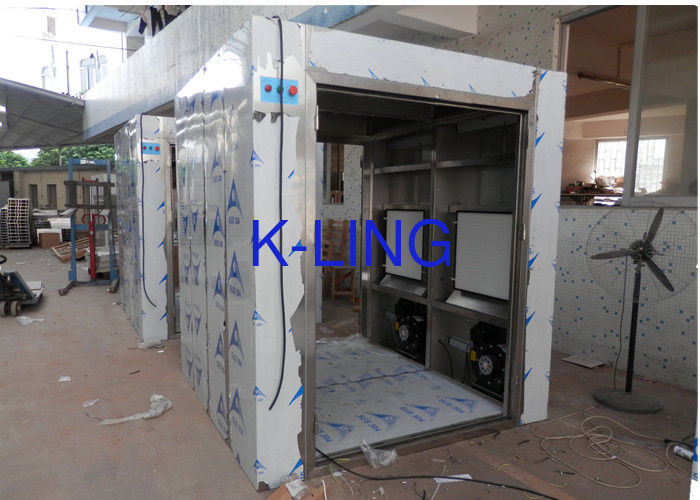

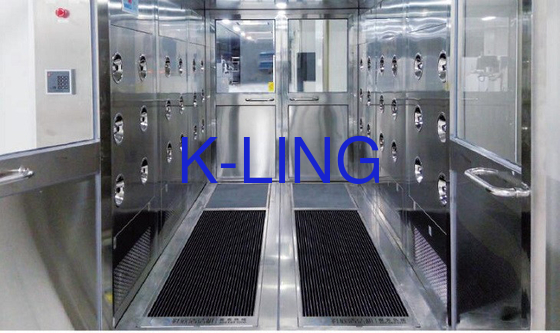

Stainless Steel Air Shower Passage / Tunnel With Microelectronics Control System
Air shower tunnel for Electronics Manufacturing Industry:
Electronics manufacturing requires a high level of cleanliness to ensure product quality and reliability.
Air shower tunnel's HEPA filtration system prevents dust and other contaminants from entering the manufacturing process,
resulting in better product quality.
Quicky detail
External Size: 2500x6000x2180mm
Internal size : 2000X5880X1910mm
HEPA filter efficiency: 99.999%@0.3um
SUS nozzle:100pcs
Blower way: three diectional blowing
Air speed :>25m/s
Power: 380V/50HZ , 380V/60HZ. 415V/50HZ , 440v/50HZ
Applications:
Electronic/ microelectronics/ precision electronic/ biological manufacturing industry/ medical
industry/ food processing/ ITO mode/ liquid crystal and conductive photoelectric suggests
that the industry/ PCB/ SMT manufacturing industry/ aerospacevoyage/ aumomobie manufacturing
industry/ dust-free painting industry and other industry,
operating features :
1 : Microelectronics control system with LED display for the shower time.
2: the air shower duration time adjustable from 0-99second.
3: Infrared ray inductor for inside personal shower automatic from three side
4: Human being voice remind of user progress in chamber.
5: Emergency switch help you out of trouble, Comply with CE Test
Parameter:
KEL-AS2500T-6 Air Shower Tunnel |
||
MODEL |
KEL-AS2500T-6 |
|
External size (mm) (WXDXH) |
2500x6000x2180mm |
|
Work zone (mm) (WXDXH) |
2000x5880x1910mm |
|
Persons per cycle |
5 Pallet goods |
|
Air shower Duration |
Factory set at 12 second (adjustable) |
|
Air shower direction |
Three side with blowing |
|
Material (Option) |
1: Entirety Sus304. 2: Entirety sus201. 3: External is steel with power coated, Internal is SUS304. 4: External is steel with power coated. Internal is SUS201. 5: color steel panel . (t=50mm) |
|
Control system |
1: microelectrionic control system with LED display for the shower time. 2: The shower time from 0-99second. (Adjustable). 3: Infrared ray inductor for inside personal shower automatic. 4: Human voice prompt system. 5: with CE remark. |
|
The power of Fan |
380V/50HZ/750W (10 set) |
|
Air flow of fan(m3/h) |
1300m3/h |
|
Fan run (r/min) |
2800r/min |
|
Nozzle in stain less steel |
72 pcs |
|
Wind speed(m/s) |
23-29m/s |
|
Noise level(dB) |
<62dB |
|
LED Fluorescent Lamp |
20wx6 |
|
HEPA Filter |
Size(mm) |
630X630X69mm |
Efficiency |
99.99%@0.3um |
|
Air velocity |
1000(m3/h) |
|
Initial resistance(pa) |
<220pa |
|
Pre-filter |
Size(mm) |
775x380x17 |
Efficiency |
75% @ 0.5um |
|
Resistance(pa) |
<30 Pa |
|
Electrical |
Power supply |
380v/50Hz |
Net power(kw) |
0.75X10 kw |
Customer’s design is available.
Introduce :
Air shower tunnel not only plays an important role in supporting purification of personnel
and things, air shower tunnel can remove personal or components' surface dust for the
operating personnel to enter the clean work environment, but also plays the role
of air brake to prevent not-yet-cleaned air from entering clean area as to ensure a
clean local environment, further to ensure the reliability of the product running
environment and the rate of finished products with good results.
Factory test:
All of equipment is individually factory tested for safety and performance
in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Factory test include:
-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)
• We care of your complain within 48hours.
Payment Term:
T/T in advance, 30% before place the order, 70% when you see copy BL
Or 30% T/T in advance before place the order, 70% LC at sight.
