Laminar Flow Ceiling FFU HEPA Fan Filter Unit 575*575mm 1175*575mm

Certification
China KeLing Purification Technology Company certification
China KeLing Purification Technology Company certification
Customer Reviews
Keling had successfully supplied us following products on 25 Oct.2017 against PO NO.M170807; Their supplied Air Filters have been working satisfactorily since installation.We are satisfied with their products.

—— SIMPOR PHARMA

Since we do coopertae with them, they always offer good quality and keep the delivery on time to us, we do appreicated for their kind support !

—— Nasir

This is to certify that we bought U type air shower tunnel, Air Shower and HEPA filter, Secondary air filter ,perfilter for our project from KeLing Purification Technology Co. Ltd, 3C01 Tian Feng Commerce Square, Mid Building, No. 133, Baiyun AV, Baiyun Disctrict , Guangzhou , GuangDong, China against Contract No: 2014/4119005942 in October 22, 201

—— IATEC,Argentina

Product arrived faster than expected and they sent something special in addition to what I ordered. Nice people and fast service!

—— Mohammed Saad

I'm Online Chat Now

Laminar Flow Ceiling FFU HEPA Fan Filter Unit 575*575mm 1175*575mm

Laminar Flow Ceiling FFU HEPA Fan Filter Unit 575*575mm 1175*575mm
Laminar Flow Ceiling FFU HEPA Fan Filter Unit 575*575mm 1175*575mm Laminar Flow Ceiling FFU HEPA Fan Filter Unit 575*575mm 1175*575mm

Large Image :  Laminar Flow Ceiling FFU HEPA Fan Filter Unit 575*575mm 1175*575mm

Product Details:
Place of Origin: CHINA
Brand Name: K-LING
Certification: CE
Model Number: KEL-FFU
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood packing
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 sets per month
Detailed Product Description
Name: Filter Fan Unit/ FFU Application: Laboratory Clean Room
HEPA Filter: 99.99%@0.3um Size: 575*575mm/ 1175*575mm
Material: Stailess Steel SUS304/201/316 /galvanized Sheet Warranty: 1 Year
High Light:

FFU HEPA Fan Filter Unit

,

Laminar Flow HEPA Fan Filter Unit

,

Ceiling HEPA Fan Filter Unit

575*575mm/1175*575mm Size Laminar Flow Ceiling FFU HEPA Fan Filter Unit





Product Description


FFU is air cleaning equipment to supply purified air to the clean room for manufacturing semiconductor, liquid crystal, etc. The installation space is the system ceiling grid. For a large clean room, the number of required FFU is from several hundreds to several thousands.





Advantages Of FFU



1. Simple direct speed control.
2. Low power consumption.
3. Low sound power level.
4. EC Fan with high reserve capacity for pre- and AMC filtration.
5. Very low design height.
6. The degree of cleanness from class 10 to class 1000 can be set and the degree of cleanness can be set at each area.





Application



Flexible and economical modular solution to equip turbulent clean rooms from ISO 8 to ISO 1 with very low space above the false ceiling. Semiconductor, electronics, flat-panel displays, disc-drive, manufacturers and optics, bio-engineering, clean lines, clean bench, clean room ,laminar flow hood ,etc.

Laminar Flow Ceiling FFU HEPA Fan Filter Unit 575*575mm 1175*575mm 0



Parameters



1. Wind speed: 0.35m/s, 0.45m/s;

2. Noise:49-63dBA;

3. Power: 220V, 50Hz;

4. Highly efficient filter (filtration efficiency is 99.99%);

5. Material: armor plate, stainless steel;

6. Adjustable speeds;

7. Excellent performance ;

8. Using a highly-efficient centrifugal air blower;

9. Durable, low noise, low vibration;

10. Free maintenance for one year

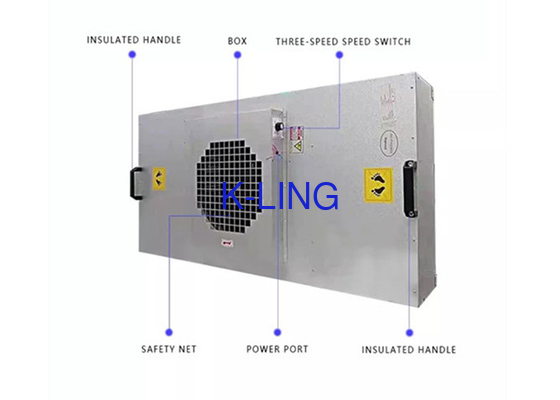

Detail



Laminar Flow Ceiling FFU HEPA Fan Filter Unit 575*575mm 1175*575mm 1







Dimensions

**Note:The above for reference,odd sizes avaliable.

Model KEL-FFU 1220 KEL-FFU 1170
Rated Flow (m³/h) 900
Noise A (dB) ≤54
HEPA Filter Efficiency ≥99.99% @ ≥0.3μm
Power Supply AC220V±10%, 1Φ, 50HZ±2HZ
Input Power (VA) 180
Dimensions L*W*H (mm) 1220-610-320 1170-570-320
HEPA Filter Size (mm) 1220-610-69 1170-570-69
Pre Filter Size (mm) 450-400-25

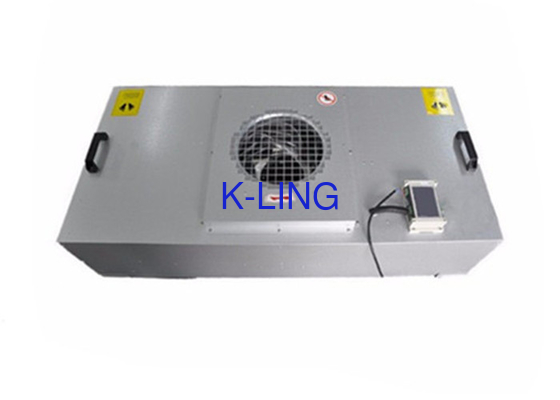

Display
Laminar Flow Ceiling FFU HEPA Fan Filter Unit 575*575mm 1175*575mm 2
Laminar Flow Ceiling FFU HEPA Fan Filter Unit 575*575mm 1175*575mm 3
