Name: | Filter Fan Unit/ FFU | Application: | Laboratory Clean Room |
---|---|---|---|
HEPA Filter: | 99.99%@0.3um | Size: | 575*575mm/ 1175*575mm |
Material: | Stailess Steel SUS304/201/316 /galvanized Sheet | Warranty: | 1 Year |
High Light: | Clean Room Fan Filter Unit,Self Contained Fan Filter Unit,900m3/h Fan Filter Unit |

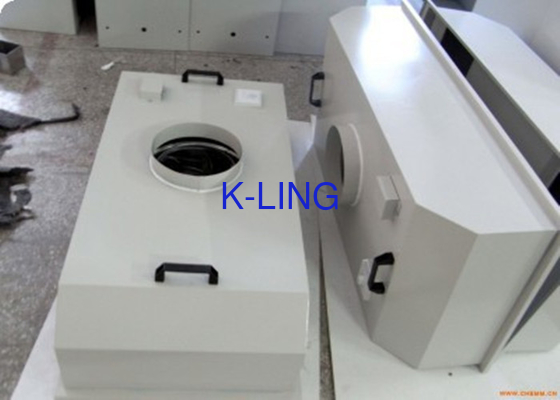

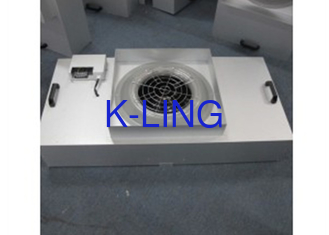

575*575mm/1175*575mm Size Self Contained Clean Booth FFU HEPA Fan Filter Unit
Introduction
Fan Filter Units (FFU) are the most energy efficient line of fan filter units (fan filter modules) on the market today. Designed specifically for use in cleanrooms, pharmacies, pharmaceutical manufacturing facilities and laboratories, the FFU delivers high volumes of HEPA filtered airflow (for 99.99% removal of contaminants) at low sound levels while reducing energy consumption by 15 to 50% versus comparable products.
Application
Flexible and economical modular solution to equip turbulent clean rooms from ISO 8 to ISO 1 with very low space above the false ceiling. Semiconductor, electronics, flat-panel displays, disc-drive, manufacturers and optics, bio-engineering, clean lines, clean bench, clean room ,laminar flow hood ,etc.
Detail
Dimensions
**Note:The above for reference,odd sizes avaliable.
Model | KEL-FFU 1220 | KEL-FFU 1170 |
Rated Flow (m³/h) | 900 | |
Noise A (dB) | ≤54 | |
HEPA Filter Efficiency | ≥99.99% @ ≥0.3μm | |
Power Supply | AC220V±10%, 1Φ, 50HZ±2HZ | |
Input Power (VA) | 180 | |
Dimensions L*W*H (mm) | 1220-610-320 | 1170-570-320 |
HEPA Filter Size (mm) | 1220-610-69 | 1170-570-69 |
Pre Filter Size (mm) | 450-400-25 |
