Product Details:
|
Blowing Way: | Vertial Blowing | Sus Nozzle: | 16 PCS |
---|---|---|---|
Air Speed: | About 25 M/s | Interlocker: | Electric Interlocker |
Purfication Rank: | Class 100 | Door: | Single Sus304 Fram With Half Glass Door |
Other Name: | Vertical High Efficient Air Shower Room | Products Name: | Vertical Air Shower Room |
Highlight: | air shower system,biological clean room |

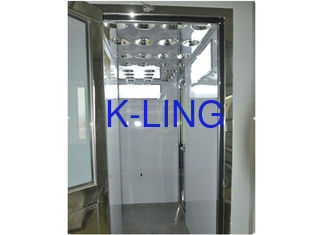

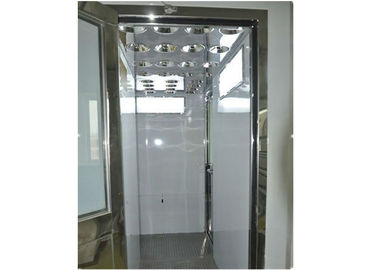

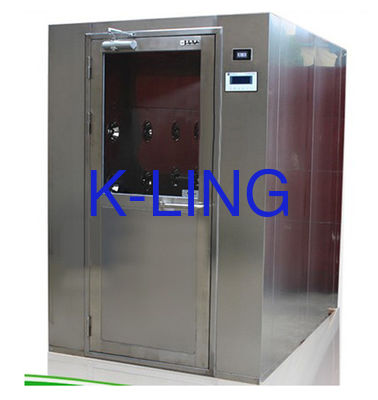

Vertical Blowing Auto Air Shower Tunnel With High Efficient Air Filter
Quicky detail
External Size: 1300x6000x2180mm
Internal size : 800X5880X1910mm
HEPA filter efficiency: 99.999%@0.3um
Personal per cycle: 20-50 person
SUS nozzle:96pcs
Blower way: three side with air blower
Air speed :>25m/s
Power: 380V/50HZ ,380V/60HZ , 440V/50HZ
Description :
Air shower tunnel is a related equipment for clean workshop and clean room, which not only removes
dust from the surface of people and goods, but also plays as a role of air lock valve to
prevent unpurified air from flowing into the clean area. It can be used with all supporting
clean room and clean workshop.
1: Alternative type: single man single side blowing air shower room, single man double sides
blowing air shower room, two men single side blowing air shower room, two men double sides
blowing air shower room
2: Material: color steel plate, cold rolled plate with plastic spraying, stainless steel plate
3: High-tech smart programmable microprocessor controller
4: Automatic control operation, two-door electronic interlocking, infrared sensors, automatic air showering
5: Customizable
Applications:
Electronic/ microelectronics/ precision electronic/ biological manufacturing industry/ medical
industry/ food processing/ ITO mode/ liquid crystal and conductive photoelectric suggests
that the industry/ PCB/ SMT manufacturing industry/ aerospacevoyage/ aumomobie manufacturing
industry/ dust-free painting industry and other industry.
Operating features :
1) Material: Stainless Steel SUS304;
2) Electronic Interlock. When A door opens, B door is locking. A, B doors can not open when blowing;
3) Emergency off button is installed in case of electricity power is suddenly lost. Once press,
two doors open;
4) LCD Display, touch-point switch to control blowing time and lamp time;
5) Infrared sensor automatic blowing, automatic stop;
6) Three-side blowing, left, right and top, stainless steel nozzles;
7) Germany Dorma door closer, stable. China KFC stores also choose this type as their door closer;
8) 360-degree rotatable nozzles are installed to keep high efficiency for blowing off particles
from personnel;
9) Have electronic interlock air shower patent.
Parameter:
KEL-AS1300T-6 Air Shower Tunnel |
||
MODEL |
KEL-AS1300T-6 |
|
External size (mm) (WXDXH) |
1300x6000x2180mm |
|
Work zone (mm) (WXDXH) |
800x5880x1910mm |
|
Persons per cycle |
6-50 person |
|
Air shower Duration |
Factory set at 12 second (adjustable) |
|
Air shower direction |
Two side with blowing |
|
Material (Option) |
1: Entirety Sus304. 2: Entirety sus201. 3: External is steel with power coated, Internal is SUS304. 4: External is steel with power coated. Internal is SUS201. |
|
Control system |
1: PCL control system with LED display for the shower time. 2: The shower time from 0-99second. (Adjustable). 3: Infrared ray inductor for inside personal shower automatic. 4: Human voice prompt system. 5: with CE remark. |
|
The power of Fan |
380V/50HZ/750W (6 set) |
|
Air flow of fan(m3/h) |
1300m3/h |
|
Fan run (r/min) |
2800r/min |
|
Nozzle in stain less steel |
72 pcs |
|
Wind speed(m/s) |
23-29m/s |
|
Noise level(dB) |
<62dB |
|
LED Fluorescent Lamp |
20wx6 |
|
HEPA Filter |
Size(mm) |
630X630X69mm |
Efficiency |
99.99%@0.3um |
|
Air velocity |
1000(m3/h) |
|
Initial resistance(pa) |
<220pa |
|
Pre-filter |
Size(mm) |
775x380x17 |
Efficiency |
75% @ 0.5um |
|
Resistance(pa) |
<30 Pa |
|
Electrical |
Power supply |
380v/50Hz |
Net power(kw) |
0.75X6 kw |
Customer’s design is available.
Principle :
Airshower tunnel air is supplied by the fan, flowing into the sir plenum chamber via low efficiency filter, and then filtered through high efficiency filter. The clean air comes out from the air shower nozzles (nozzle
angle can be adjusted), which can effectively remove people and belongings attached dust. The dust will flow back into the low efficiency air filters with air streams. The cycle achieves the purpose of air shower tunnel .
Factory test:
All of equipment is individually factory tested for safety and performance
in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Factory test include:
-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA filter: each one should be replacement in each half and one years.
Why you choose K-LING Company ?
Professional sales:
• We value every inquiry that you sent to us, ensure quick competitive offer.
• We cooperate with customer to bid tenders. Provide all necessory docuement.
• We are a sales team, with all techinical support from engineer team
Punctual delivery time:
• Production / inspection report provide before shipment
• Shipping notice or insurance for you when your goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide one year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
T/T in advance, 30% before place the order, 70% when you see copy BL
Or 30% T/T in advance before place the order, 70% LC at sight.
