Other Name: | Sampling Room& Powder Weighting Room | Internal Size: | 1500x1500x1950mm |
---|---|---|---|
Outside Size: | 1800x1600x2400mm | Purification Rank: | ISO 5 |
Door: | PVC Plastic Strip Curatin | Noise: | Less Than 62 Db |
Highlight: | pharmaceutical weighing booth,downflow booth |

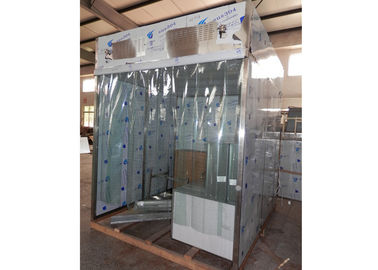

Weighting Room Or Dispensing Booth Room In Pharma And Scientific Experiment
Quicky Detail:
External Side is SUS304 (T=1.0mm)
Internal Side is SUS304 (T=1.0mm)
Negative pressure
DOP Port
Fluid Seal Mini-Pleats HEPA Air Filter
HEPA air filter : 99.995%@0.3um
Pressure Gauge
Purification rank : Class100
Introduction:
The weighting room or the dispensing booth room is one kind of clean equipment which used in pharmacy, micro-organism research and scientific experiment, it can supply the single way airflow, and part of the clean air will be circulated in the working area, the other part will be exhaust outside, it can make the working area negative pressure to prohibit cross population, it can guarantee the working area with high clean grade.
Applications:
subdivision of powder of liquids, charging and offloading materials to reactors, fluid bed dryers, granulators, filter dryers, glass ware skids and so on.
Operating features:
1: Modular. Easy-to clean rigid design with minimal joints
2: HEPA/ULPA Gel-seal down flow filter are replaceable from within the booth.
Gel-seal is more reliable than conventional gasket seals
3: Voltage-compensating blowers ensure stable air flow.
4: Magnehelic Gauges provide convenient and reliable means for monitoring gauges air flow and filter
condition.
5: Containment performance verified according to the ISPE good practice guide, assessing the particulate
containment performance of pharmaceutical equipment.
Technical Parameter :
Model |
KEL-DB1500 |
External size(mm) |
1600x1800x2400mm |
Internal size(mm) |
1500x1500x1950mm |
Cleanliness: |
Class100 |
HEPA Filter |
99.995@0.3um |
Pre-filter |
75%@5um |
Air velocity |
0.2-0.5m/s |
Noise |
57-65dB |
Material |
Stainless steel 201/304 or steel with power coated |
Power |
380V/50hz |
Standard |
(FS 209E)USA . |
Customer’s design is available.
Principles :
the air in the work shop will pass though primary filter, medium efficiency filter and was pressed
into static pressure box by centrifugal fan, after that, it will pass though the high efficiency
filter and blow through FFU, the clean air will flow by average speed over the working area, then
it forms the high clean grade working environment.
All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Factory test include:
-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA filter: each one should be replacement in each half and one years.
